Atlas Lifting and Rigging ALH 3.2 Ton Lever Chain Hoist 20 Ft. Chain Ship Hook

SKU# ALH-032-20-SH
3.3 out of 5 Customer Rating
Atlas Lifting and Rigging ALH 3.2 Ton Lever Chain Hoist 20 Ft. Chain Ship Hook, large image number 0
Atlas Lifting and Rigging ALH 3.2 Ton Lever Chain Hoist 20 Ft. Chain Ship Hook, large image number 1
Atlas Lifting and Rigging ALH 3.2 Ton Lever Chain Hoist 20 Ft. Chain Ship Hook, large image number 2
Atlas Lifting and Rigging ALH 3.2 Ton Lever Chain Hoist 20 Ft. Chain Ship Hook, large image number 3
Atlas Lifting and Rigging ALH 3.2 Ton Lever Chain Hoist 20 Ft. Chain Ship Hook, large image number 4
Atlas Lifting and Rigging ALH 3.2 Ton Lever Chain Hoist 20 Ft. Chain Ship Hook, large image number 5
Previous Next
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Delivery to -
- Est. Arrival - Est. Ship - Est. Arrival - Get it as soon as {0} Edit location Add Zip Code
Pick Up at
Store Address -
Available within 4 hours
Contact Store:
Est. Email Delivery: within 24 hours
Made In USA
  Free Shipping (Ground shipping to lower 48)
Atlas Lifting and Rigging ALH 3.2 Ton Lever Chain Hoist 20 Ft. Chain Ship Hook
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Selected Delivery Method: Shipping
Shipping
Get it as soon as {0}
Pick up in Store
Available within 4 hours
Not Available for Pick Up
Qty
Secure Checkout
Affirm
Pay as low as $55/mo.
with Affirm

Product Details

Atlas Lifting and Rigging ALH 3.2 Ton Lever Chain Hoist 20 Ft. Chain Ship Hook
Atlas Lifting and Rigging

Please follow our Community Guidelines and be kind!

Description

Atlas Lifting and Rigging ALH 3.2 Ton Lever Chain Hoist 20 Ft. Chain Ship Hook

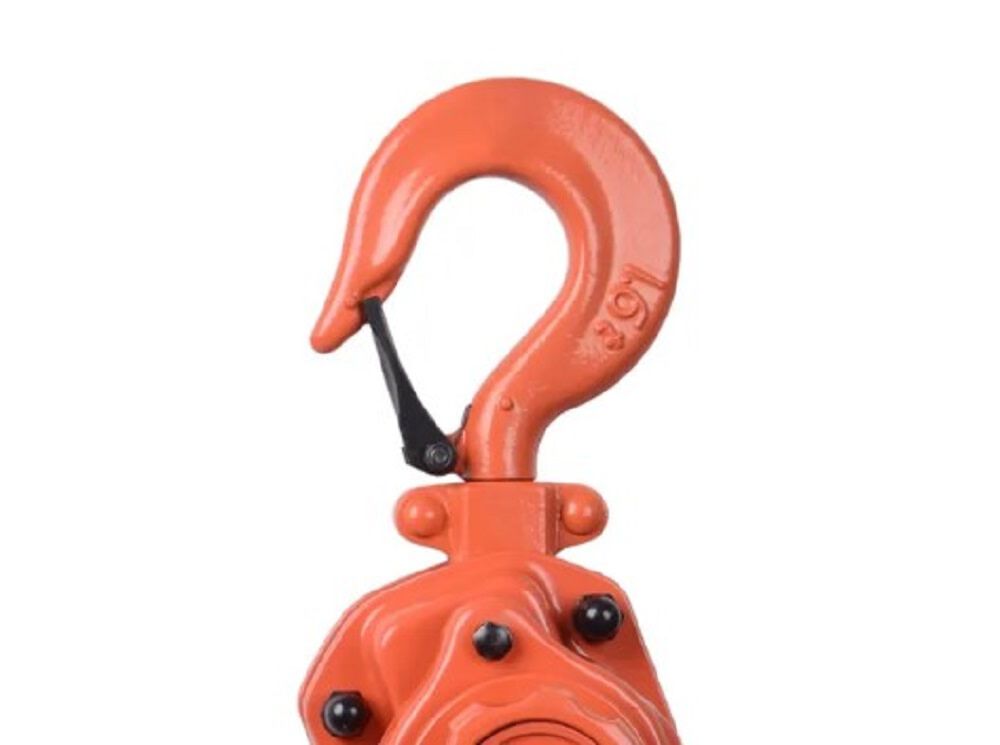

Atlas Lifting & Rigging (ALR) has designed these hoists to exceed it's rating by 150%. The safety features are: At the base and tip of each hook are permanent measuring points to check the hooks throat opening for signs of "stretching", an indication that the hoist has been overloaded and the hook should be replaced. The zinc coating on crucial parts gives it the ability to withstand harsh conditions. Quick hoist positioning allows our lever hoist to adjust without accidentally freewheeling under load. Our hoist does not have to be under load to adjust with the ratchet. Welded structural stay bolts increases strength and safety. High strength alloy side plates gives it the strongest structure in the industry. Sintered brake system gives our brake pads extraordinary strength, it won't crack, shatter or absorb moisture. Ship hook has a blunt tip for point loading and engineering to help eliminate stretched hooks for safety.

California Proposition 65 Warning.

Manuals

Warranty - PDF

Features

Zinc-coated for harsh conditions/Blue Grease for high performance
Quick-adjust free spool feature
Welded structural stay bolts
All-steel construction
Sintered brake system
Upgraded high-strength side plates
Every ALR hoist meets or exceeds OSHA & ANSI/ASME HST-3 standards
Three year warranty
Ship hook

Specifications

Capacity (Ton)
3.2 Ton
Capacity
7000 lbs
Maximum Lift Height (ft)
20
A-Frame Design
No
Brand Name
Atlas Lifting and Rigging
Assembled Depth (in)
8
Assembled Weight (lbs)
61.160000000000004
Assembled Width (in)
6.5
ASTM B30.21 Compliant
Yes
Color
Orange
Country of Origin
China
Height (in)
20.5

MFG Part # (OEM)
ALH-032-20-SH

Material
Steel
Maximum Load (lbs)
7000
Overall Length (in)
240
Package Contents
Hoist

Product Condition
New

Restrictions
CA Prop 65
Towable
No

UPC
810044341560

Warranty Type
3 Years Limited
Weight (lbs)
61.160000000000004
Weight Capacity (lbs)
7000
