Big Horn 4 Inch ABS Plastic Blast Gate with One Quick Disconnect End

SKU# 11456
5 out of 5 Customer Rating
Big Horn 4 Inch ABS Plastic Blast Gate with One Quick Disconnect End, large image number 0
Big Horn 4 Inch ABS Plastic Blast Gate with One Quick Disconnect End, large image number 1
Big Horn 4 Inch ABS Plastic Blast Gate with One Quick Disconnect End, large image number 2
Big Horn 4 Inch ABS Plastic Blast Gate with One Quick Disconnect End, large image number 3
Big Horn 4 Inch ABS Plastic Blast Gate with One Quick Disconnect End, large image number 4
Big Horn 4 Inch ABS Plastic Blast Gate with One Quick Disconnect End, large image number 5
Previous Next
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Delivery to -
- Est. Arrival - Est. Ship - Est. Arrival - Get it as soon as {0} Edit location Add Zip Code
Pick Up at
Store Address -
Available within 4 hours
Contact Store:
Est. Email Delivery: within 24 hours
Made In USA

Big Horn 4 Inch ABS Plastic Blast Gate with One Quick Disconnect End
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Selected Delivery Method: Shipping
Shipping
Get it as soon as {0}
Pick up in Store
Available within 4 hours
Not Available for Pick Up
Qty
Secure Checkout
Affirm
Pay over time
with Affirm on orders over $150

Product Details

Big Horn 4 Inch ABS Plastic Blast Gate with One Quick Disconnect End
Big Horn

Please follow our Community Guidelines and be kind!

Description

Big Horn 4 Inch ABS Plastic Blast Gate with One Quick Disconnect End

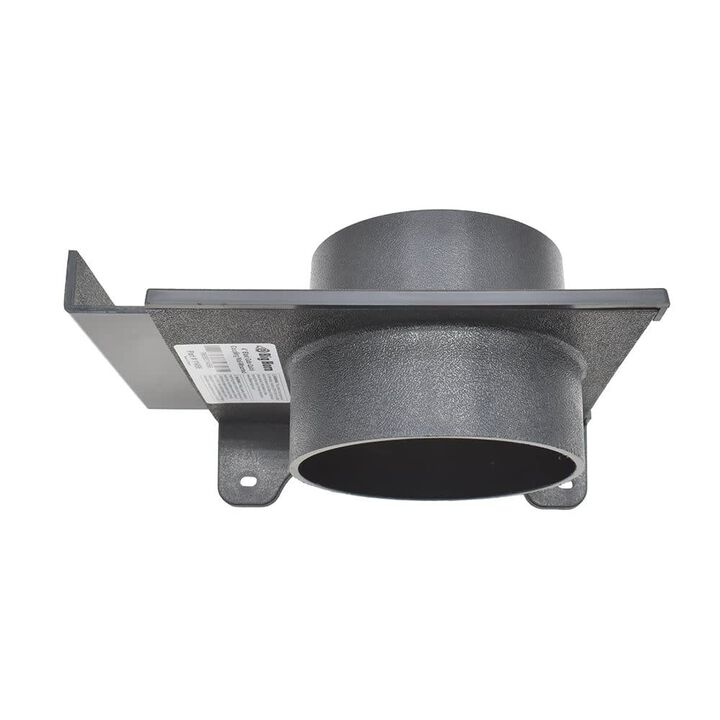

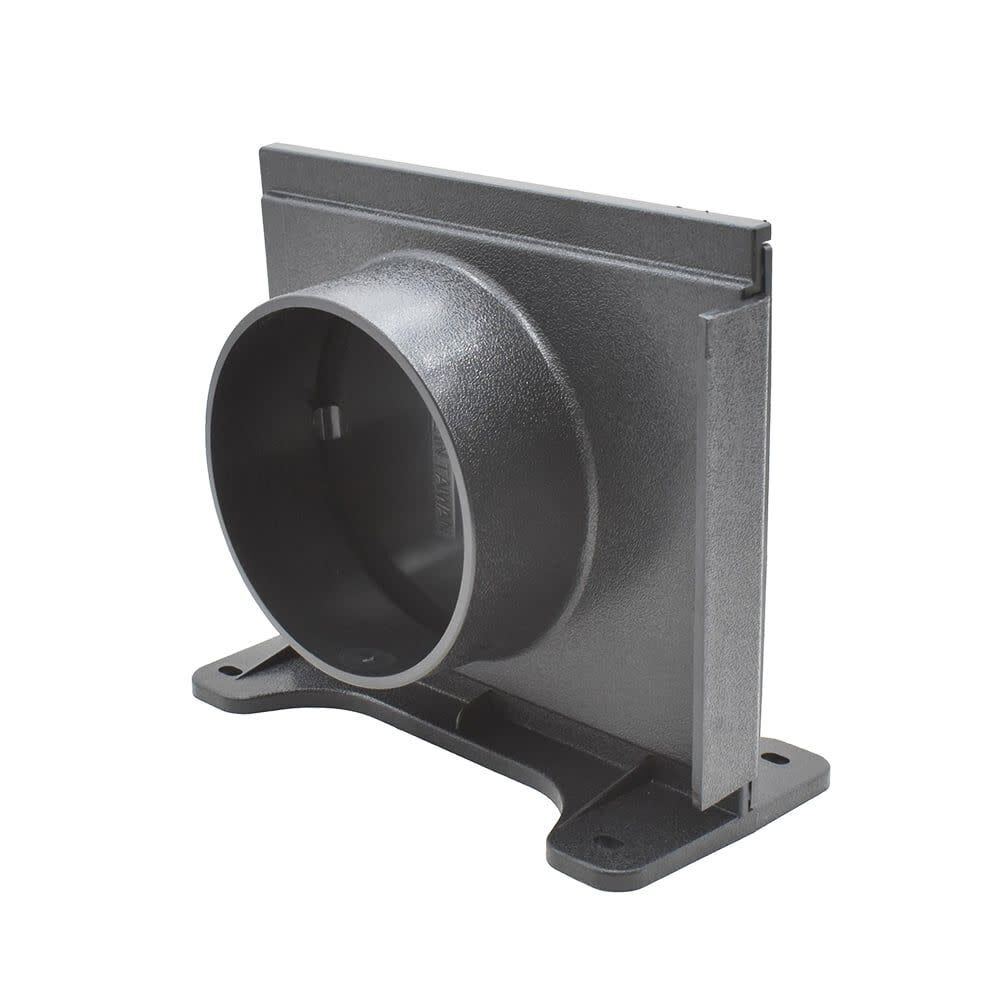

Wall mount feature on this Big Horn Blast Gate Dust Collection Fitting provides a large, 6-1/2 In. x 3-1/4 In. flange with mounting holes to attach the fitting on the wall in either the horizontal or vertical direction. Common blast gate function allows you to close one branch of your central dust collection system while you are using the other. Simple open or shut design has flat, square plate that moves inside a 3-sided frame to provide a pass-through or shut-off to connect your dust collector to your system or a branch line to one of your tools. Molded fitting has overall dimensions of 6-1/2 In. long and 5-1/2 In. wide closed; 10-1/4 In. long and 5-1/2 In. wide in the open position. The 4 In. port on either side of the gate is 1-1/2 In. long to provide room to slide quick connect fittings on it. Molded using ABS material to maintain shape and withstand woodshop environment. Unsecured blast gates can be sloppy and tedious to operate. Opening the gate often pulls the hose away from the wall. With its built-in mounting element, the Big Horn wall mounted blast gates take care of everything. Just anchor it directly to the wall for clean and stable operation.

California Proposition 65 Warning.

Features

One Port is tapered from 3.85 In. to 4.00 In. Outer Diameter & 1-1/2 In. long to provide room to slide on hose and apply a hose clamp
Allows quick connection of 4 In. flexible dust collection hose to one end without hose clamps
Made from strong 1/8 In. thick abrasion resistant ABS plastic that will withstand abrasive nature of sawdust and wood chips
Inside is smooth to allow maximum airflow
Built in stop to prevent sliding plate from coming out of housing

Specifications

Brand Name
Big Horn
Assembled Weight (lbs)
0.65
Compatibility
Dust Collection Systems
Country of Origin
Taiwan

MFG Part # (OEM)
11456

Material
ABS Plastic
Package Contents
Blast Gate

Product Condition
New

Restrictions
CA Prop 65
Size

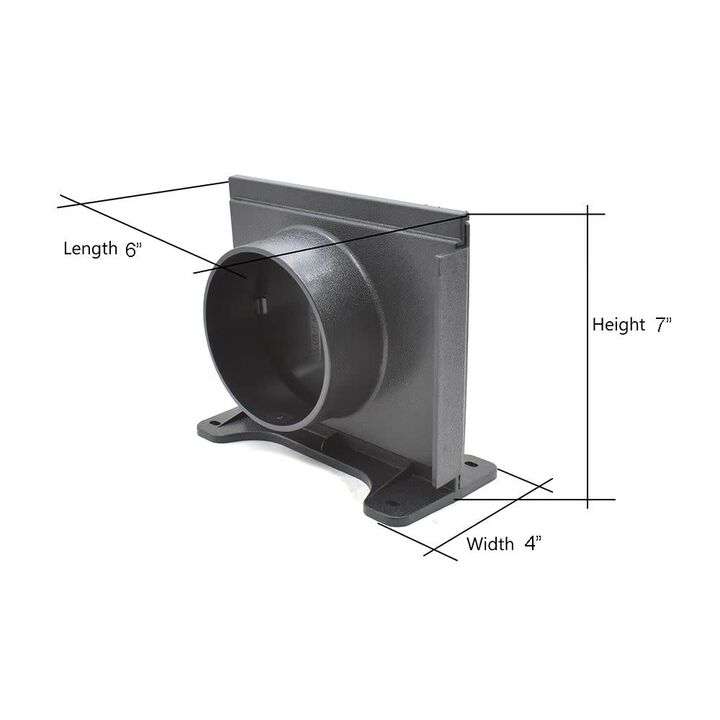

6 In Length x 4 In. Width x 7 In. Height

UPC
766565114568

Warranty Type
No Manufacturer's Warranty
Weight (lbs)
0.65
