DEWALT Dust Extractor for DCH263 1-1/8 in. SDS Plus D-Handle Rotary Hammer

Name: DEWALT Dust Extractor for DCH263 1-1/8 in. SDS Plus D-Handle Rotary Hammer
Brand: DEWALT
SKU: DWH205DH
Price: 221.99 USD
Availability: InStock

SKU# DWH205DH

DEWALT Dust Extractor for DCH263 1-1/8 in. SDS Plus D-Handle Rotary Hammer, large image number 0

DEWALT Dust Extractor for DCH263 1-1/8 in. SDS Plus D-Handle Rotary Hammer, large image number 1

DEWALT Dust Extractor for DCH263 1-1/8 in. SDS Plus D-Handle Rotary Hammer, large image number 2

DEWALT Dust Extractor for DCH263 1-1/8 in. SDS Plus D-Handle Rotary Hammer, large image number 3

Acme Tools Guarantee

Discount: Order

Min Purchase: $199

Max Discount: $100

Ends: Sep 30

Shop Offer

Qty

(Max. order of 1,000)

Secure Checkout

Product Details

DEWALT Dust Extractor for DCH263 1-1/8 in. SDS Plus D-Handle Rotary Hammer

DEWALT

Please follow our Community Guidelines and be kind!

Description

DEWALT Dust Extractor for DCH263 1-1/8 in. SDS Plus D-Handle Rotary Hammer

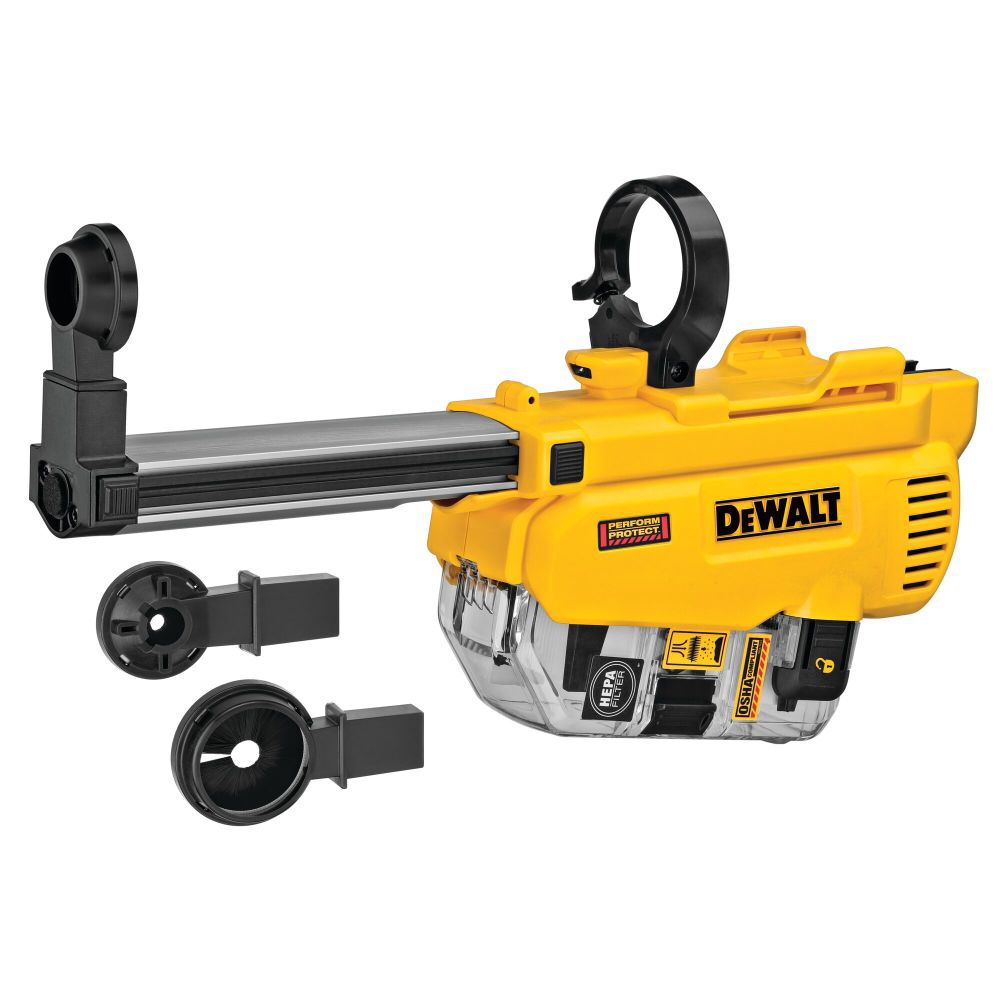

The DWH205DH is an OSHA Table 1 Compliant dust extractor for the DCH263 20V MAX* XR® Brushless 1-1/8 in. D-Handle SDS Plus Rotary Hammer. This dust extraction system features a powerful built in motor for increased suction and high-performance drilling. The 2-second power-off delay ensures that dust extraction continues after drill is switched off. The DWH205DH features three nozzle heads for maximum dust collection during the application. The included nozzles are tuned for up to 1 in. diameter bits, all stop bits up to 1.5 in. shoulder and small diameter bits up to 0.5 in. This dust extractor allows for bit lengths up to 10 in. in overall length for drilling applications. This allows users to install a wide range of anchors including pinch nails, rod hanging systems like dropins, large diameter sleeve, stud/wedge, and screw anchors. This unit includes an OSHA 1926.1153-compliant Dust Box Assembly. Equipped with a filter cleaning mechanism and a HEPA filter, it removes 99.97% of airborne particles 0.3 microns or greater.

California Proposition 65 Warning.

Features

Three replaceable optimized dust nozzle heads are tuned for up to 1 In. diameter bits, all stop bits up to 1.5 in. shoulder and small diameter bits up to 0.5 in.

Bit lengths up to 10 in. in overall length

Quick release for easy tool assembly and disassembly

Compact Inline design; rotary hammer and dust collection only 3.72 in. wide installed.

Durable clear high capacity dust box with replaceable HEPA cannister that removes 99.97% of airborne particle 0.3 microns or greater.

Easily adjusted depth stop for accurate anchor hole depths

Dust extractor mounted LED for illuminating low light work environments.

Table 1 OSHA 1926.1153-compliant

Specifications

Brand Name

DEWALT

Assembled Depth (in)

19.5

Assembled Weight (lbs)

3.42

Assembled Width (in)

10.125

California Proposition 65 Warning Required

Yes

Color

Yellow

Country of Origin

China

Height (in)

9.83

Horsepower (hp)

Length

17.8 in

MFG Part # (OEM)

DWH205DH

Meets ANSI or OSHA Standards

Number of Batteries Included

Package Contents

DWH205DH, Dust extractor for the DCH263 20V MAX* XR® Brushless 1-1/8 in. D-Handle SDS Plus Rotary Hammer.; DWH302DH, Table 1 OSHA 1926.1153-compliant dust box assembly.; Three dust nozzle heads for up to 1 In. diameter bits, all stop bits up to 1.5 in. shoulder and small diameter bits up to 1/2 in.
