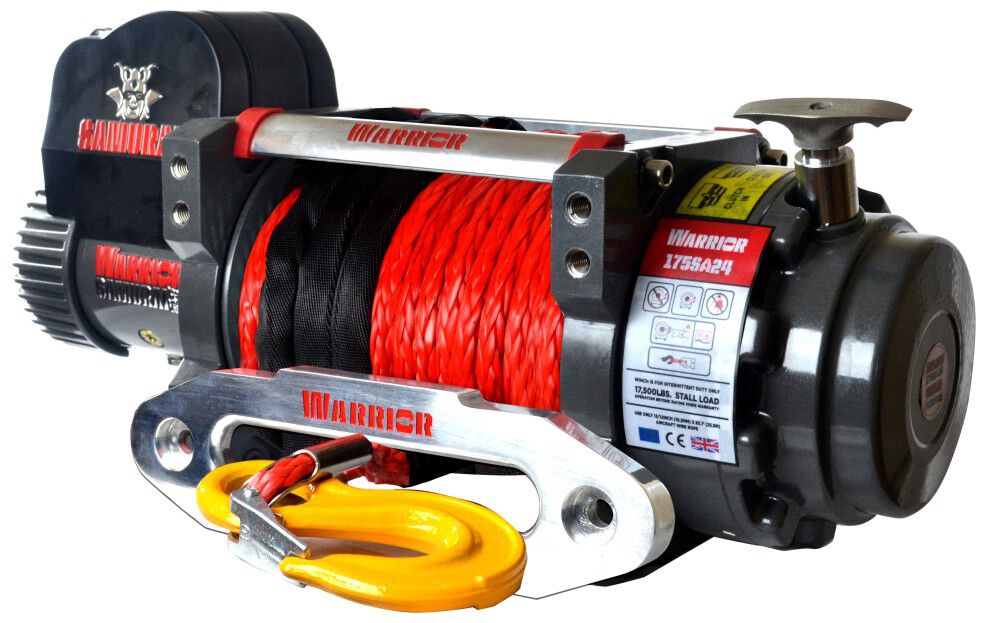

DK2 Samurai Winch Planetary Gear 17500lb with Synthetic Rope

Description

DK2 Samurai Winch Planetary Gear 17500lb with Synthetic Rope

The DK2 Warrior Samurai 17,500 lb winch is the best $ for lb winch on the market. Outstanding features includes Huge 7.0 hp high quality double sealed motor with brass fittings, heavy duty waterproof contactors, double sealed drum on maintenance free bearings, quiet, fully sealed efficient full steel planetary gearing.

Features

Laser etched extruded Aluminum tie bars, reinforced with Steel body, Double sealed motor to ensure product meets IP68 water and dust standards
3 sealed Planetary gears and maintenance free bearings provide quiet and silky smooth performance, Fully sealed 600 amp copper contactors to prevent corrosion and electrical failure
All brass high quality series wound motor prevents corrosion and extends life span of winch, Synthetic Rope
Aluminum Hawse Fairleads, Integrated Wireless Remote (12V only), Double Sealed Drum (Gearbox/Motor)
Line Pull lbs Line Speed ft/min Amp Draw 12v Amp Draw 24v 0 22.3 100 60 4000 13.1 220 130 8000 9.8 330 170 12000 5.8 450 220
Layer of Wire Line Pull lbs Rope ft 1 12000 2 9563 3 7948 4 6800
Rated Line Pull 17500 lbs Motor 12V: 7 HP Hydraulic Dis oz/r Gearing 430:1 Drum Size Dia x L 3.5 x 8.6 inch Cable Dia x L 0.47 x 1.02 inch Dimensions 24.01 x 8.5 x 10 inch Weight lbs Mounting Pattern 10 x 4.5 inch Breaking Action Auto in the drum

Specifications

Brand Name
DK2
Assembled Depth (in)
24
Assembled Weight (lbs)
148
Assembled Width (in)
8.5
Assembly Required
Yes
Color
Black Red or Gray
Country of Origin
China
Height (in)
10

MFG Part # (OEM)
S17500-SR

Material
Steel
Package Contents
Samurai Winch Planetary Gear 17500lb with Synthetic Rope

Product Condition
New

Sound Decibels (dB)
70 dBA

UPC
827518008096

Warranty Type
1 Year
Weight (lbs)
150
