Product Details

Edwards 55 Ton Ironworker 3 Phase 460v with PowerLink System

Description

Edwards 55 Ton Ironworker 3 Phase 460v with PowerLink System

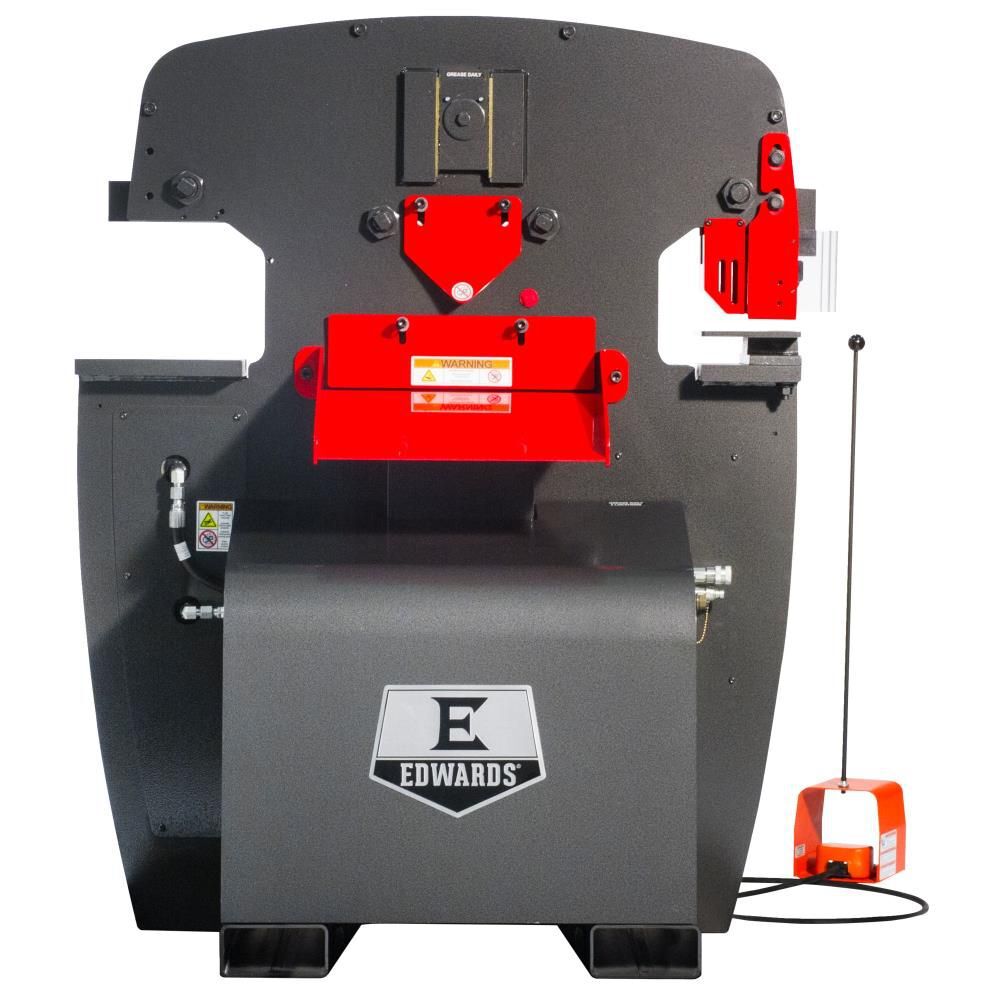

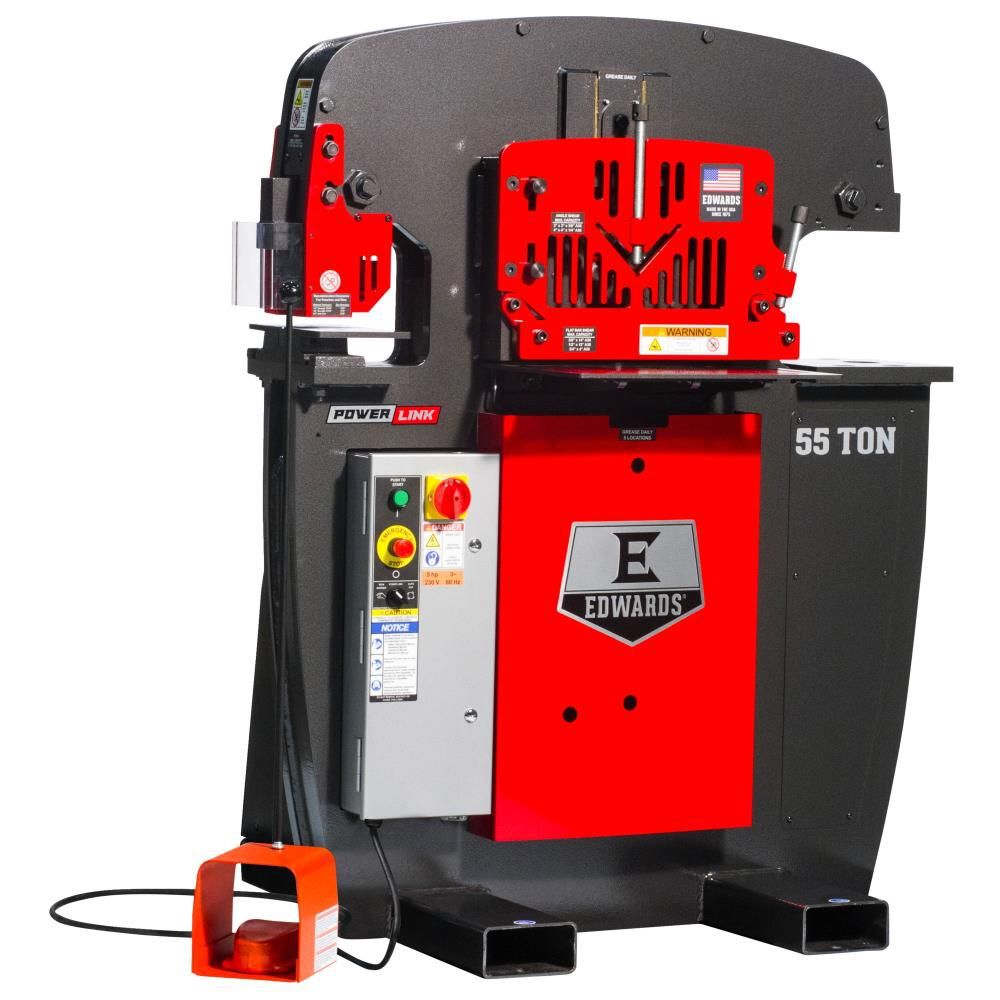

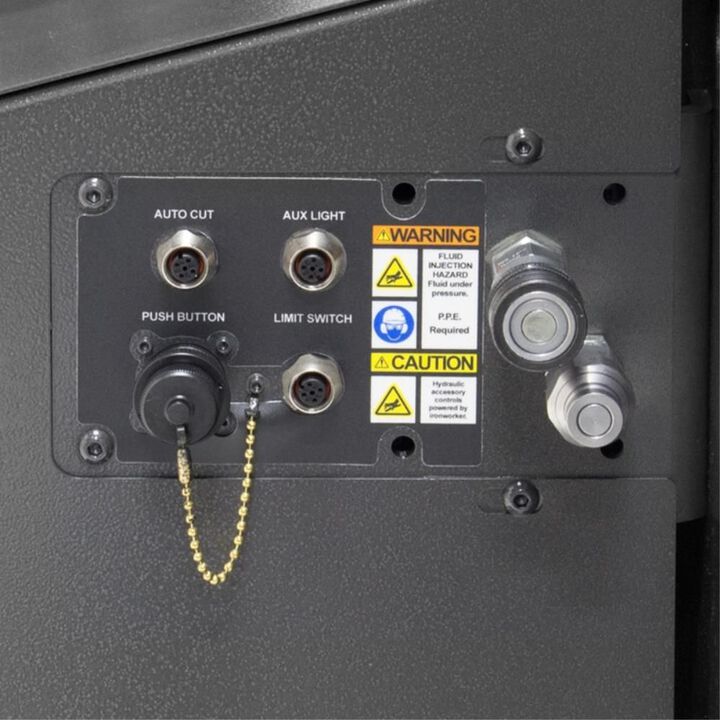

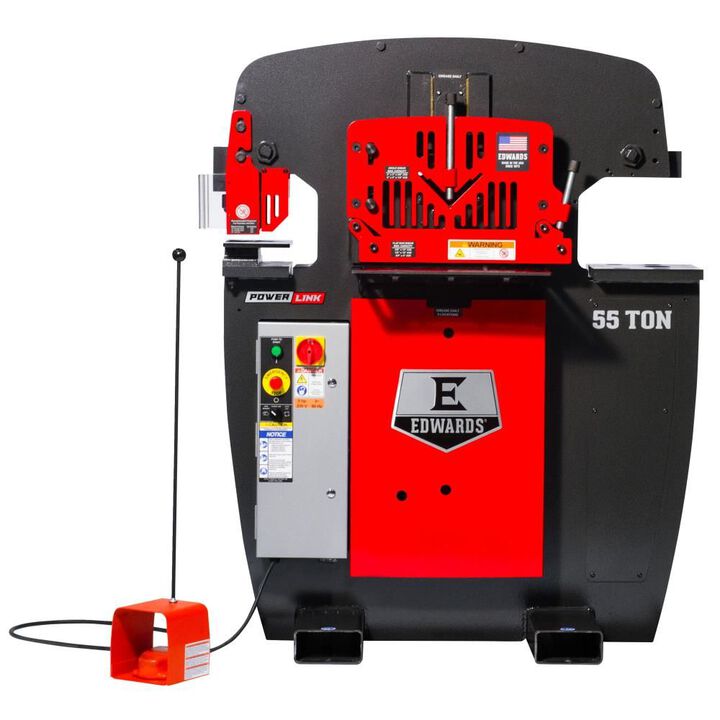

The Edwards 55 ton jaws ironworker is well suited to fit the needs of any FAB shop, large or small. Standard features include a punch assembly with pedestal die table, flat bar shear, angle shear and a universal open tooling station designed to accept optional tooling accessories. The factory installed PowerLink system allows your ironworker to act as a power source to our expanding line of innovative PowerLink hydraulic tools, such as the 10 ton tube/pipe bender, 20 ton shop press and 40 ton shop press.

View Warning Label

Features

Our best seller
Four workstations: standard (4) - punch, flat bar shear, angle shear & coper notcher
9 additional attachments available to convert the punch workstation to your specific needs
ANSI B11.5 - 1988(02) compliant guarding
ETL/UL approved controls
Integrated e-stop, lock-out/tag-out
Optimized workstation heights for improved efficiency
Electric foot pedals with integrated jog control
Adjustable electric stoke control

Specifications

Brand Name
Edwards
Amperage (A)
7.0
ANSI Safety Listing
Yes
Assembled Weight (lbs)
2430.0
California Proposition 65 Warning Required
Yes
Capacity
110000 Lbs
Color
Gray
Country of Origin
United States
ETL Listed
Yes
Horsepower (hp)
5.0

MFG Part # (OEM)
IW55-3P460-A

Maximum Diameter (in)
1.0625 in
Maximum Flow Rate (gpm)
3.5
Maximum RPM
1725
Overall Height (in)
62.0
Overall Length (in)
45.0
Overall Width (in)
51.0
Package Contents
55 Ton Ironworker 3 Phase 460v with PowerLink System
Pressure Rating (psi)
2500

Product Condition
New

Tank Capacity (gal)
7
UL Listed
Yes

UPC
731325556391

Voltage
460
Warranty Type
1 Year
Weight (lbs)
2430.0
