EMAX 120 Gallon 175 Psi 230V 1-Phase 10HP V4 Vertical Air Compressor
EMAX

Please follow our Community Guidelines and be kind!

Description

EMAX 120 Gallon 175 Psi 230V 1-Phase 10HP V4 Vertical Air Compressor

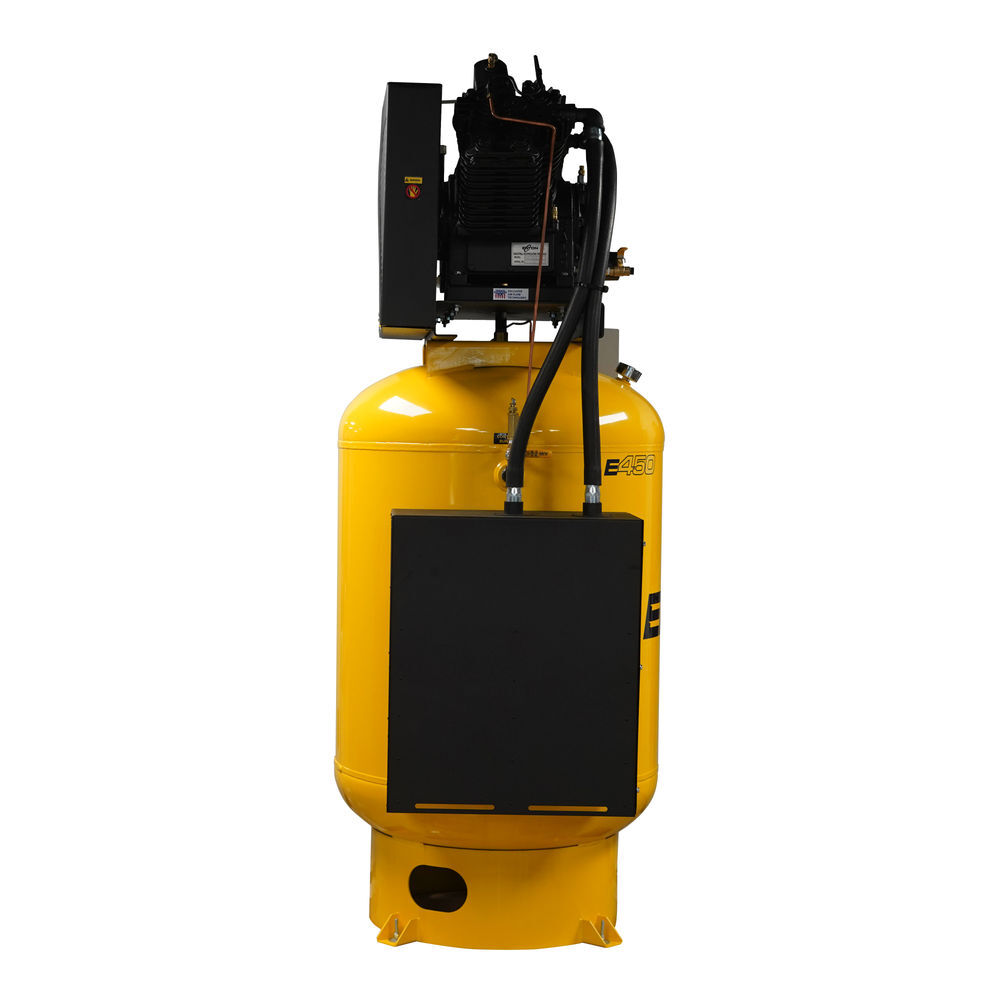

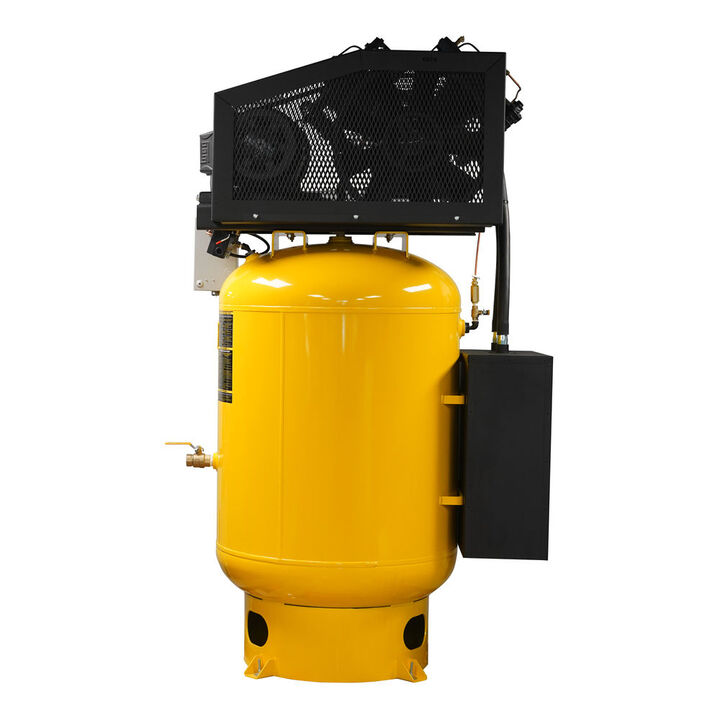

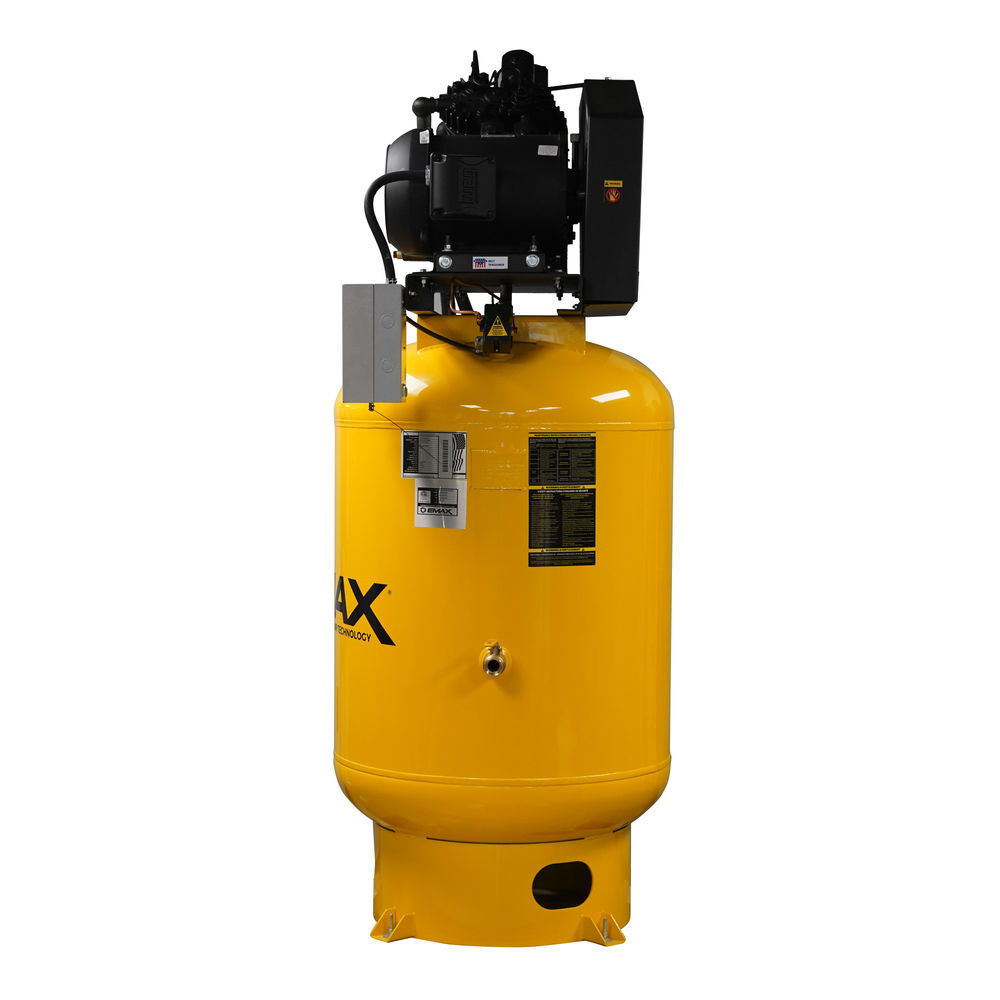

This EMAX Industrial Plus 10HP 2 Stage V4 1 Phase vertical 120 gallon. Piston air compressor is designed for up to 70000 hours of commercial or industrial use with proper maintenance. This unit delivers 38 SCfm @ 100 Psi, top Psi of 175. Our unit features industrial 1750 Rpm electric motors, magnetic starters, automatic tank drain, powder coated ASME tank 200 Psi rating, along with our continuous run functionality all paired with all cast iron 70,000 hour. rated patented pressure lubricated reciprocating pump. This unit features our patented Whisper100 silent air system already installed. The Whisper100 dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. All backed by the warranty in the industry.

California Proposition 65 Warning.

Features

Patented Pressure Lubricated 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours based on B-10 bearing life rating
Continuous mode functionality for workloads over 50% duty cycle eliminates wear and tear on your magnetic contactor
Belt tension adjustor for fast, easy one-turn design reduces vibration and extends belt life
Auto tank drain 110V dual timer controlled, eliminates daily maintenance
Silent air technology
ETL Certified

Specifications

Brand Name
EMAX
Air Volume (CFM)
38
Assembled Weight (lbs)
1020
Average Air Consumption (CFM)
38
Compressor Design
Vertical
Country of Origin
United States
ETL Listed
Yes
Fuel Type
Gas
Horsepower (hp)
10

MFG Part # (OEM)
ESP10V120V1

Material
Solid Cast Iron Pump
Maximum Air Pressure (psi)
175
Maximum Pressure Rating (psi)
175
Maximum RPM
1750
Maximum Speed (rpm)
1750
Operating Position
Vertical
Package Contents
Air Compressor
Phase
Single Phase
Pressure Rating (psi)
175

Product Condition
New

RPM
1750
Restrictions
CA Prop 65
Tank Capacity (gal)
120
Tank Configuration
Single

UPC
815002014739

Warranty Type
1 Year
Weight (lbs)
1020
Wheeled
No
