EMAX 230V 10HP 1PH 120 Gallon Horizontal Air Compressor with Radiator

Name: EMAX 230V 10HP 1PH 120 Gallon Horizontal Air Compressor with Radiator
Brand: EMAX
SKU: EPR10D120V1
Price: 12953.28 USD
Availability: InStock

SKU# EPR10D120V1

EMAX 230V 10HP 1PH 120 Gallon Horizontal Air Compressor with Radiator, large image number 0

EMAX 230V 10HP 1PH 120 Gallon Horizontal Air Compressor with Radiator, large image number 1

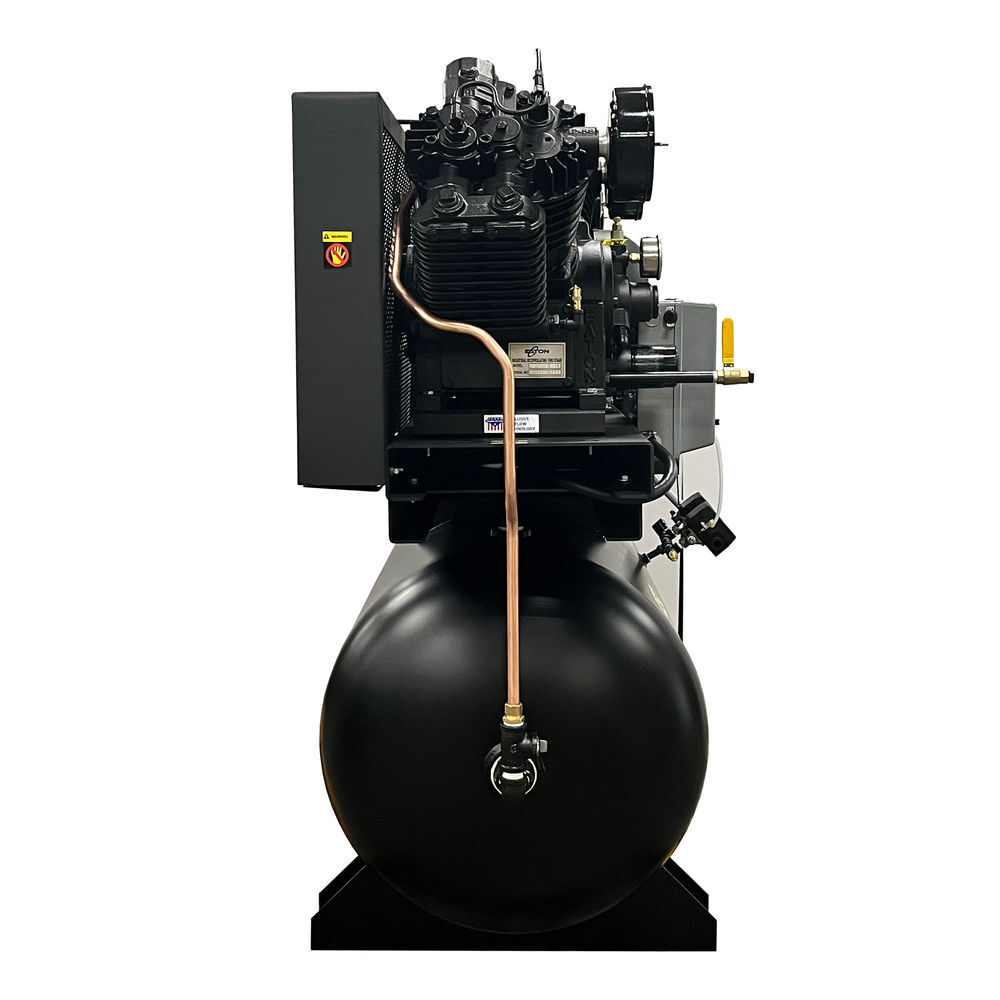

EMAX 230V 10HP 1PH 120 Gallon Horizontal Air Compressor with Radiator, large image number 2

EMAX 230V 10HP 1PH 120 Gallon Horizontal Air Compressor with Radiator, large image number 3

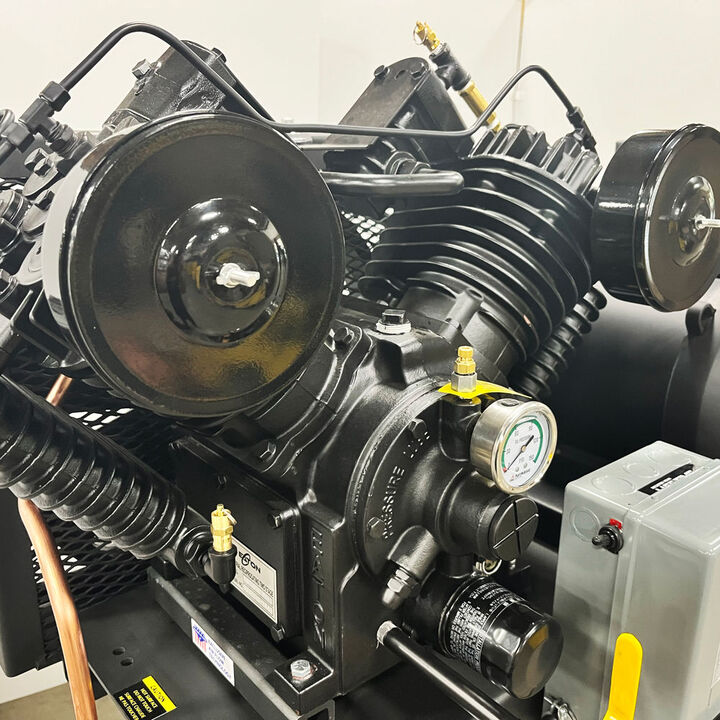

EMAX 230V 10HP 1PH 120 Gallon Horizontal Air Compressor with Radiator, large image number 4

EMAX 230V 10HP 1PH 120 Gallon Horizontal Air Compressor with Radiator, large image number 5

Made In USA

Acme Tools Guarantee

Qty

(Max. order of 1,000)

Secure Checkout

Product Details

EMAX 230V 10HP 1PH 120 Gallon Horizontal Air Compressor with Radiator

EMAX

Please follow our Community Guidelines and be kind!

Description

EMAX 230V 10HP 1PH 120 Gallon Horizontal Air Compressor with Radiator

This EMAX compressor is designed to efficiently regulate air pressure by alternating between two pumps. When one pump is not keeping up with demand, both pumps will activate until the desired pressure is reached, ensuring minimal running time and preventing overheating. The unit features two low RPM solid cast iron patented pressure lubricated pumps, paired with powerful industrial grade motors and a relay switch for easy operation. All of this is mounted on sturdy ASME certified 120 gallon horizontal tanks for added convenience. With its automatic tank drain, belt tensioners, and continuous run mode, using this compressor is a breeze.

California Proposition 65 Warning.

Manuals

Warranty - PDF

Features

Riser - Our pump mounting plate riser is designed to raise the pump allowing 360-degree air flow from the flywheel to cool the pump oil reservoir. Pump mount risers also allow air to flow under the pump for maximum cooling

Pressure Lube - Pressure Lubrication is the second type of lubrication systems. This system is more technically advanced and a far more precise method to deliver oil to critical parts of the pump, resulting in longer pump life. The oil is pumped through an oil filter and into the pump where it is then recycled and reused. Since the oil pump is delivering the oil more efficiently the viscosity of the oil is less critical than with a splash system. In the air compressor industry, it is typically more costly to upgrade to pressure lubrication systems. *Our high efficiency manufacturing facility 0to the tank. With this radiator, we target outlet air to the tank within 10 degrees of ambient temperature

Tensioner - Piston: Piston compressors come optional with a belt tensioner. This belt tensioner allows you to easily and quickly tighten your belts. These tensioners also have a double bolt tension device that allows you to keep the belts in perfect alignment. No pry bars needed to tighten your belts. Rotary: All Rotary Screw belt driven models 5HP - 20HP include an automatic spring-loaded belt tensioning device. This keeps a steady pressure for optimal belt tension

Auto Drain - Operation: A dual timer electric auto drain is a device designed to expel moisture and water from the air receiver tank. Interval Setting Feature - It has an adjustable interval setting feature that allows you to set the device from 1 to 45-minute drain cycles. You can also set the timing of how long you want the drain to stay open. Muffler Included - Our premium series compressors Include an air muffler for quiet dispensing of water.

Belt Drive - Our belt driven compressors are driven by V belts that allow you to adjust the pump speeds by changing pulley sizes

Meets ASME, CRN Standards
