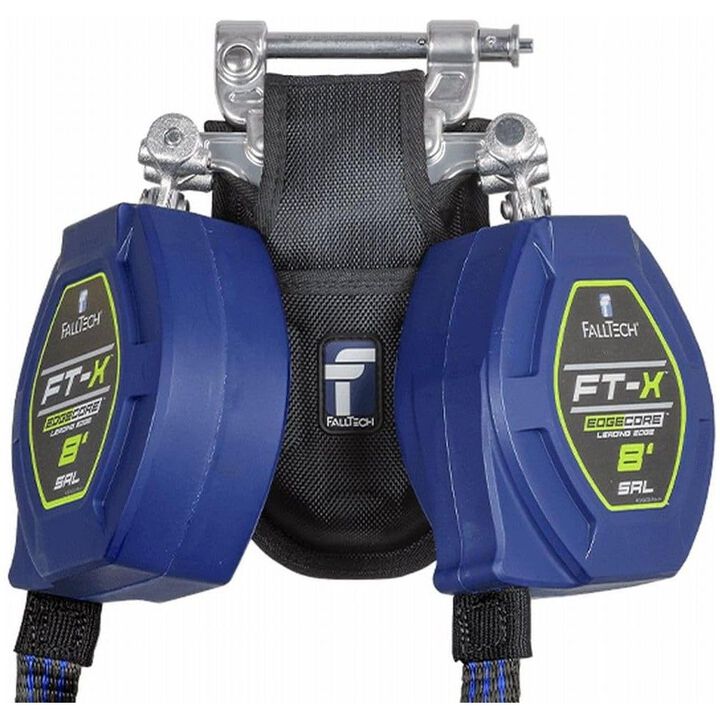

Retractable units - Compact design keeps retractable units close to the body's center line to reduce fatigue and positions away from the back to minimize discomfort from rubbing or pressure from resting. Compact, extended capacity energy absorber - 420 Lbs Worker rated extended capacity energy absorber's low-profile shape reduces heat and sweat build up and is protected by an abrasion resistant cover

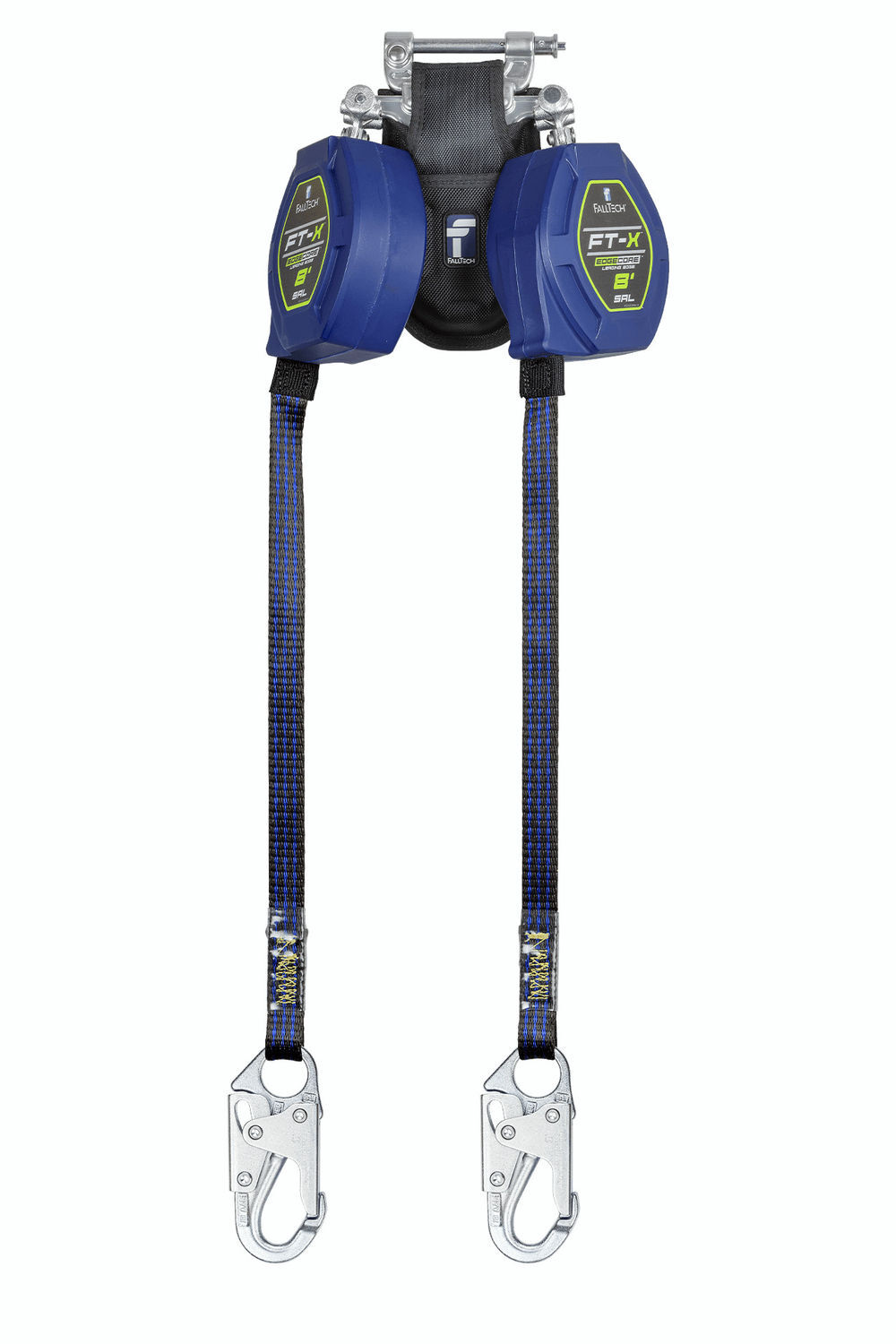

EdgeCore™ Lifeline - Innovative lifeline design is not a webbing but a structure of multiple Kevlar® cables with UV-resistant. Composite jacket providing ultimate strength and durability over leading edge hazards. EdgeCore is 40% lighter than most Class 2 Leading Edge SRLP cable lifelines. Triple action connector - Proprietary aluminum alloy dorsal connector provides simplified push button attachment with visual locking indicators
Lightweight, durable housings - Engineered housing material provides durability and flexibility at low weight. Dark blue color distinguishes the below D-ring and leading edge capability of FT Class 2 SRLs. Labels - Comprehensive fall clearance charts and tables included inside the energy absorber cover offer easily accessible reference contributing toward safety at all times
Ergonomic comfort design - Compact design elevates the SRD connection points to align optimally with worker motion to minimize fatigue and increase productivity. Optimized lock-up speed - Internal mechanism design minimizes unintentional lockups to keep you moving freely with no interruption in productivity
SpeedLink™ field replaceability - Industry first field replaceable Class 2 Leading Edge SRL-P provides overall lowest cost of ownership and less equipment downtime. For twin FT-X SRLs the retractable unit with damaged lifeline or inspection failure can be immediately replaced on site easily and safely thanks to the simple SpeedLink™ mechanism and visual locking indicators
ANSI Z359.14-2021 Class 2 Compliant - Suitable for below D-ring tie-off up to five feet and leading edge exposures and hazards, including steel and precast concrete
Complaint with OSHA 1926.502 and 1910.66
Lifeline - EdgeCore™, 5000 Lbs minimum static strength, Energy absorber - Polyester tear-away, Anchorage connector - Plated alloy steel, 5000 Lbs minimum static strength with 3600 Lbs gate strength, Dorsal connector - Aluminum alloy, 3600 Lbs minimum
Static strength - 3600 Lbs minimum, ANSI SRL Class/Type - Class 2 SRL-P, Average arrest force - 1350 Lbs maximum. Maximum arrest force - 1800 Lbs, Maximum arrest distance - 42 In., ANSI user capacity - 130 to 310 Lbs maximum, OSHA user capacity - 130 to 310 Lbs maximum
Features comprehensive fall clearance charts and tables inside the energy absorber cover. Internal mechanism design minimizes unintentional lockups to keep you moving freely and productively
