7 voltage settings, with infinite wire feed speed control, allow you to fine-tune the output parameters for improved arc performance, less spatter, a better bead appearance, and less clean-up. Integrated spool gun control circuitry is standard, eliminating the need for an additional control box or adaptor to connect the SpoolRunner 100 spool gun.
Door chart with initial settings—You can quickly reference initial settings for different wires, gases, materials, and thicknesses. This provides a quick starting point whether you are a novice or professional. Built-in contactor—Keeps wire electrically "cold" until trigger is pulled, which makes it easy to use and keeps you safe.

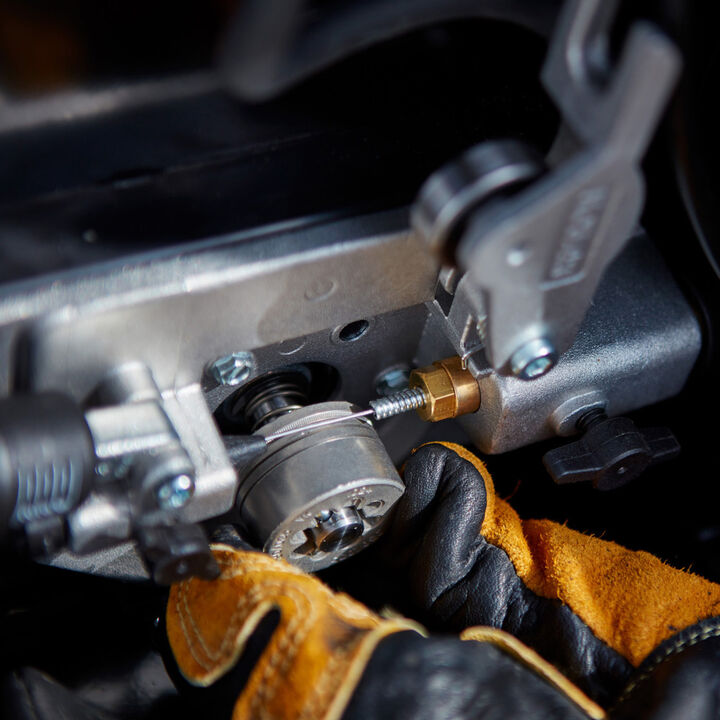

Industrial cast aluminum wire drive system—Durable wire feed provides professional performance. Convenient polarity changeover—It is easier and quicker to change the polarity between solid or tubular wire.
Quick Select drive roll - Less of your time consumed in setup by offering three grooves - two for different size solid wire and a third for flux-cored wire.
Short circuit protection protects the unit against current overload. Self-resetting thermal overload protection protects the power transformer from thermal overload to provide maximum reliability.
Accepts uncomplicated, easy-to-install direct plug-in SpoolRunner 100 spool gun - Spool guns enhance feedability and reduce "bird-nesting" associated with soft aluminum wires.
Current type - DC, Rated output - 30% at 130A, Max open circuit voltage - 31VDC, Wire feed speed - 40-740 Ipm, Wire diameter - Stainless 0.024 in. - 0.035 In., Stainless 0.6 mm - 0.9 mm, Solid Steel 0.6 mm - 0.9 mm, Solid Steel 0.024 In. - 0.035 In, Flux Cored 0.03 In. - 0.045 In., Flux Cored 0.8 mm - 1.2 mm, Input voltage - 220/230/240V, Input phase - 1-Phase, Frequency - 60 Hz, Warranty - 2 Years - Parts and Labor: Original main power rectifiers only to include SCRs, diodes, and discrete rectifier modules reactors, stabilizers, transformers, 1 Years - Parts and Labor: Drive Systems, Idle Module, PC Boards, Rotors, Stators and Brushes, Solenoid Valves, Spot Welder Transformer, Switches and Controls, 90 days - Parts and Labor: Motorized guns
Includes - Comfortable 10 Ft. (3 m) HR-100S4-10 gun, Owner's manual with installation, operation, and maintenance guidelines, 10 Ft.(3 m) work cable with clamp, Built-in gas solenoid value and dual-gauge regulator with gas hose, Spool hub assembly accommodates 4 or 8 In. spools, Sample spool of 0.03 In. self-shielding flux-cored wire, 0.03 In. (0.8 mm) contact tips, Quick Select™ drive roll for .024 in. (0.6 mm) or .030/.035 In. flux cored wire, Power cord with plug, Welding guide, and material thickness gauge, Comfortable 10 Ft. (3 m) HR-100 gun
Hobart
