Industrial Air Compressor 10 HP Three Phase 230V 120 Gallon Horizontal Two Stage

SKU# IH9919910
4.1 out of 5 Customer Rating
Industrial Air Compressor 10 HP Three Phase 230V 120 Gallon Horizontal Two Stage, large image number 0
Industrial Air Compressor 10 HP Three Phase 230V 120 Gallon Horizontal Two Stage, large image number 1
Previous Next
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Delivery to -
- Est. Arrival - Est. Ship - Est. Arrival - Get it as soon as {0} Edit location Add Zip Code
Pick Up at
Store Address -
Available within 4 hours
Contact Store:
Est. Email Delivery: within 24 hours
Made In USA
  No Air Shipments

Freight Shipping Rates Apply

Lift Gate Service (freight lowered to ground)
Industrial Air Compressor 10 HP Three Phase 230V 120 Gallon Horizontal Two Stage
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Selected Delivery Method: Freight Delivery
Freight Delivery
Get it as soon as {0}
Pick up in Store
Available within 4 hours
Not Available for Pick Up
Qty
Secure Checkout
Affirm
Pay as low as $180/mo.
with Affirm

Product Details

Industrial Air Compressor 10 HP Three Phase 230V 120 Gallon Horizontal Two Stage
Industrial Air

Please follow our Community Guidelines and be kind!

Description

Industrial Air Compressor 10 HP Three Phase 230V 120 Gallon Horizontal Two Stage

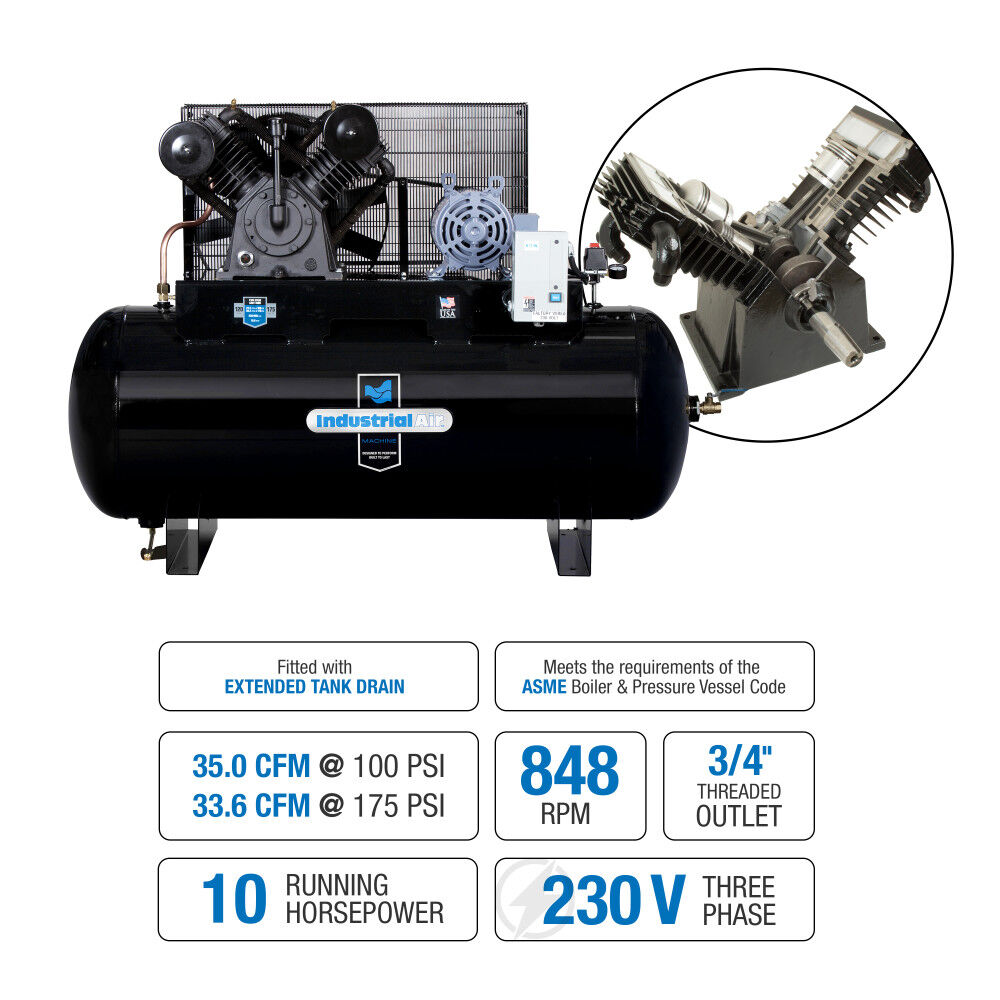

Industrial Air 120 Gallon Compressor delivers 33.6 SCFM @ 175 PSI allowing more than one air tool to operate at a time. The industrial class 4-pole, 10 HP, 3-phase Century motor is NEMA rated and comes pre-wired with magnetic starter saving you time and money . A uniquely designed metal belt guard cools the oil-lubricated, 2-stage, cast iron pump by as much as 60% over other designs and provides protection during operation. The pump features a patented piston design for improved compression efficiency, asymmetrical cooling fins to draw heat away from the precision bored cylinders, and a cast iron flywheel with large, extended fins. Comes equipped with a pressure gauge, 3/4 inch air outlet, and extended tank drain.

California Proposition 65 Warning.
View Warning Label

Manuals

Use and Care Manual - PDF

Features

Delivers airlflow of 35 SCFM @ 100 PSI and 33.6 SCFM @ 175 PSI
Patented pump design and unique metal belt guard design provides for a cooler running pump
NEMA rated industrial class 10 HP, 4 pole, 1725 RPM, 230 volt, three phase electric motor
Large capacity 120 gallon ASME certified tank and maximum pressure of 175 PSI provide enough power to operate more than 1 tool at a time
Equipped with pre-wired and mounted magnetic starter
Patented piston design for improved compression efficiency
Cast iron cylinder head with patented deep-groove directional cooling fins
Fitted with extended tank drain for easier maintenance
Balanced cast iron flywheel with large extended fins improve pump cooling and lower RPMs for pump longevity
3/4 inch air outlet

Specifications

Brand Name
Industrial Air
Air Compressor Pump Design
Oil Lubricated
Air Volume (CFM)
35 SCFM @ 100 PSI; 33.6 SCFM @ 175 PSI
Amperage (A)
27
Application
Air Brushing, Blow Cleaning, Bolting, Brad Nailing, Cutting, Drilling, Finish Nailing, Framing Nailing, Grinding, HVLP Painting, Hobby Nailing, Hobby Painting, Inflation, Roof Nailing, Sanding, Spraying, Stapling, Surface Prep, Wrenching
Assembled Weight (lbs)
896
California Proposition 65 Warning Required
Yes
Color
Black
Compressor Design
Horizontal (Stationary)
Country of Origin
United States
CSA Certified
Yes
ETL Listed
Yes
Fuel Type
Electric
Height (in)
60
Horsepower (hp)
10
Length
75 in

MFG Part # (OEM)
IH9919910

Maximum Air Pressure (psi)
175
Maximum Pressure Rating (psi)
175
Operating Position
Horizontal
Package Contents
compressor, manual
Phase
3
Pressure Rating (psi)
175

Product Condition
New

Tank Capacity (gal)
120
Tank Configuration
Single
Tank Material
Steel
Tank Pressure Gauge
Yes
UL Listed
Yes

UPC
846212008300

Voltage
230
Warranty Type
2 Years Limited
Weight (lbs)
896
Wheeled
No
