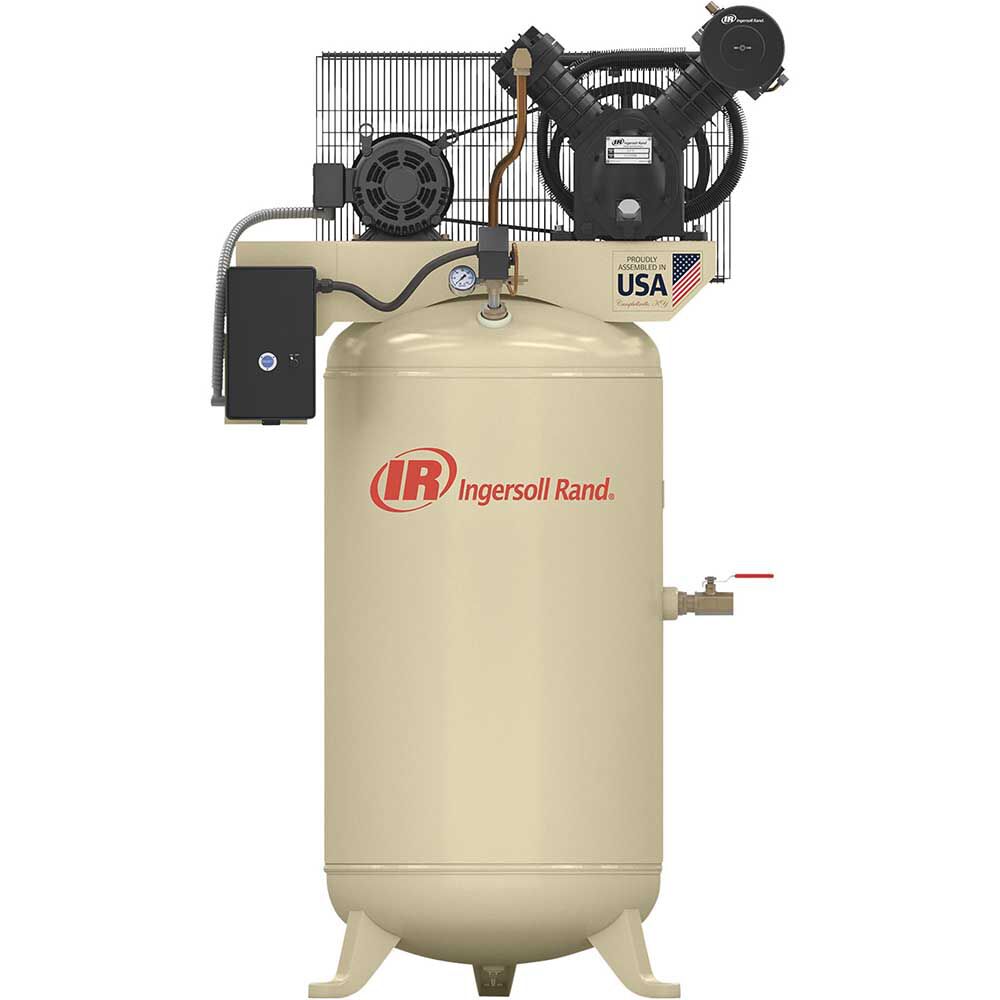

Ingersoll Rand 7.5 HP 80 gal 230 V 1 Ph Vertical Air Compressor, large image number 0
Previous Next
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Delivery to -
- Est. Arrival - Est. Ship - Est. Arrival - Get it as soon as {0} Edit location Add Zip Code
Pick Up at
Store Address -
Available within 4 hours
Contact Store:
Est. Email Delivery: within 24 hours
Made In USA

Freight Shipping Rates Apply

Lift Gate Service (freight lowered to ground)
Ingersoll Rand 7.5 HP 80 gal 230 V 1 Ph Vertical Air Compressor
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Selected Delivery Method: Freight Delivery
Freight Delivery
Get it as soon as {0}
Pick up in Store
Available within 4 hours
Not Available for Pick Up
Qty
Secure Checkout
Affirm
Pay as low as $209/mo.
with Affirm

Product Details

Ingersoll Rand 7.5 HP 80 gal 230 V 1 Ph Vertical Air Compressor
Ingersoll Rand

Please follow our Community Guidelines and be kind!

Description

Ingersoll Rand 7.5 HP 80 gal 230 V 1 Ph Vertical Air Compressor

The Ingersoll Rand® 7.5 HP 80 Gal 230 V 1 PH Vertical Air Compressor is ideal for industrial and professional applications, as it includes a pressure switch and gauge that let you stay in control. The 7.5HP motor uses a low amount of energy but produces high pressure. To protect the motor, the system has an indicator that shuts down the compressor when it detects low oil. For durability, the equipment is made of 100 percent cast iron, and has precision-engineered components and oversize bearings.
A magnetic starter with a switch lets you start the compressor easily. The vertical air compressor has an after cooler system that turns hot steam into water that drains through the electric drain valve. Ideal for industrial applications, the compressor has an 80-gallon tank and service valve. The vertical design is ideal for compact areas, and the cast-iron construction makes for easy maintenance.

California Proposition 65 Warning.

Features

7.5 HP
80 Gallon tank size
Vertical configuration
230 Volt 1 phase
100% cast-iron cylinder head with deep groove directional cooling fins
Oversized industrial-grade bearings for extended pump life
High-efficiency stainless steel valves
100% cast-iron pump
High-efficiency inlet air filter with sound attenuation baffles

Specifications

Brand Name
Ingersoll Rand
Air Compressor Pump Design
Oil Lubricated
Amperage (A)
40
Assembled Weight (lbs)
611
California Proposition 65 Warning Required
Yes
Color
Tan
Compressor Design
Vertical
Country of Origin
United States
CSA Certified
No
Decibel Rating (dB)
85
ETL Listed
No
Full Roll Cage
No
Handle Included
No
Height (in)
76
Horsepower (hp)
7.5
Length
76 in
Lock-on Switch
No

MFG Part # (OEM)
45465523

Maximum Pressure Rating (psi)
175
Operating Position
Vertical
Package Contents
Compressor with premium package which includes magnetic starter, electric drain, automatic start/stop control with pressure switch (5 hp and 7.5 hp), dual control with centrifugal unloaded (10 hp and 15 hp), air-cooled after cooler, and low oil level switch.
Phase
1

Product Condition
New

Side Handle
No
Switch Type
Magnetic motor starter
Tank Capacity (gal)
80
Tank Configuration
Single
Tank Material
Cast iron
Tank Pressure Gauge
Yes
UL Listed
No

UPC
678384655231

Voltage
230
Warranty Type
1 Year Limited
Weight (lbs)
611
Wheeled
No
