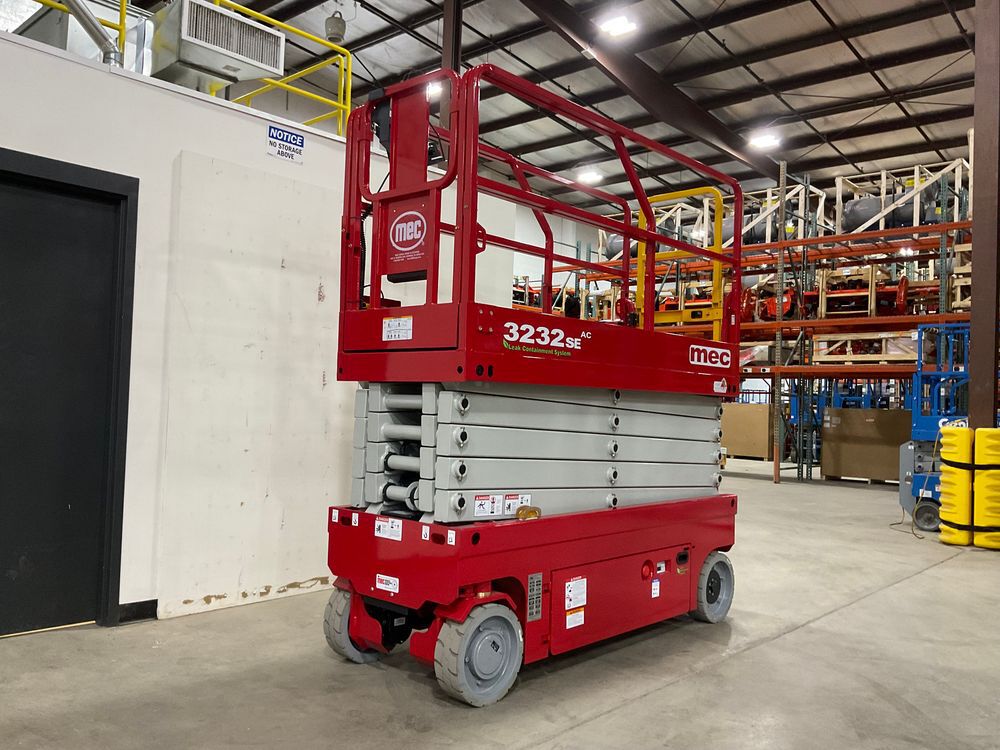

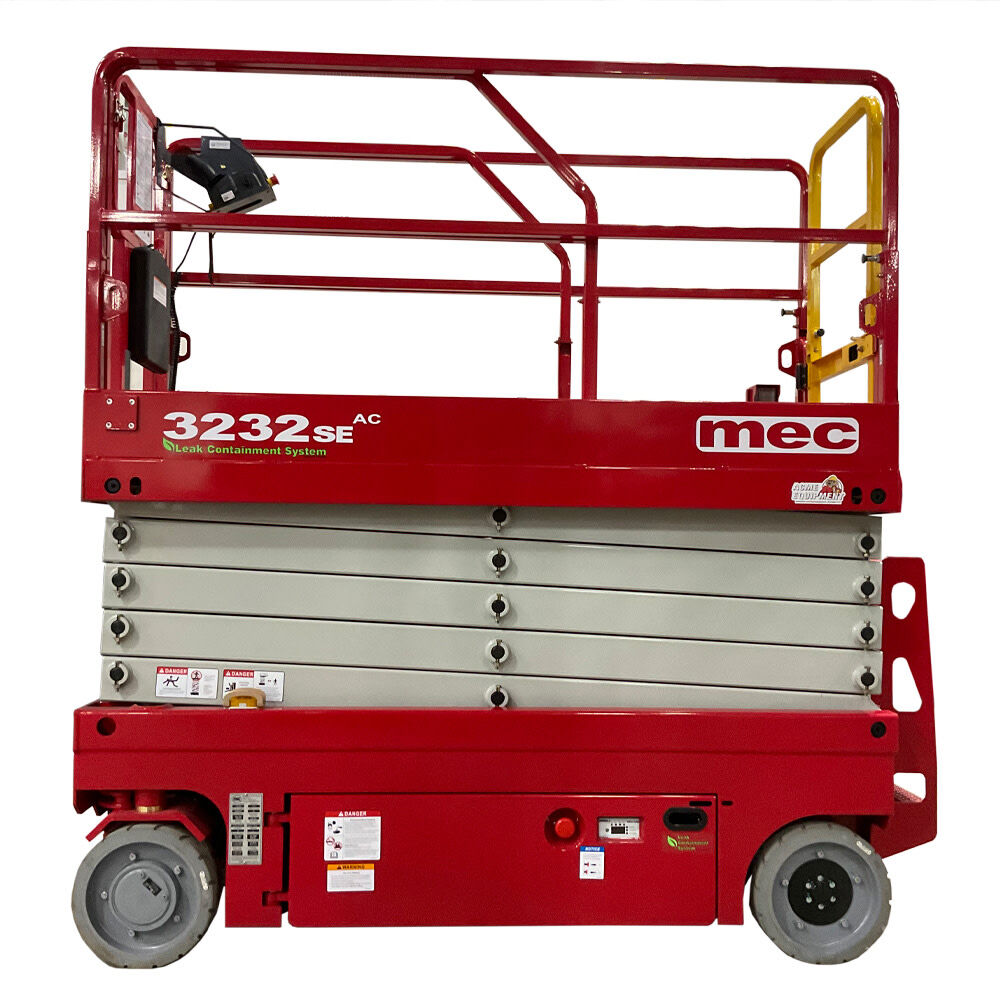

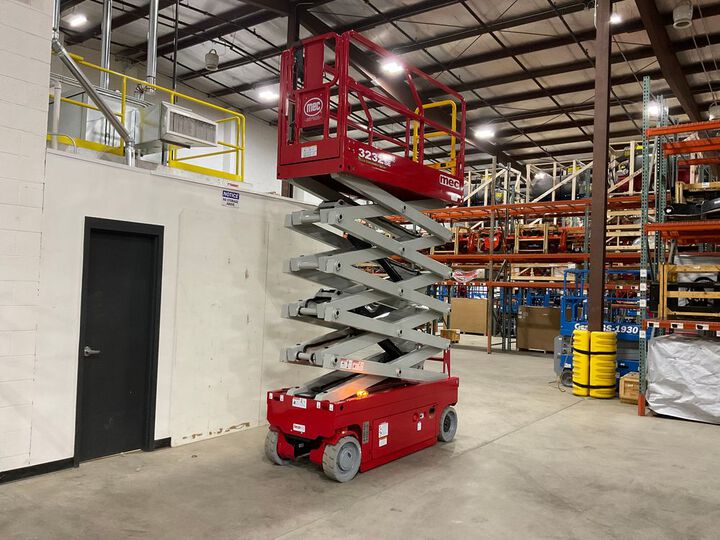

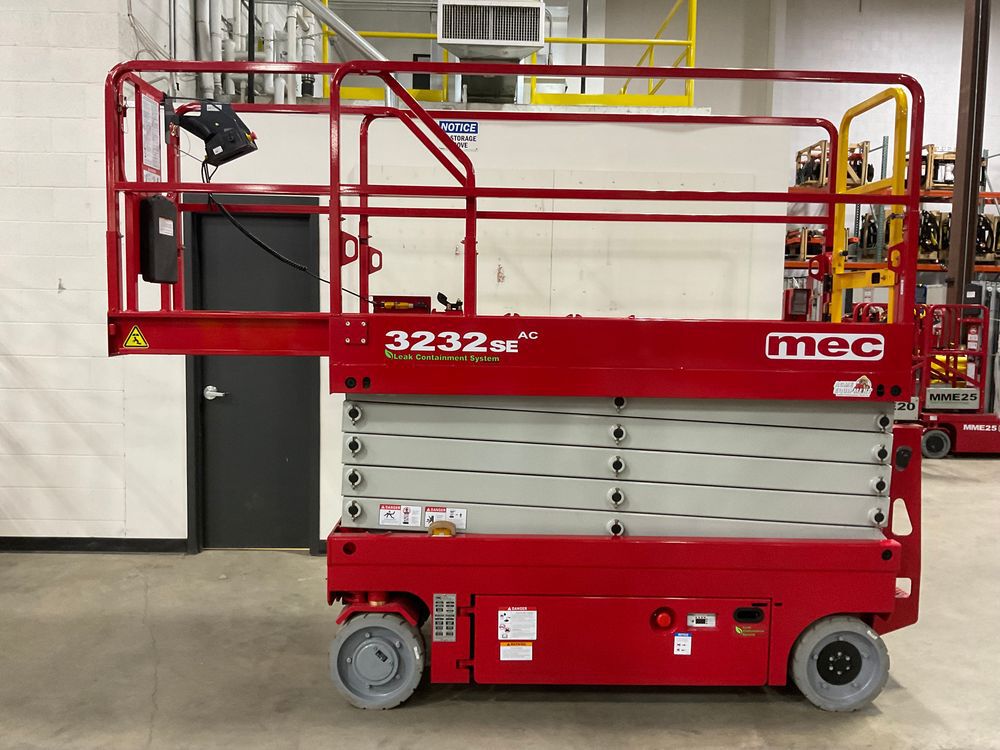

mec 3232SE 32 Ft. 550 Lbs 24V 240Ah Electric Slab Scissor Lift

Name: mec 3232SE 32 Ft. 550 Lbs 24V 240Ah Electric Slab Scissor Lift
Brand: mec
SKU: 3232SE
Price: 31995.00 USD
Availability: OutOfStock

SKU# 3232SE

mec 3232SE 32 Ft. 550 Lbs 24V 240Ah Electric Slab Scissor Lift, large image number 0

mec 3232SE 32 Ft. 550 Lbs 24V 240Ah Electric Slab Scissor Lift, large image number 1

mec 3232SE 32 Ft. 550 Lbs 24V 240Ah Electric Slab Scissor Lift, large image number 2

mec 3232SE 32 Ft. 550 Lbs 24V 240Ah Electric Slab Scissor Lift, large image number 3

mec 3232SE 32 Ft. 550 Lbs 24V 240Ah Electric Slab Scissor Lift, large image number 4

mec 3232SE 32 Ft. 550 Lbs 24V 240Ah Electric Slab Scissor Lift, large image number 5

mec 3232SE 32 Ft. 550 Lbs 24V 240Ah Electric Slab Scissor Lift, large image number 6

mec 3232SE 32 Ft. 550 Lbs 24V 240Ah Electric Slab Scissor Lift, large image number 7

mec 3232SE 32 Ft. 550 Lbs 24V 240Ah Electric Slab Scissor Lift, large image number 8

mec 3232SE 32 Ft. 550 Lbs 24V 240Ah Electric Slab Scissor Lift, large image number 9

mec 3232SE 32 Ft. 550 Lbs 24V 240Ah Electric Slab Scissor Lift, large image number 10

mec 3232SE 32 Ft. 550 Lbs 24V 240Ah Electric Slab Scissor Lift, large image number 11

mec 3232SE 32 Ft. 550 Lbs 24V 240Ah Electric Slab Scissor Lift, large image number 12

mec 3232SE 32 Ft. 550 Lbs 24V 240Ah Electric Slab Scissor Lift, large image number 13

mec 3232SE 32 Ft. 550 Lbs 24V 240Ah Electric Slab Scissor Lift, large image number 14

mec 3232SE 32 Ft. 550 Lbs 24V 240Ah Electric Slab Scissor Lift, large image number 15

mec 3232SE 32 Ft. 550 Lbs 24V 240Ah Electric Slab Scissor Lift, large image number 16

mec 3232SE 32 Ft. 550 Lbs 24V 240Ah Electric Slab Scissor Lift, large image number 17

mec 3232SE 32 Ft. 550 Lbs 24V 240Ah Electric Slab Scissor Lift, large image number 18

mec 3232SE 32 Ft. 550 Lbs 24V 240Ah Electric Slab Scissor Lift, large image number 19

mec 3232SE 32 Ft. 550 Lbs 24V 240Ah Electric Slab Scissor Lift, large image number 20

+ 16 more

Made In USA

Flatbed Trucking Rates Apply

Calculated Delivery Rate at Checkout

Out of Stock

Qty

(Max. order of 1,000)

Secure Checkout

Need more information ?

Product Details

mec 3232SE 32 Ft. 550 Lbs 24V 240Ah Electric Slab Scissor Lift

mec

Please follow our Community Guidelines and be kind!

Description

mec 3232SE 32 Ft. 550 Lbs 24V 240Ah Electric Slab Scissor Lift

This new MEC 3232SE 32 Ft. electric scissor lift features electric drive, a leak containment system, and a 32 Ft. platform height. This groundbreaking slab scissor lift is a significant addition to the company product lineup and leading the change with the ability to drive at full height - a first in this machine class. The MEC® 3232SE can drive at full height, and the elimination of an outrigger leveling system makes this the new benchmark for job site productivity. Key features include a maximum working height of 38 Ft., a 32 In. wide chassis, and a platform capacity of 550 Lbs. Equipped with a highly efficient AC electric drive system and delivers more duty cycles from each battery charge, thereby reducing emissions and jobsite power demand. Focused on providing value to customers in total cost of ownership, the lift comes standard with AGM batteries and MEC's patented Leak Containment System® (LCS). Hours = 0.6. Located at Acme Equipment-3401 Gateway Drive, Grand Forks, ND 58203.

California Proposition 65 Warning.

View Warning Label

Manuals

Use and Care Manual - PDF

Warranty - PDF

Features

Charging on-board charger, Stowed height (top guardrail) - 96 In., Stowed height (rails folded) - 78 In., Length stowed (overall) - 97 In., Chassis width - 32 In., Platform length extended - 124.5 In., Platform length (retracted) - 89.5 In., Platform width - 29 In., Wheelbase - 74 In., Total lift capacity - 550 Lbs., Roll-out deck capacity - 250 Lbs.,

Work area - Roll out deck extension with incremental locking positions, full height swing gate, lanyard attachments (4) Roll-out deck length - 35 In.

Performance - Drive at full height indoor, no outriggers, ac electric drive, fully proportional drive and lift controls, up to 25% gradeability. Indoor working height - 38 Ft., Outdoor working height - 30 Ft., Indoor platform height - 32 Ft., Outdoor platform height - 24 Ft.

Raise speed - 52 seconds, Lower speed - 38 seconds, Drive speed (stowed) - 3 Mph, Drive speed (elevated) - 5 Mph

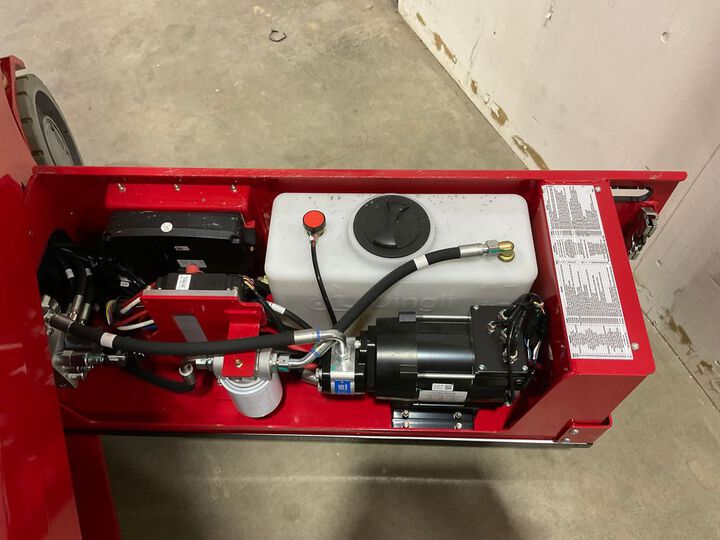

Serviceability - Lubrication-free scissor bearings, easy maintenance access to mechanical and electrical components in swing out trays, logically grouped components and numbered wiring for easy reference.

Safety - Dedicated compartments protect electrical and hydraulic components, emergency shut-off at platform and lower controls, non-skid metal deck construction, descent alarm, drive speed interlock, multi-axis tilt sensor, multiple disk brakes, scissor maintenance lock, multiple disc brakes.

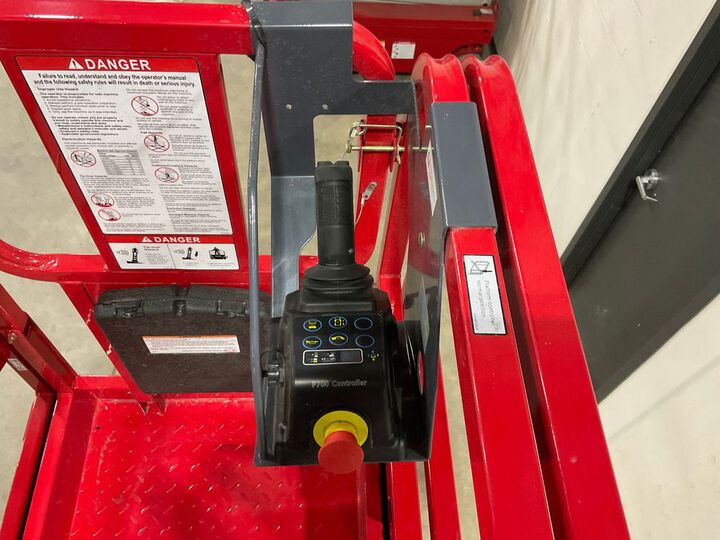

Leak Containment System® (LCS) Patent Number 11,112,060, removable upper controls, fold-down guardrails, voltage-compensating fully, automatic battery charger, hour meter, machine tie downs, non-marking tires, all-motion alarm, fork lift pockets, flashing beacon.

Drive at full height indoors, saving time and battery energy between overhead tasks. Greater productivity and lower cost of ownership with outrigger-free design.

AC Electric drive for extended duty cycle, smoother control and faster drive speeds, spacious 2-person platform (indoors)/1-person platform (outdoors) with 500 Lbs (227 kg) capacity, standard swing gate, fully proportional lift and drive controls. compact maneuverability from front wheel drive and steer with zero inside turn radius.

Power source - 24V 240Ah Maintenance-free AGM batteries, on board charger, and battery charge indicator. Meets or exceeds the requirements of ANSI A92.20 and CSA B354.6 - 2017

Specifications

Brand Name

mec

ANSI Approved

Yes

Assembled Weight (lbs)

7145

Battery Ampere-hour (Ah)

240

California Proposition 65 Warning Required

Yes

Country of Origin

United States

CSA Certified

Yes

Drive Motor System

Electric

Drive Type

2-Wheel Front

Ground Clearance (in)

4 (Stowed), 0.7 (Elevated)

Height (in)

10.5

Hours

0.6

MFG Part # (OEM)

3232SE

Material

Anodized Aluminum

Meets ANSI or OSHA Standards

Yes

Package Contents

(1) Scissor Lift

Platform Width (in)

Product Condition

New

Restrictions

CA Prop 65

Size

96 In. Stowed Height (Top Guardrail) x 78 In. Stowed Height (Rails Folded) x 97 In. Length Stowed (Overall), 32 In. Chassis Width, 38 Ft. Indoor Working Height, 30 Ft. Outdoor Working Height, 32 Ft. Indoor Platform Height, 24 Ft. Outdoor Platform Height

Tire Size

15 x 5 In.

Turning Radius (in)

0 (Inside)
