Product Details

JET Ev TBS16V-460 Elite 16in EVS Vertical Tilt Frame Bandsaw 460V 3Ph
JET

Please follow our Community Guidelines and be kind!

Description

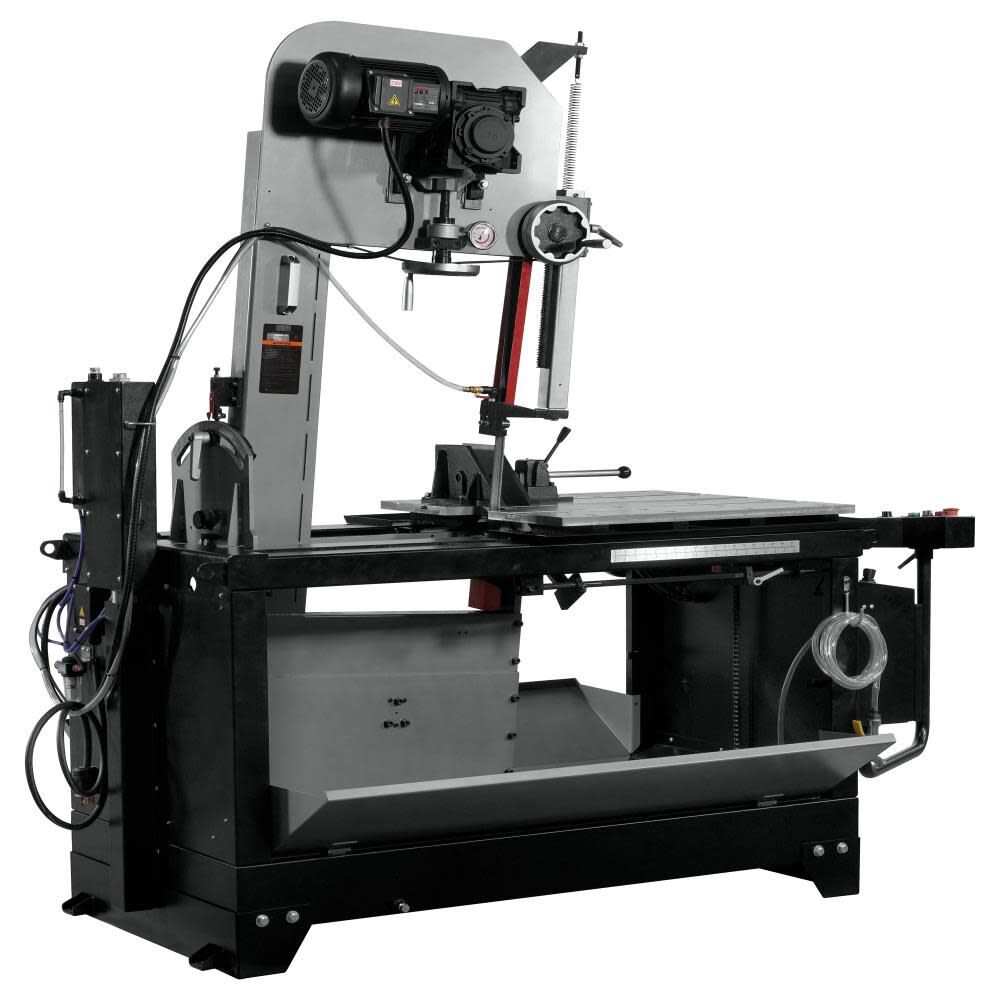

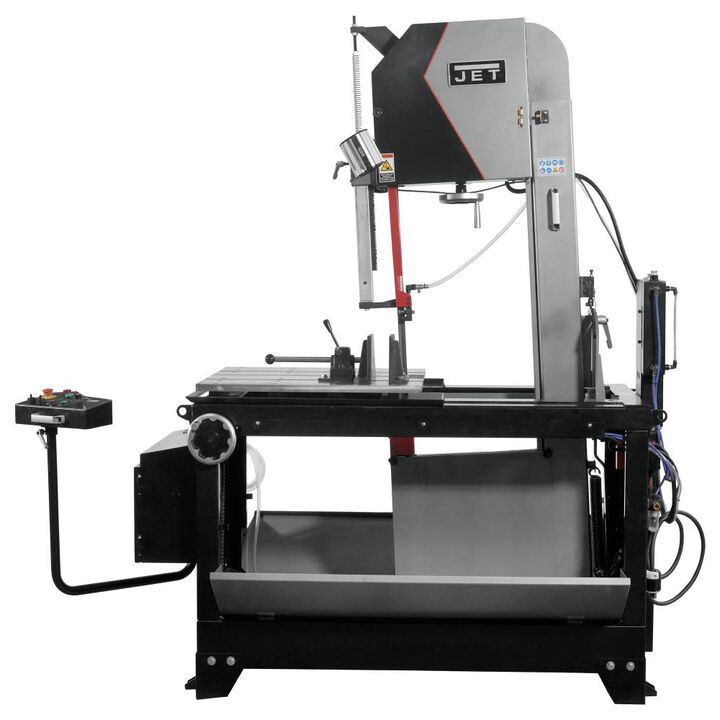

JET Ev TBS16V-460 Elite 16in EVS Vertical Tilt Frame Bandsaw 460V 3Ph

At the heart of every metalworking operation, there is a saw. Saws that are being challenged to cut a wider variety of materials in different ways than ever before. Saws that need to demonstrate new kinds of flexibility, are counted on to last longer and operate more safely at the same time. The Elite EV TBS-16" vertical mealtime Bandsaw is the answer to your shops needs. The 3 degree forward approach angle allows for increased efficiency in cutting structural materials. Inverter drive with speed range of 76-30 SFPM and a digital preadolescences let you know what speed you are at. The quick action vise saves set up time and can be moved in either the right or left of the blade and fast locking. Durability is built into the steel frame construction that reduces vibrations and deflection. Safety is a must with CSA/US certification, the blade is fully guarded and a strong internal spring allows the operator to safely move the bow and fix at any angle. Elite saws are the most precise, more durable and safest bandsaws you could ever have in your shop.

California Proposition 65 Warning.
View Warning Label

Features

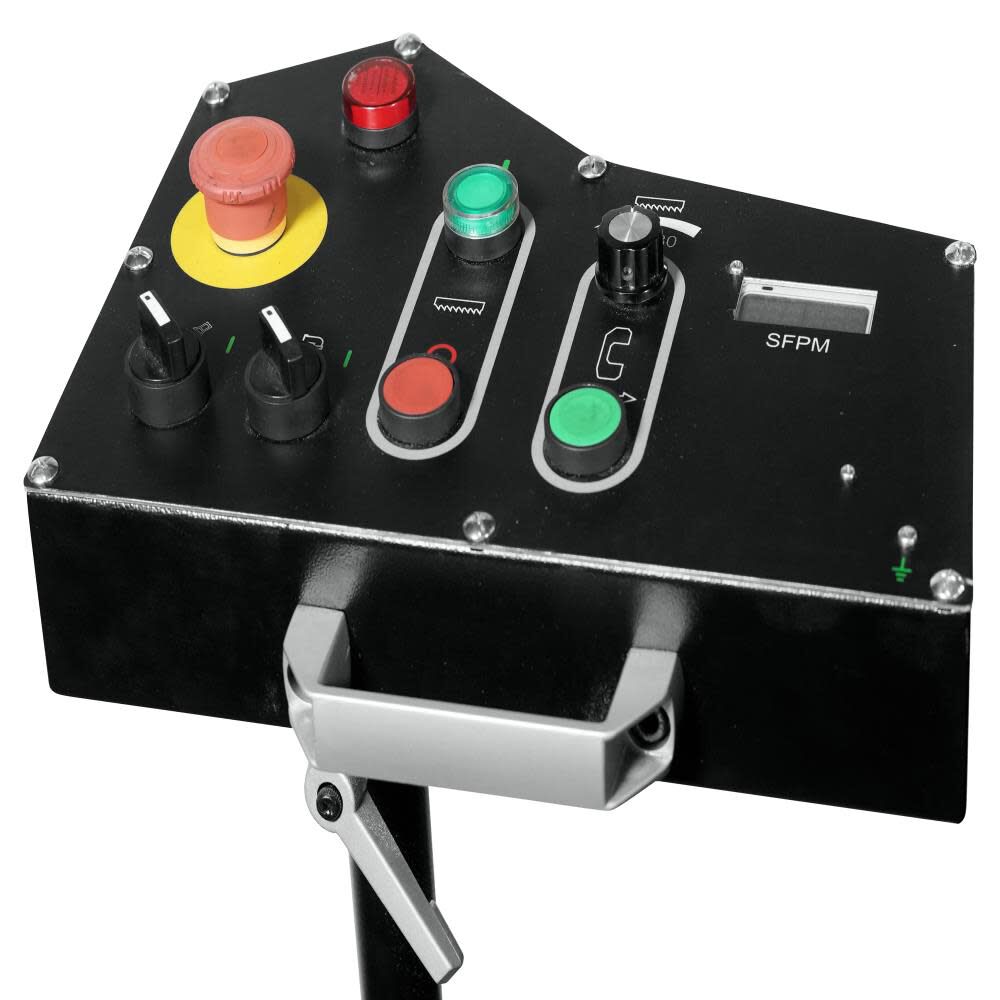

Electronic variable speed 76-430 SFPM with digital readout for FPM
Blade tension gauge helps to ensure the blade is in the correct cutting position
Quick action vise saves set up time and can be moved to either the right or left of the blade and fast locking

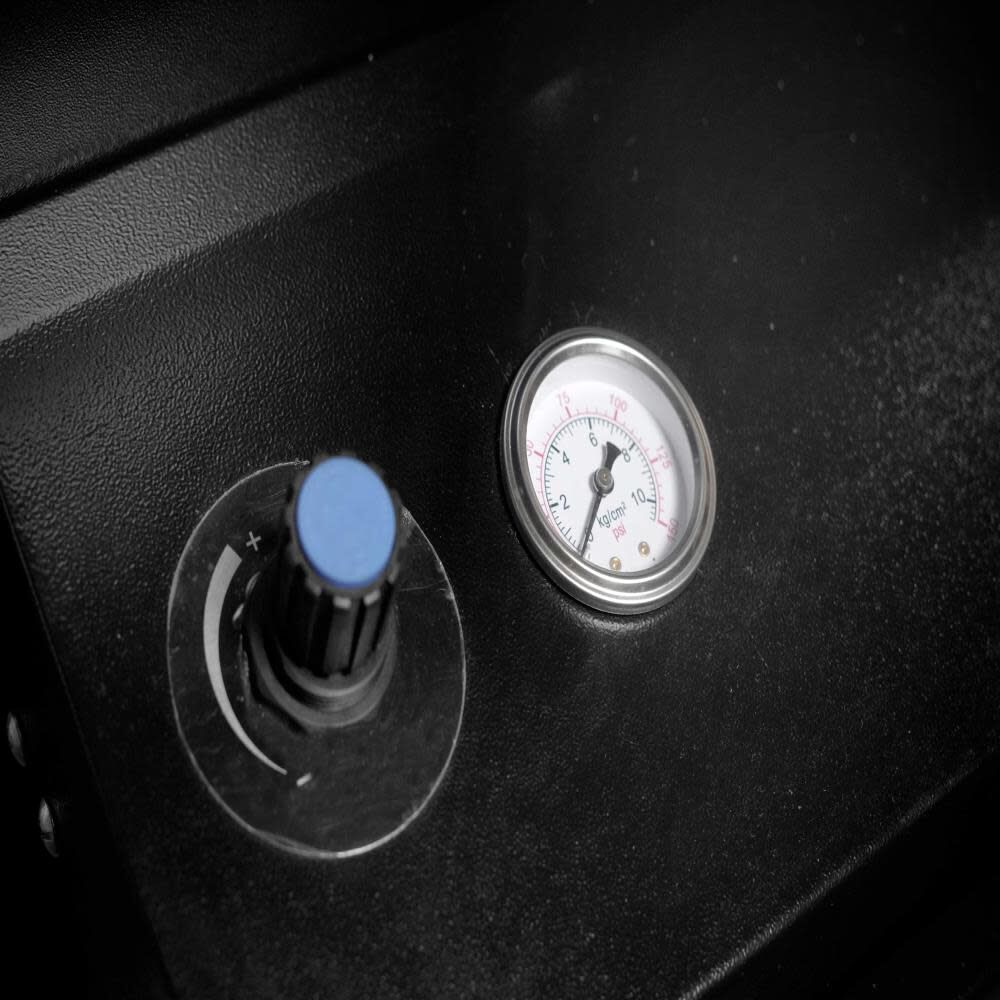

Fully adjustable air hydraulic control for bow travel
3° Forward approach angle for increased efficiency in cutting of structural materials
Heavy-duty steel construction reduces vibration and deflection
Automatic stops can be pre-set to stop advancement and return of the blade
CSA certified electrics following strict guidelines and electrical requirements and are certified by the CSA group
Integrated pressurized wash off hose for easy machine clean up
Blade is fully guarded for operator safety

Specifications

Brand Name
JET
Amperage (A)
3.25
Assembled Weight (lbs)
1408
Band Saw Type
Stationary
California Proposition 65 Warning Required
Yes
Color
Gray
Country of Origin
Taiwan
CSA Certified
Yes
Cutting Capacity
16" Deep
Dust Port
No
ETL Listed
No
Horsepower (hp)
2

MFG Part # (OEM)
JT9-891210

Material
Cast Iron
Maximum Blade Length (In)
168.5
Maximum Blade Width (In)
0.035
Maximum RPM
1720
Package Contents
Material Stop, Wash-off Hose, Blade tension gauge, Coolant System, LED work lamp, Leveling Feet, Toolbox
Phase
Three Phase

Product Condition
New

Speeds
430
Stand Included
Yes
Table Height (in)
38.38
Table Length (in)
29.5
Table Width (in)
14.019
UL Listed
Yes

UPC
731325896213

Variable Speed
Yes
Warranty Type
3 Years Limited
