JET JPW-15BHH 15In Stationary Helical Head Planer 230V/1Ph

Name: JET JPW-15BHH 15In Stationary Helical Head Planer 230V/1Ph
Brand: JET
SKU: 722155
Price: 3739.00 USD
Availability: InStock

SKU# JT9-722155

JET JPW-15BHH 15In Stationary Helical Head Planer 230V/1Ph, large image number 0

JET JPW-15BHH 15In Stationary Helical Head Planer 230V/1Ph, large image number 1

JET JPW-15BHH 15In Stationary Helical Head Planer 230V/1Ph, large image number 2

JET JPW-15BHH 15In Stationary Helical Head Planer 230V/1Ph, large image number 3

JET JPW-15BHH 15In Stationary Helical Head Planer 230V/1Ph, large image number 4

JET JPW-15BHH 15In Stationary Helical Head Planer 230V/1Ph, large image number 5

JET JPW-15BHH 15In Stationary Helical Head Planer 230V/1Ph, large image number 6

JET JPW-15BHH 15In Stationary Helical Head Planer 230V/1Ph, large image number 7

JET JPW-15BHH 15In Stationary Helical Head Planer 230V/1Ph, large image number 8

+ 5 more

No Air Shipments

Acme Tools Guarantee

Qty

(Max. order of 1,000)

Secure Checkout

Product Details

JET JPW-15BHH 15In Stationary Helical Head Planer 230V/1Ph

JET

Please follow our Community Guidelines and be kind!

Description

JET JPW-15BHH 15In Stationary Helical Head Planer 230V/1Ph

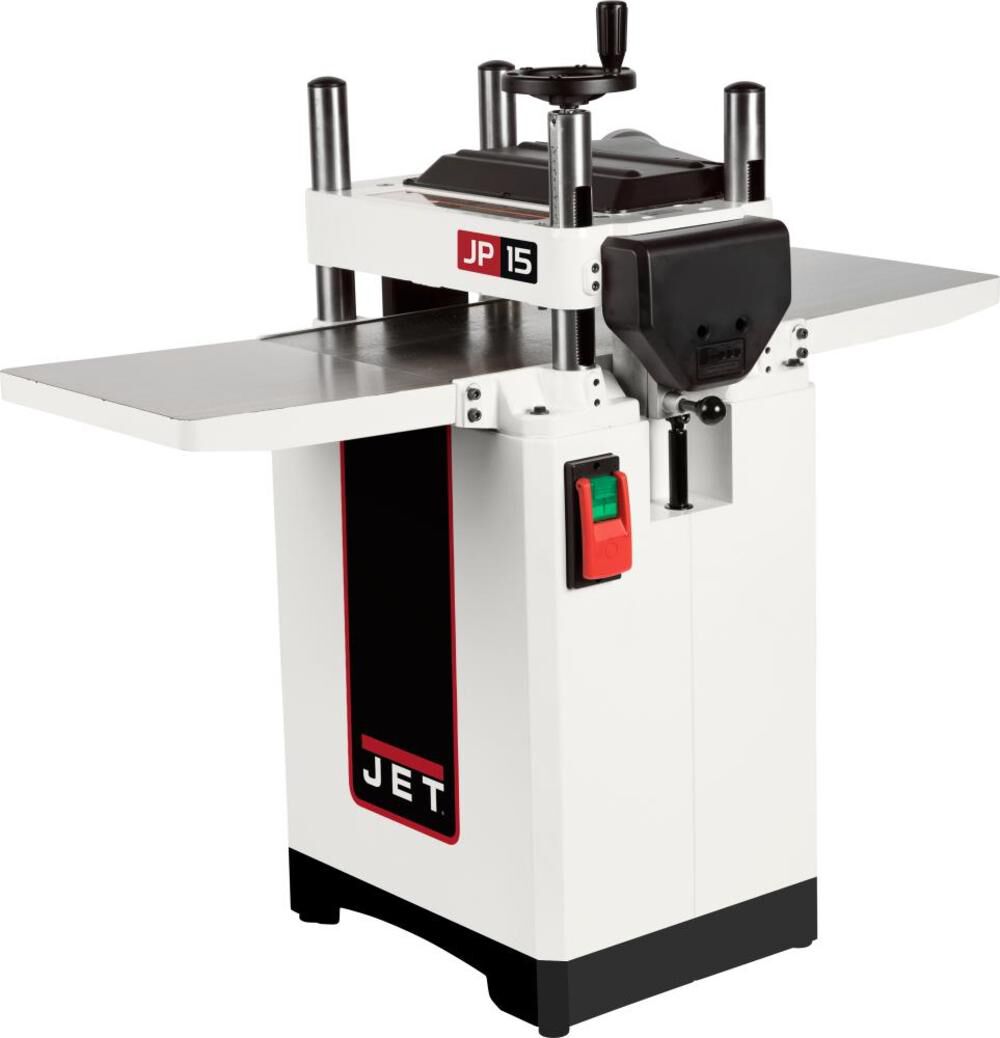

The new Jet 15 In. helical head planer quickly and quietly transforms rough lumber into smooth boards. This machine means business with a powerful 3 HP motor combined with a helical cutter head housing 48 staggered carbide quick change knives. The innovative Precision Air Strut System (PASS™) provides consistent upward pressure on the cutter head, reducing the chance of board snipe. The conveniently located two-speed gear box allows for quick and easy feed rate adjustments while removing up to 1/8 In. material with each pass for a smooth finish. A large precision cast-iron table and Infeed/outfeed tables make this planer a beautiful addition to the shop.

California Proposition 65 Warning.

View Warning Label

Features

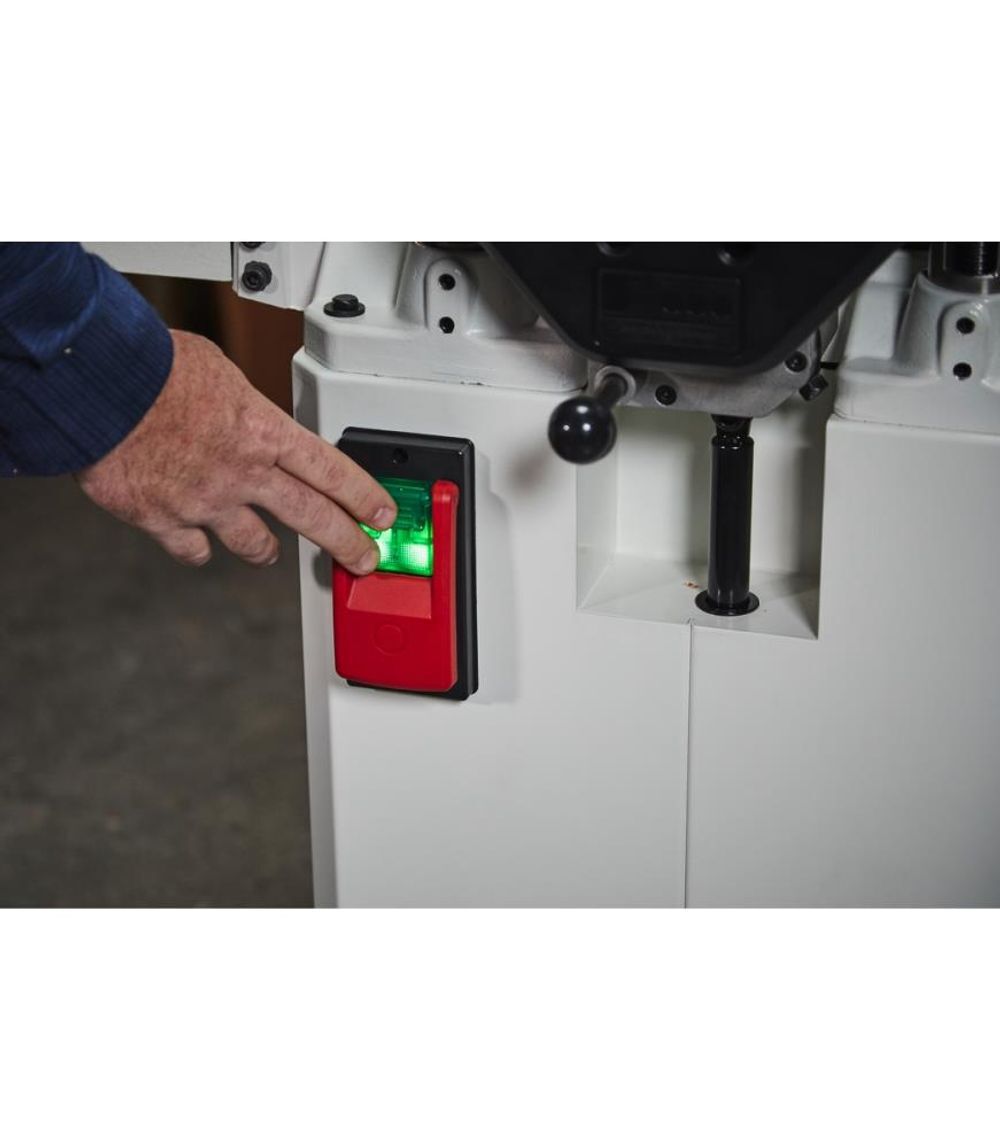

Magnetic switch with green safety light illuminates when powered

Large hand wheel with positive gear drive easily moves the head to the desired board thickness

Large cast iron precision ground Infeed/outfeed tables provide support for large work pieces

Maximum depth of cut 1/8, 6 cutting height and 15-in width capacity

Dual Infeed speed control for 16FPM or 20FPM, maximizes cut efficiency

Powerful 3-HP motor with v-belt transmission reduces vibration and running noise

Heavy-duty precision ground cast iron table and four post design provides maximum control and support when passing boards through planer

Helical cutter head houses 48 staggered carbide knives that are engineered to align themselves without any adjustment for a superior finish and quieter cut

Innovative Jet - Precision Air Strut System (PASS™) provides consistent upward pressure on the cutter head, reducing the chance of board snipe

Specifications

Brand Name

JET

Amperage (A)

Assembled Weight (lbs)

129.8

Bench or Stationary

Stationary

Blade Count

Blade Type

4 sided knife inserts

California Proposition 65 Warning Required

Yes

Color

White

Country of Origin

Taiwan

CSA Certified

Yes

ETL Listed

Height (in)

Horsepower (hp)

Length

7 ft

Maximum Cutting Depth (in)

0.188

Maximum RPM

5200

Maximum Width Cutting Capacity (in)

Overall Weight (lbs)

129.8

Package Contents

1 Planer, 1 Handwheel assembly, 1 Dust port, 1 Torx point screwdriver T30 (with magnets), 1 Operating Instructions and Parts Manual, 1 Product registration card, 2 Cast iron extension tables, 2 Star point screwdrivers, 5 Knife inserts 10 Knife insert screws, 1 Hardware package
