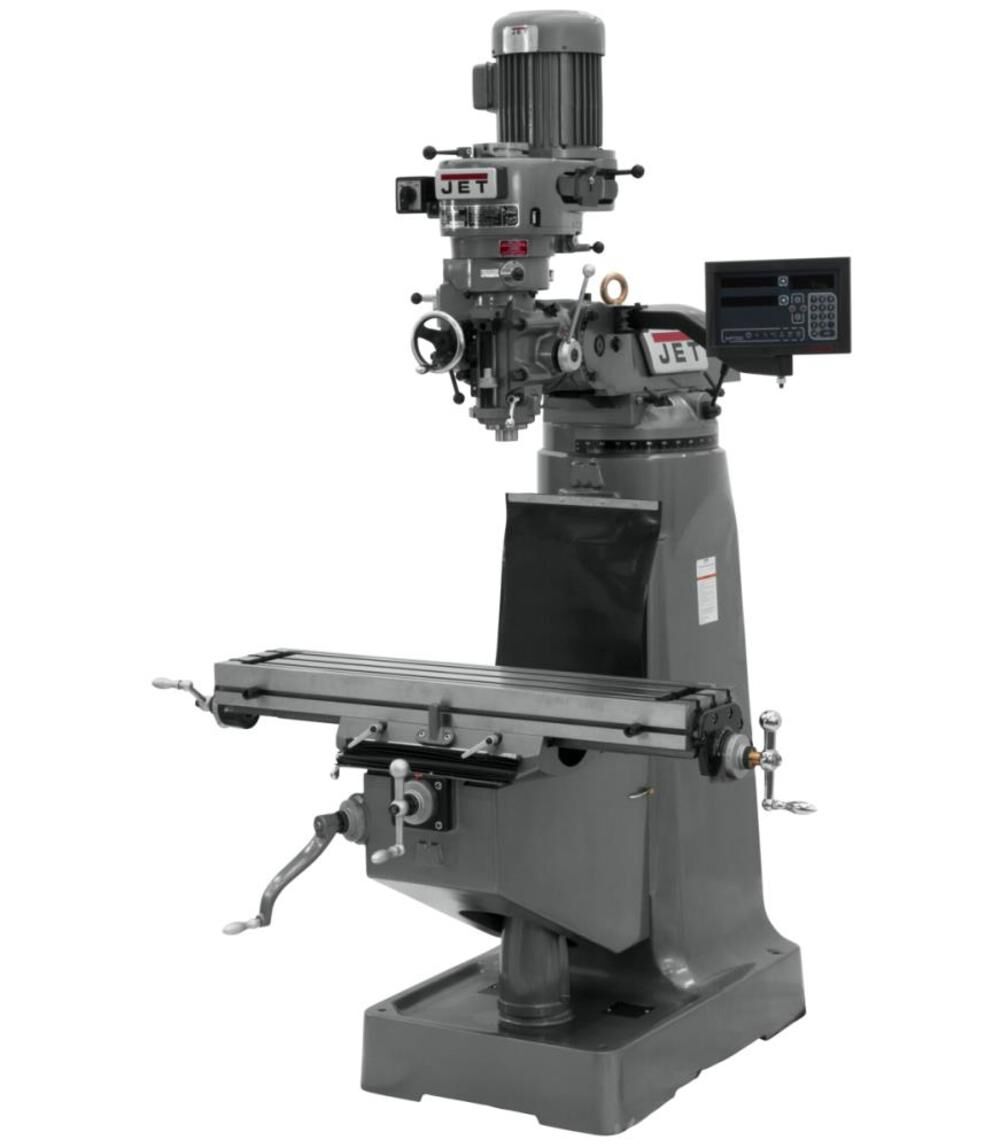

JET JTM-1 Mill with Newall DP700M 2-Axis DRO 2HP 230V 3 Ph

SKU# JT9-691187
4.9 out of 5 Customer Rating
See Price in Cart
Discounted Price Shown in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Delivery to -
- Est. Arrival - Est. Ship - Est. Arrival - Get it as soon as {0} Edit location
Add Zip Code
Pick Up at
Store Address -
Available within 4 hours
Contact Store:
Est. Email Delivery: within 24 hours
Made In USA
  Free Shipping (Ground shipping to lower 48)
JET JTM-1 Mill with Newall DP700M 2-Axis DRO 2HP 230V 3 Ph
See Price in Cart
Discounted Price Shown in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Qty
Secure Checkout
Affirm
Pay as low as $832/mo.
with Affirm

Product Details

JET JTM-1 Mill with Newall DP700M 2-Axis DRO 2HP 230V 3 Ph

Description

JET JTM-1 Mill with Newall DP700M 2-Axis DRO 2HP 230V 3 Ph

JET® milling machines and components provide consistent quality and performance year after year. Precision-built and designed to last, the complete line of JET® step pulley, variable speed and CNC mills allows your shop greater flexibility to meet the needs of any job. Professional manuals get you up and running, and every JET® machine is backed by our industry-leading two-year warranty.

View Warning Label

Features

Meehanite casting
Precision bored and honed milling head
Large diameter quill is chromed
High precision class 7 spindle bearings
Spindle head is internally cooled
Satin chrome finished dials
Heavy duty splined motor drive
One piece quill pinion and shaft
Three stage power downfeed with automatic stop
Heavy duty spindle brake

Specifications

Brand Name
JET
Assembled Weight (lbs)
2200
California Proposition 65 Warning Required
Yes
Capacity
550 Lbs
Chuck Design
Keyless
Color
Gray
Country of Origin
Taiwan
CSA Certified
No
Digital / Analog
Digital
ETL Listed
No
Head Tilt (Left Or Right)
90
Height (in)
82
Horsepower (hp)
2
Length
64 in

MFG Part # (OEM)
JT9-691187

Material
Cast Iron
Package Contents
JTM-1 Mill with Newall DP700M 2-Axis DRO 2HP 230V 3 Ph

Product Condition
New

Quill Diameter
3.375
RPM
80 - 5440
Stand Included
No
Switch Type
Push Button
UL Listed
No
Unit of Measurement
Metric

UPC
662755513435

Variable Speed
No
Voltage
230 Volts
Warranty Type
2 Years Limited
Weight (lbs)
2200
X Axis, Longitudinal (in)
23.875
Y Axis, Cross (in)
12.5
Z Axis, Knee (in)
0
