JLG ES3246 32 Foot Electric Slab Scissor Lift

SKU# ES3246
3.5 out of 5 Customer Rating
JLG ES3246 32 Foot Electric Slab Scissor Lift, large image number 0
JLG ES3246 32 Foot Electric Slab Scissor Lift, large image number 1
JLG ES3246 32 Foot Electric Slab Scissor Lift, large image number 2
JLG ES3246 32 Foot Electric Slab Scissor Lift, large image number 3
JLG ES3246 32 Foot Electric Slab Scissor Lift, large image number 4
JLG ES3246 32 Foot Electric Slab Scissor Lift, large image number 5
JLG ES3246 32 Foot Electric Slab Scissor Lift, large image number 6
JLG ES3246 32 Foot Electric Slab Scissor Lift, large image number 7
JLG ES3246 32 Foot Electric Slab Scissor Lift, large image number 8
JLG ES3246 32 Foot Electric Slab Scissor Lift, large image number 9
JLG ES3246 32 Foot Electric Slab Scissor Lift, large image number 10
JLG ES3246 32 Foot Electric Slab Scissor Lift, large image number 11
JLG ES3246 32 Foot Electric Slab Scissor Lift, large image number 12
JLG ES3246 32 Foot Electric Slab Scissor Lift, large image number 13
JLG ES3246 32 Foot Electric Slab Scissor Lift, large image number 14
JLG ES3246 32 Foot Electric Slab Scissor Lift, large image number 15
JLG ES3246 32 Foot Electric Slab Scissor Lift, large image number 16
Previous Next
+ 12 more
Call for Pricing Information: 833-860-7137
Made In USA
Flatbed Trucking Rates Apply
Affirm
Pay over time
with Affirm on orders below $17,500

Product Details

JLG ES3246 32 Foot Electric Slab Scissor Lift
JLG

Please follow our Community Guidelines and be kind!

Description

JLG ES3246 32 Foot Electric Slab Scissor Lift

This new JLG ES3246 32 Ft. electric scissor lift offers an environmentally friendly solution without compromising the power needed on the job site. Its refreshed design features an electric drive, for up to double the battery life of a standard scissor. Reduce operating costs with electric drive and integrated components containing reduced hydraulic hoses and hydraulic fittings on the entire machine. Meaning, increased uptime as well as fewer leaks and service calls. Work in sensitive areas with optional CleanGuard leak containment system. Features a standard USB charger and phone holster, improving the operator experience while delivering a high degree of commonality with other JLG® scissors, simplifying service. The indoor platform capacity is 705 lb, and the outdoor platform capacity is 507 lb. Located at Acme Equipment-3401 Gateway Drive, Grand Forks, ND 58203.

California Proposition 65 Warning.

Manuals

Warranty - PDF
Specification - PDF

Features

Run Longer on a Single Charge: Delivers double the battery life.
Work in Sensitive Areas: Available CleanGuard leak containment system allows for work on sensitive flooring.
Reduce Operating Costs: Electric drive and integrated components with reduced hydraulic components on the entire machine lower the chances for leaks and service calls to keep you on the job longer.
Standard LED motion/amber beacon with ClearSky Smart Fleet™ connectivity hardware.
27A Multi-function universal charger, AC receptacle in platform, active pothole protection system, all motion alarm, analyzer port for diagnostics, battery condition indicator, CAN-enabled charger.
Diamond tread steel deck, dynamic braking, electric drive, foot-actuated deck extension, fork lift pockets, greaseless kingpin joints, horn, hourmeter, lanyard attach points.

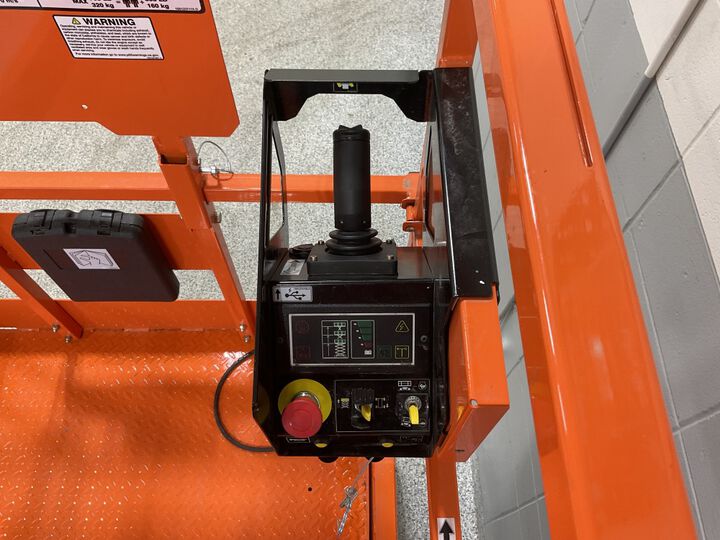

Lifting and tie down points, load sensing system, lubrication free scissor arm bushings, manual descent cable, movable, removable platform control, nickel plated pins, proportional controls, quikfold rails.
Removable ladder, scissor maintenance prop, self-closing gate, steel swing-out doors, tilt alarm and light, USB charger & phone holder, variable tilt visual zone indicator.

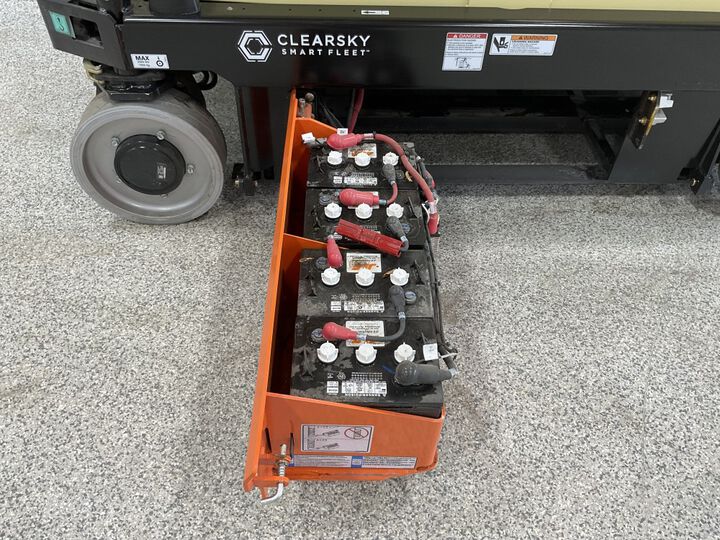

Drive speed elevated - 0.5 Mph, Drive speed lowered - 3 Mph, Lift/lower time (no load) - 50/44 Seconds (indoor/outdoor), Lift/lower time (rated load) - 58/37 Seconds (indoor/outdoor), Maximum drive height - Fully elevated. Power source: 4 x 6V 220Ah battery.
Located at Acme Equipment-3401 Gateway Drive, Grand Forks, ND 58203.

Specifications

Brand Name
JLG
Assembled Weight (lbs)
5620
Battery Ampere-hour (Ah)
220
Capacity
Hydraulic: 3.2 Gallon
Country of Origin
Mexico
Drive Motor System
Electric
Ground Clearance (in)
4

MFG Part # (OEM)
ES3246

Number of Batteries Required
4
Package Contents
(1) Scissor Lift
Platform Length (in)
84
Platform Width (in)
41.6

Product Condition
New

Restrictions
CA Prop 65
Size
8 Ft. Machine Height x 7 Ft. 10 In. Machine Length x 3 Ft. 10 In. Machine Width, 50.9 In. Platform Height (Lowered), 44.6 In. Platform Railing Height, 41.6 In. Platform Width x 84 In. Platform Length, 36 In. Platform Extension
Tire Size
16 x 5 In.
Turning Radius (in)
93 (Outside)

UPC
405032000040

Warranty Type
1 Year
Weight (lbs)
5620
