Johnson Level 635 nm Electronic Self-Leveling Horizontal and Vertical Rotary Laser

Johnson Level

Please follow our Community Guidelines and be kind!

Description

Johnson Level 635 nm Electronic Self-Leveling Horizontal and Vertical Rotary Laser

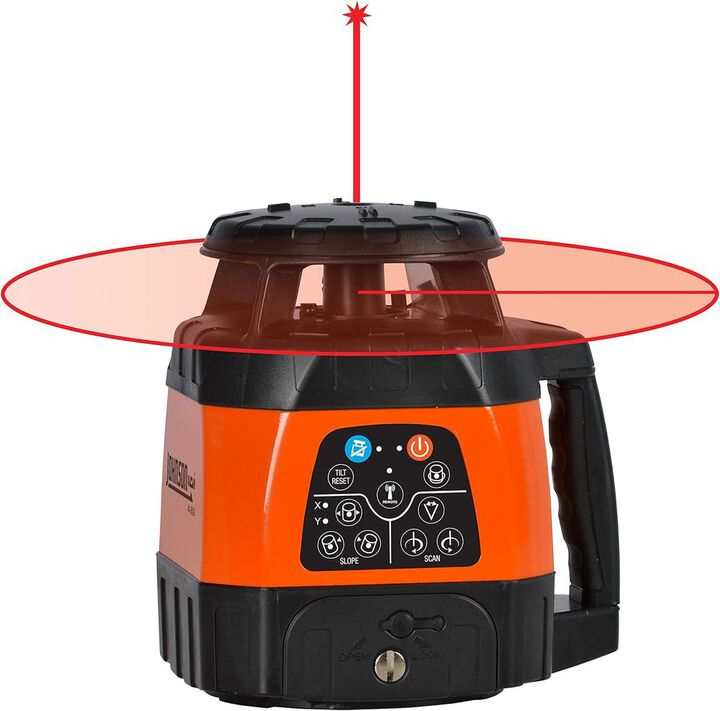

Designed for the advanced laser user, this rotary laser is feature-packed to tackle any job - indoor or outdoor. It self-levels both horizontally and vertically, making vertical layout projects such as fencing, footings and drywall track quick and easy. Its electronically controlled dual-slope mode takes math out of the equation when checking grade or setting drainage. And the laser beam modes include dot, two adjustable line lengths and two rotational speeds (300 & 800 Rpm).

California Proposition 65 Warning.

Manuals

Use and Care Manual - PDF

Instructions / Assembly - PDF

Features

Designed for indoor and outdoor applications.

Electronically-controlled dual slope feature.

Electronic self-leveling horizontally and vertically.

Laser beam modes include dot, two adjustable line lengths and two rotational speeds.

Two rotational speeds: 300 & 800 Rpm.

Visual and audible alarms when beyond leveling range.

Height of instrument/tilt alarm function ensures product accuracy.

Laser Wavelength: 635 nm±10 nm (Red), Laser Classification: Class IIIA, Maximum Power Output: ≤5mW, Center Screw Thread: 5/8 In. - 11

Interior Range: Up to 200 Ft. diameter depending upon light conditions, Exterior Range: Up to 1500 Ft. diameter with detector (included in 40-6529 & 40-6534), Remote Range: Up to 200 Ft. diameter, Slope: ±5 degrees, Auto-Leveling Range: ±5 degrees

Scanning Modes: 0 deg, 30 deg, 60 deg, IP Protection Class: IP54, Power Supply: 4"C" alkaline batteries (included in 40-6526)
