K2 Pumps Effluent Pump 3/4 HP Cast Iron with Piggyback Tethered Switch

SKU# SWF07501TPK
3.9 out of 5 Customer Rating
K2 Pumps Effluent Pump 3/4 HP Cast Iron with Piggyback Tethered Switch, large image number 0
K2 Pumps Effluent Pump 3/4 HP Cast Iron with Piggyback Tethered Switch, large image number 1
K2 Pumps Effluent Pump 3/4 HP Cast Iron with Piggyback Tethered Switch, large image number 2
K2 Pumps Effluent Pump 3/4 HP Cast Iron with Piggyback Tethered Switch, large image number 3
K2 Pumps Effluent Pump 3/4 HP Cast Iron with Piggyback Tethered Switch, large image number 4
K2 Pumps Effluent Pump 3/4 HP Cast Iron with Piggyback Tethered Switch, large image number 5
K2 Pumps Effluent Pump 3/4 HP Cast Iron with Piggyback Tethered Switch, large image number 6
Previous Next
+ 2 more
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Delivery to -
- Est. Arrival - Est. Ship - Est. Arrival - Get it as soon as {0} Edit location Add Zip Code
Pick Up at
Store Address -
Available within 4 hours
Contact Store:
Est. Email Delivery: within 24 hours
Made In USA

K2 Pumps Effluent Pump 3/4 HP Cast Iron with Piggyback Tethered Switch
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Qty
Secure Checkout
Affirm
Pay over time
with Affirm on orders over $150

Product Details

K2 Pumps Effluent Pump 3/4 HP Cast Iron with Piggyback Tethered Switch
K2 Pumps

Please follow our Community Guidelines and be kind!

Description

K2 Pumps Effluent Pump 3/4 HP Cast Iron with Piggyback Tethered Switch

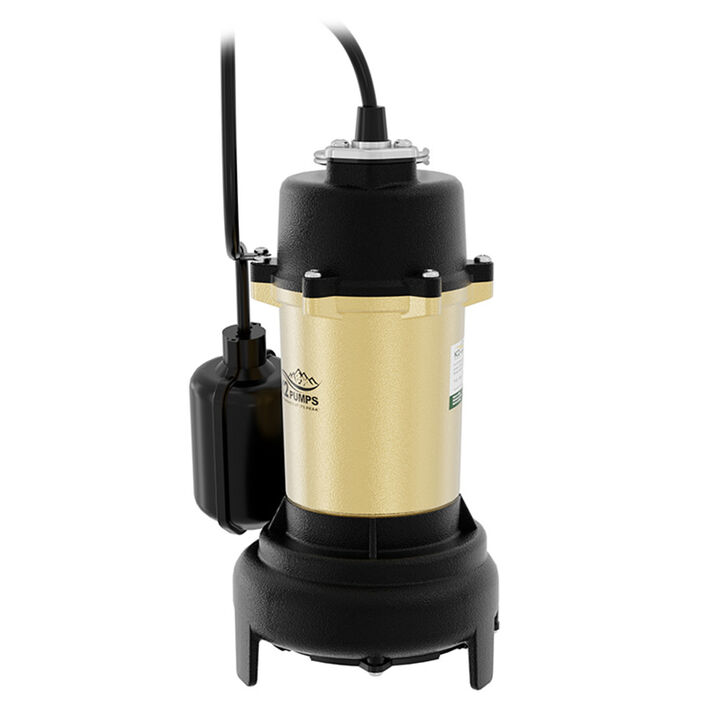

The K2 Pumps 3/4 HP Effluent Pump is constructed of heavy-duty cast iron which is ideal for applications requiring a rugged submersible pump. The innovative Quick-Connect fitting features a metal ring with teeth that firmly grip PVC pipes. This allows for installation in minutes by eliminating the need for PVC primer, glue or plumber's tape. The pump discharges up to 4,500 gallons per hour (GPH) at 0' of lift, with a maximum lift of 40'. It features a non-clog vortex impeller that will handle 3/4" solids. The piggyback tethered float switch allows for automatic or manual operation. The energy-efficient, oil-filled PSC motor extends the life of the pump. Comes with a 2" female NPT discharge and 25' power cord.

California Proposition 65 Warning.

Manuals

Use and Care Manual - PDF
Warranty - PDF
Specification - PDF

Features

Constructed of heavy-duty cast iron
Discharges up to 4,500 GPH at 0' of lift, with a maximum lift of 30'

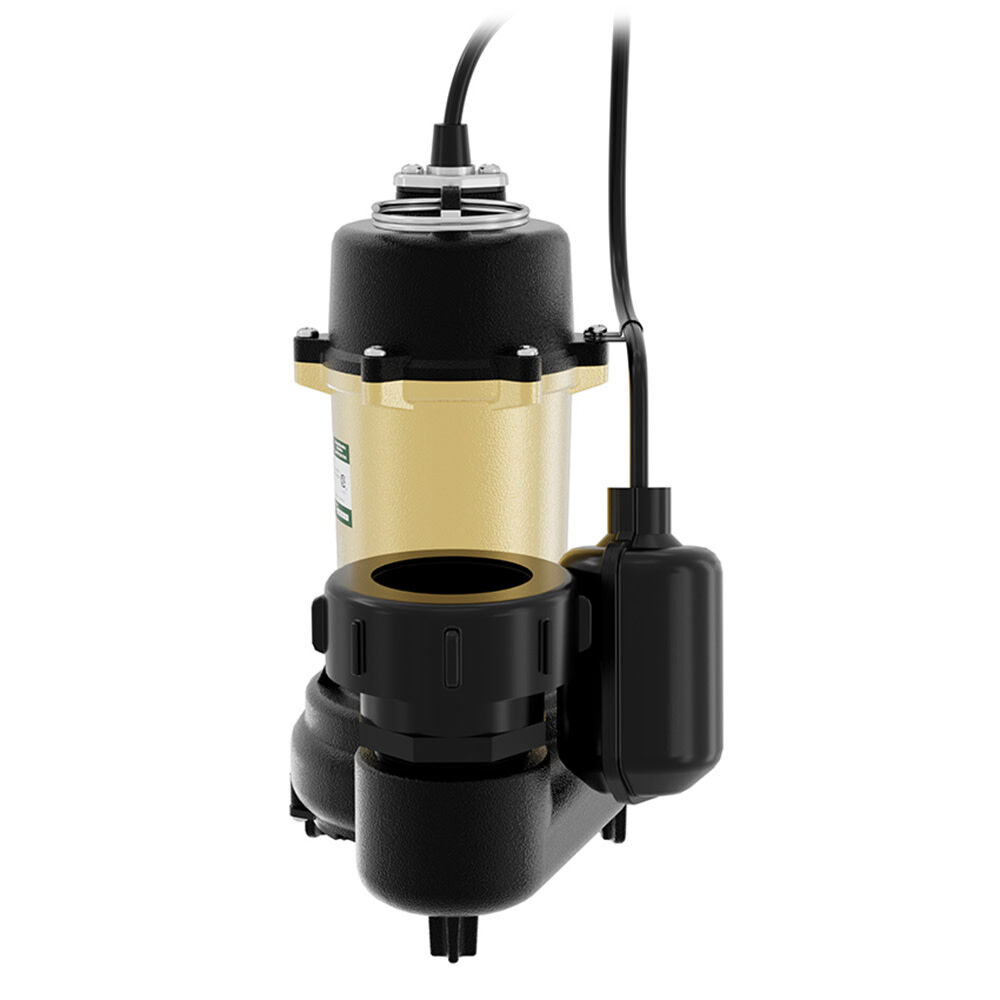

Includes a Quick Connect fitting which eliminates the need for PVC primer, glue or plumber's tape
Non clog vortex impeller handles up to 3/4" solids
2" FNPT Discharge and 25' power cord
K2 Pumps Effluent Pump 3/4 HP Cast Iron with Piggyback Tethered Switch

Specifications

Brand Name
K2 Pumps
Amperage (A)
9.4
Assembled Weight (lbs)
22.05
Capacity
4500 GPH
Country of Origin
China
CSA Certified
Yes
Flow Rating (gpm)
75
Height (in)
12.24
Horsepower (hp)
0.75
Impeller Material
Thermoplastic
Inlet Size (in)
2" FNPT (with 2" Quick Connect Fitting)
Length
25 ft

MFG Part # (OEM)
SWF07501TPK

Material
Cast Iron
Materials Handled
3/4" Spherical
Maximum Pumping Height (Ft.)
40
Outlet Size (in)
2" FNPT (with 2" Quick Connect Fitting)
Package Contents
Pump, 2" quick connect fitting

Product Condition
New

Restrictions
No Restrictions
Submersible
Yes
Switch Type
Tethered

UPC
6948217090008

Warranty Type
2 Years Limited
