Land Pride BB1572 72 Inch Box Scraper for Kubota 17-40HP B, L Series Tractors

Land Pride

Please follow our Community Guidelines and be kind!

Description

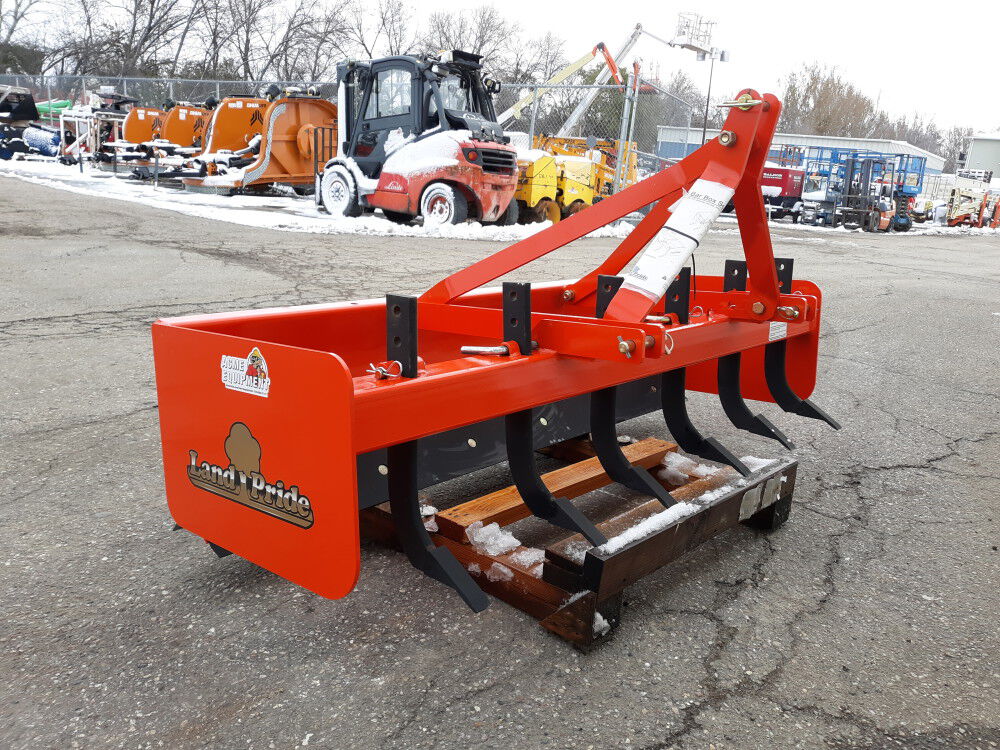

Land Pride BB1572 72 Inch Box Scraper for Kubota 17-40HP B, L Series Tractors

This new Land Pride BB1572 72 In. box scrapers is designed for use with Category 1 3-point hitches or quick-hitch systems on tractors in the 40HP range. Ideal for ripping, leveling, finish grading, and backfilling applications at feedlots, outdoor arenas, and building sites, and for maintenance operations on farm and ranch lanes or roadways. The roll-formed moldboard keeps materials flowing which puts less drag on the Box Scraper, resulting in lower HP requirements and faster working conditions while the rear backfill blade allows for backfilling trenches or along foundations. With a capacity of 14.7 Cu-Ft., it's built for tough jobs. Located at Acme Equipment-3401 Gateway Drive, Grand Forks, ND 58203.

California Proposition 65 Warning.

Manuals

Use and Care Manual - PDF

Warranty - PDF

Specification - PDF

Features

Quick-hitch compatible - Our Quick-Hitch System allows you to quickly connect and disconnect from the implement - most without leaving the tractor seat. This is a real time saver when working on multiple projects. Heat-treated, reversible, and replaceable cutting blades - Heat-treated for hardness. Reversible so both edges can be used before replacing the cutting blades.

Heavy side panels - 5-16 In. & 3/8 In. (8 & 10 mm) built heavy to handle the tough jobs. Rear backfill blade - Rear backfill blade allows for backfilling trenches or foundations.

Square tubing shank support - Many competitors use angle iron. Box tubing is stronger. Category 1 3-point hitch with Quick Hitch capability - Fits a wide variety of tractors. Quick Hitch capability allows for easy hook-up.

Clevis-type lower 3-point hitch - Much stronger than pin type hitch. Heavy 4 In. x 4 In. x 5/16 In. front beam with 5/16 In. x 1 In. shank hole reinforcement - Reinforcement adds additional strength to shank tube right behind shank where maximum pressure is applied.

4 Position heat treated spring steel shanks - Offers flexibility for deep to shallow settings and Heat-treated for longevity. Strong bucket reinforcement BB15 series - Two welded braces extending from front to rear of bucket help keep the Box Scraper square under heavy loads.

Horsepower range - 17-40HP (13-30 kW), for Kubota 17-40HP B, L Series Tractors.

Roll-formed moldboard - Roll-formed moldboard keeps materials flowing which puts less drag on the box scraper, resulting in lower horsepower requirements and faster working conditions.

17 In. (43 cm) Moldboard height - High material capacity.

Moldboard - Heavy moldboard holds its shape under heavy loads.

Heat treated dimpled-on tips - Easy to replace tips that are heat treated for toughness. Number of shanks - 6.
