MAX USA PowerLite 500 PSI 2HP 3.3 CFM/3 CFM High Pressure Air Compressor

Name: MAX USA PowerLite 500 PSI 2HP 3.3 CFM/3 CFM High Pressure Air Compressor
Brand: MAX USA
SKU: AKHL1320E
Price: 1519.35 USD
Availability: InStock

SKU# AKHL1320E

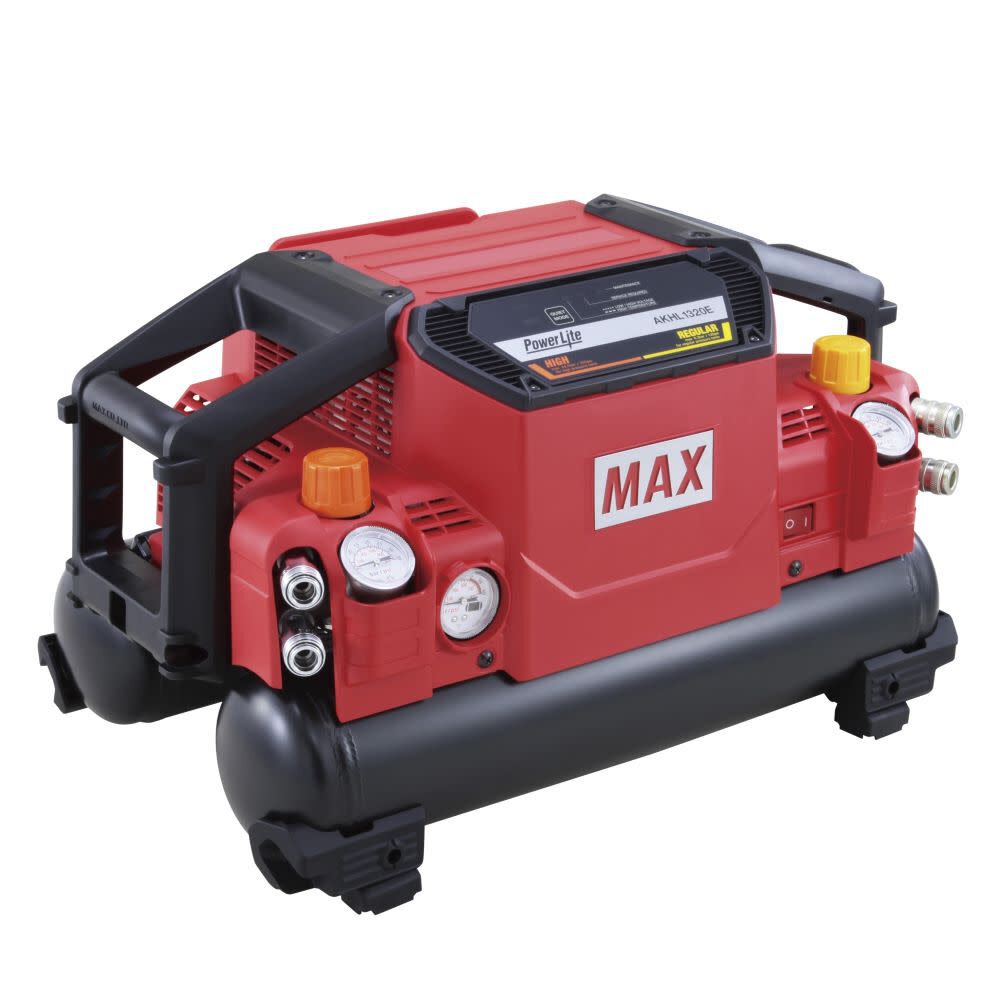

MAX USA PowerLite 500 PSI 2HP 3.3 CFM/3 CFM High Pressure Air Compressor, large image number 0

MAX USA PowerLite 500 PSI 2HP 3.3 CFM/3 CFM High Pressure Air Compressor, large image number 1

MAX USA PowerLite 500 PSI 2HP 3.3 CFM/3 CFM High Pressure Air Compressor, large image number 2

MAX USA PowerLite 500 PSI 2HP 3.3 CFM/3 CFM High Pressure Air Compressor, large image number 3

MAX USA PowerLite 500 PSI 2HP 3.3 CFM/3 CFM High Pressure Air Compressor, large image number 4

MAX USA PowerLite 500 PSI 2HP 3.3 CFM/3 CFM High Pressure Air Compressor, large image number 5

Acme Tools Guarantee

Qty

(Max. order of 1,000)

Secure Checkout

Product Details

MAX USA PowerLite 500 PSI 2HP 3.3 CFM/3 CFM High Pressure Air Compressor

MAX USA

Please follow our Community Guidelines and be kind!

Description

MAX USA PowerLite 500 PSI 2HP 3.3 CFM/3 CFM High Pressure Air Compressor

The MAX AKHL1320E is an ultra quiet, safety equipped dual tank 2.64 gallon lightweight air compressor. Our New Pat P. Outer rotor motor design generates more torque at slower speed, which enables the compressor to have more Cfm (3.0 Cfm @300 Psi) and operate quieter. The AKHL1320E is able to compress air up to 500 Psi. This compressor can operate in low voltage scenarios. MAX is committed to manufacturing reliable compressors that have been designed to deliver enhanced performance while making sure that users can carry out safe operations.

California Proposition 65 Warning.

Manuals

Use and Care Manual - PDF

Specification - PDF

Features

Improved design - The ventilation window is protected with the new handle grip which is secured with 4 bolts

Improved continuous fastening ability - The AKHL1320E has a 2.64 Gal. Air tank capacity, which is 15% more air volume than the AKHL1260E. The outer rotor motor design generates more torque at slower speed

Easy connect - Easily connect AKTH15 (3.96 gallon) bottom tank to upgrade to 5 air tanks

Lightweight and compact - At 38.9 Lbs dual handled high pressure compressor can be transported with minimal effort and minimal fatigue on the body

Whisper quiet operation - LED Horizontal Pistons in the motor creates less vibration than a V-shaped piston compressor. Motor floating mechanism absorbs vibrations and minimizes noise. Quiet mode lowers the rotation speed of the motor when working in confined spaces or in "quiet" areas like apartment buildings, schools or hospitals

Easy start features - The motor is designed to operate down to -4 deg F. Circuit inverter will manage and monitor the electrical current traveling through the compressor preventing breakers from shutting down even in low supply areas. DC Brushless motor has more starting power than a generic motor that is used for conventional compressors

Compatible with 500 Psi and 100 Psi tools - Has 2 connections for 100 psi tools and 2 connections for 500psi tools. Both tools can be used with this compressor

Air delivery Scfm @ 300 Psi - 3 Cfm, Air delivery @ 100 Psi

Lubrication type - Oil less

Motor Rpm - 2450 (Normal mode)/1400 (Quiet mode)

Specifications

Brand Name

MAX USA

Amperage (A)

Assembled Weight (lbs)

38.9

Compressor Design

Horizontal (Stationary)

Country of Origin

China

Horsepower (hp)

MFG Part # (OEM)

AKHL1320E

Maximum Air Pressure (psi)

500

Maximum Amperage (A)

Maximum Pressure Rating (psi)

500

Maximum RPM

2450 (Normal Mode), 1400 (Quiet Mode)

Operating Position

Horizontal

Package Contents

Air Compressor

Product Condition

New

Restrictions

CA Prop 65

Size

13-1/4 In. Height x 14 In. Width x 22-1/2 In. Length

Tank Capacity (gal)

2.64

UPC

401000010424

Warranty Type

1 Year Limited

Weight (lbs)

38.9

Wheeled

MAX USA PowerLite 500 PSI 2HP 3.3 CFM/3 CFM High Pressure Air Compressor
