Milescraft Hardware Jig
Milescraft

Please follow our Community Guidelines and be kind!

Description

Milescraft Hardware Jig

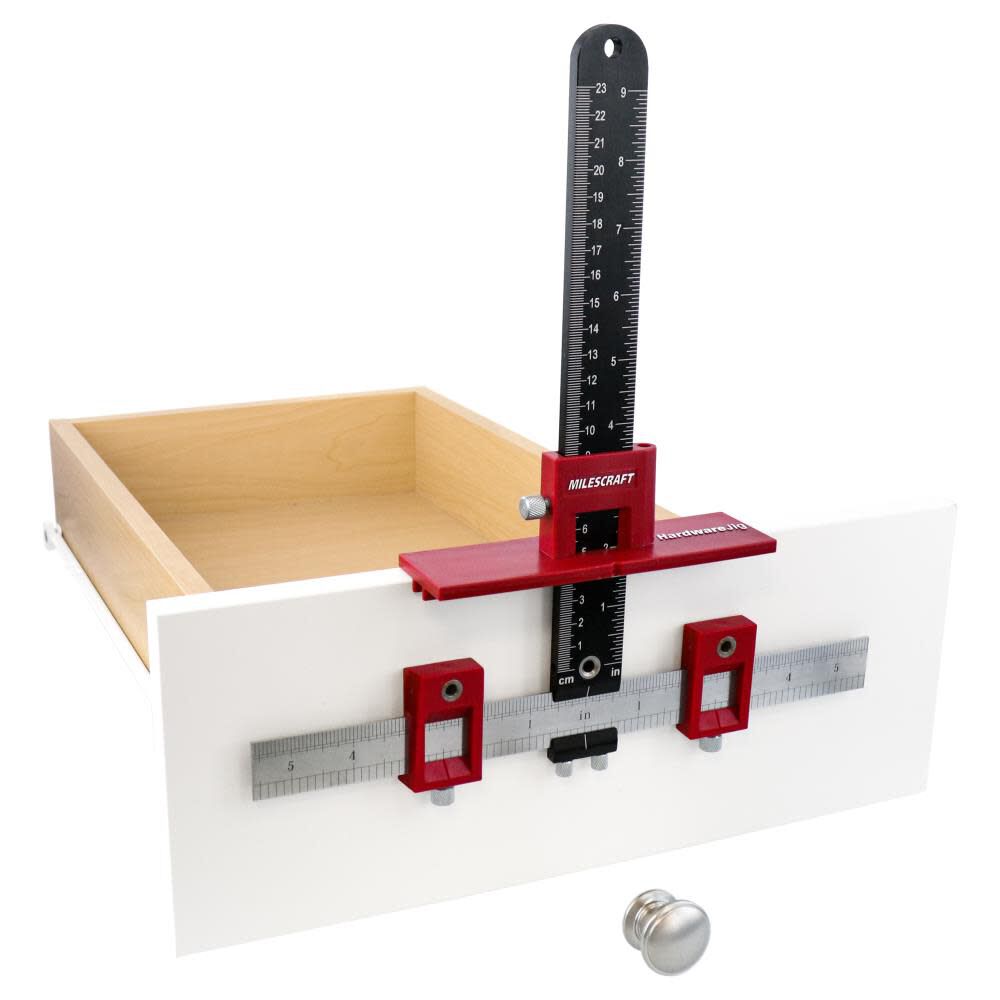

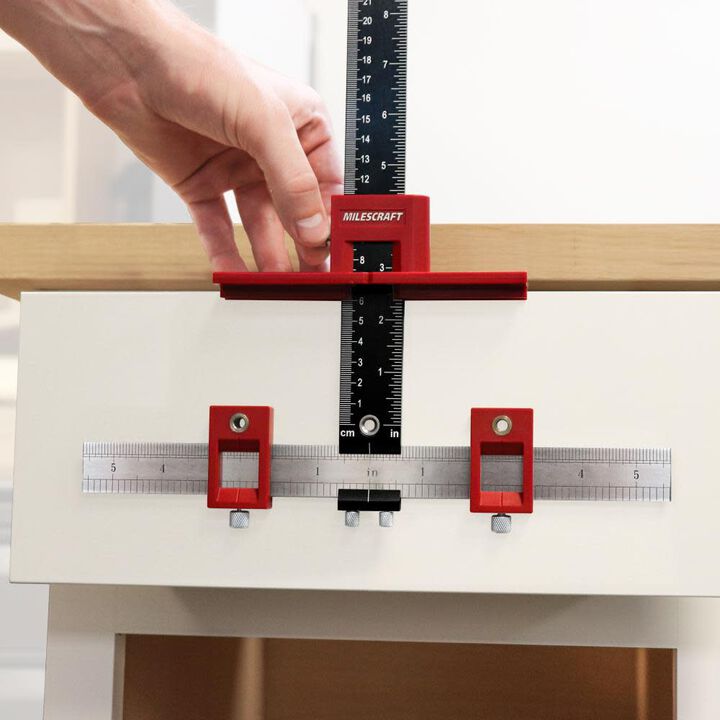

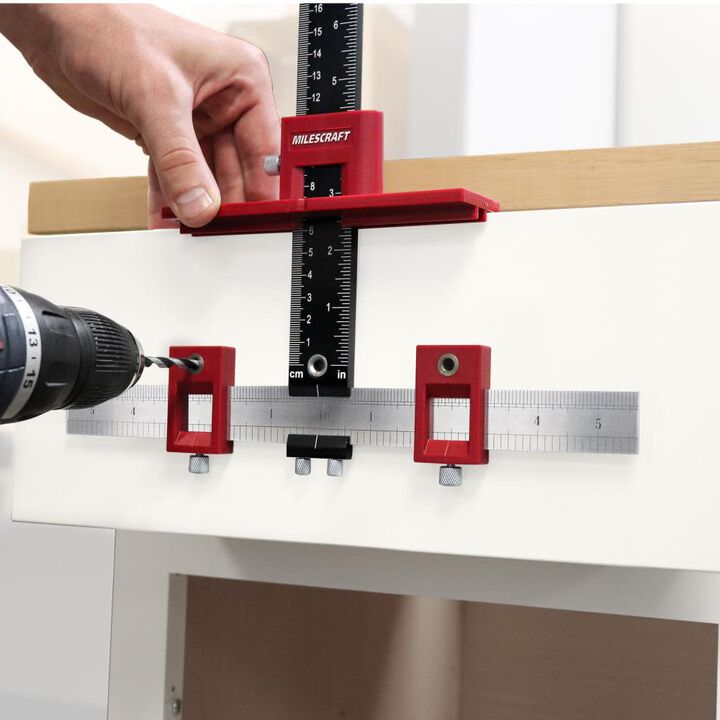

The Milescraft 1340 HardwareJig makes it easy to install cabinet and drawer handles, knobs & pulls. You can lock sliding stops in place to align jig and repeat drilling on multiple drawers or cabinet doors. The reversible design will allow you to transfer jig from left to right door while the hardware will stay locked in. Three 5mm( 3/16in.) bushings will create accurate, straight holes in your door. You can install pulls and handles from 1-1/4in to 10in. long. The jig includes 5mm drill bit. The black vertical ruler has both dimensions included- Metric and Imperial. The silver horizontal rules can be reversed to show metric dimensions on the back and imperial on the front. The black ruler has a hole on the top so you can store your jig by hanging it in your wood or tool shop.

California Proposition 65 Warning.
View Warning Label

Features

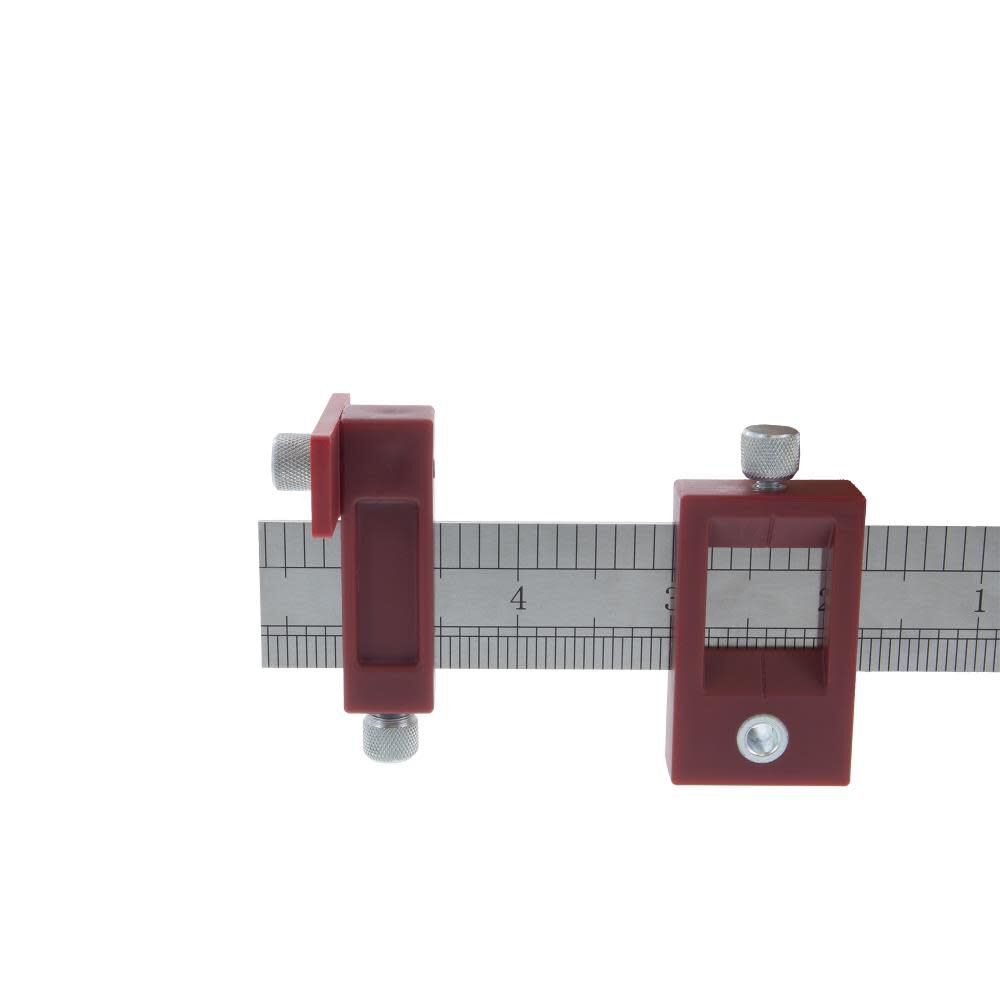

Adjustable sliding stops lock in place to align the drill guide and repeat drilling on multiple pieces
Reversible design allows you to transfer drilling guide jig from left door to right with a simple flip, keeping hardware position locked in
Three steel 5mm (3/16”) bushings create accurate, straight holes and are designed to last
Centering notches align cabinet template to center marks for perfect placement when installing drawer knobs
Install pulls and handles from 1-1/4” to 10” long

Specifications

Accessory Type
Cabinet Hardware Jig
Brand Name
Milescraft
Assembled Weight (lbs)
1.05
California Proposition 65 Warning Required
Yes
Country of Origin
China

MFG Part # (OEM)
1340

Material
Steel and Plastic
Package Contents
Hardware Jig

Product Condition
New

Size
N/A

UPC
737888134007

Warranty Type
3 Years Limited
Weight (lbs)
1.05
