Milescraft HingeJigPLUS Self-Clamping Door and Hinge, Latch, and Strike Plate Jig

Milescraft

Please follow our Community Guidelines and be kind!

Description

Milescraft HingeJigPLUS Self-Clamping Door and Hinge, Latch, and Strike Plate Jig

The HingeJigPLUS™, by Milescraft, is a one-stop solution for door installation work. The jig routs and installs door and jamb / frame hinges, latches, and strike plate mortises quickly and accurately. The included bonus PinDoctor™ even assists in removing your old door. The dual-clamping design of the HingeJigPLUS™ mounts quickly and holds firm to ensure cuts are clean and accurate. No need for screws or nails which can damage your door. Built for North American style hardware.

California Proposition 65 Warning.

Manuals

Instructions / Assembly - PDF

Features

Self-Clamping: Padded, dual self-clamping design sets up quickly and prevents damage to doors caused by mounting screws or nails.

Fits All Doors: Adjustable settings allow jig to be used on all standard size 1-3/8 In. and 1-3/4 In. thick doors.

Works with Multiple Hinge Sizes: Rout door hinge mortises for 2-1/2 In. to 4-1/2 In. hinges.

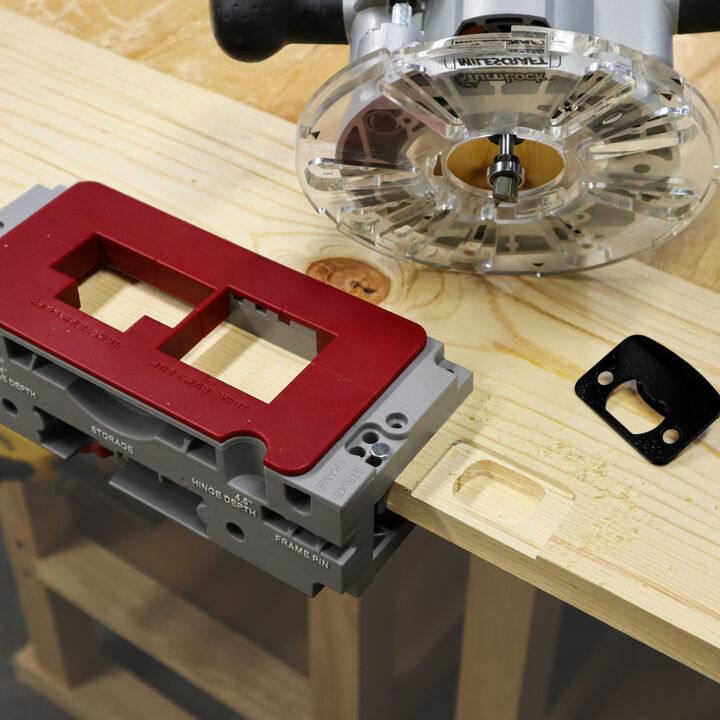

Compatible with Frame/Jamb: Reconfigure HingeJigPLUS™ to rout hinges and strike plates on frame/jamb.

Rout Different Radiuses: Cut professional hinge mortises with 1/4 In., 5/8 In., or square corners. (Chisel Required)

Drop in Latch Templates: Includes additional templates to rout common door latch mortises sized 1 In. x 2-1/4 In. , 1-1/8 In. x 2-1/4 In., and 1-1/8 In. x 2-3/4 In. Drop in Strike Plate Templates: Rout 1-1/2 In. x 2-1/4 In. and 1-1/8 In. x 2-3/4 In. strike plates.

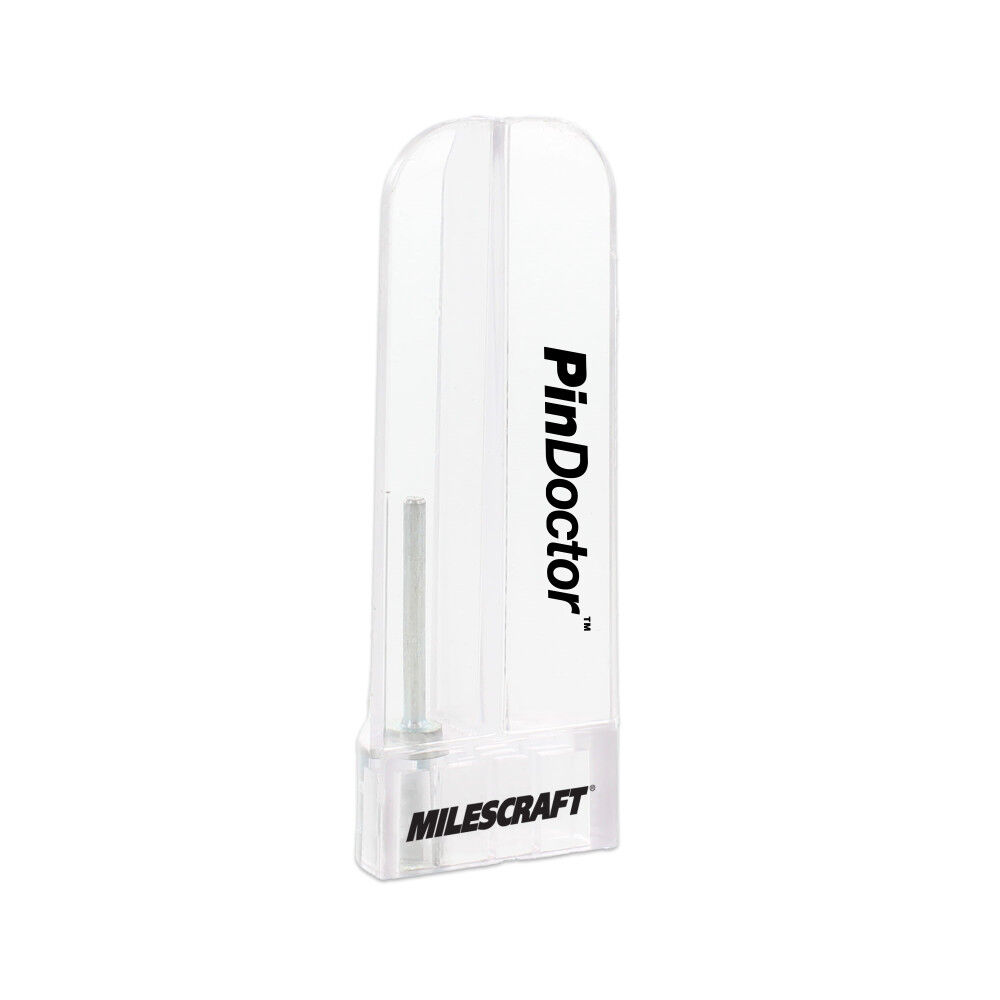

Bonus PinDoctor™: Included hinge pin removal tool helps remove existing doors.

Built in Depth Setting: Set router bit depth with built-in depth setting gauge for smaller or larger size door hinges.

Built-in Storage: Contains built in storage compartments for router bit and available self-centering hinge bit (not included) for convenient retrieval.

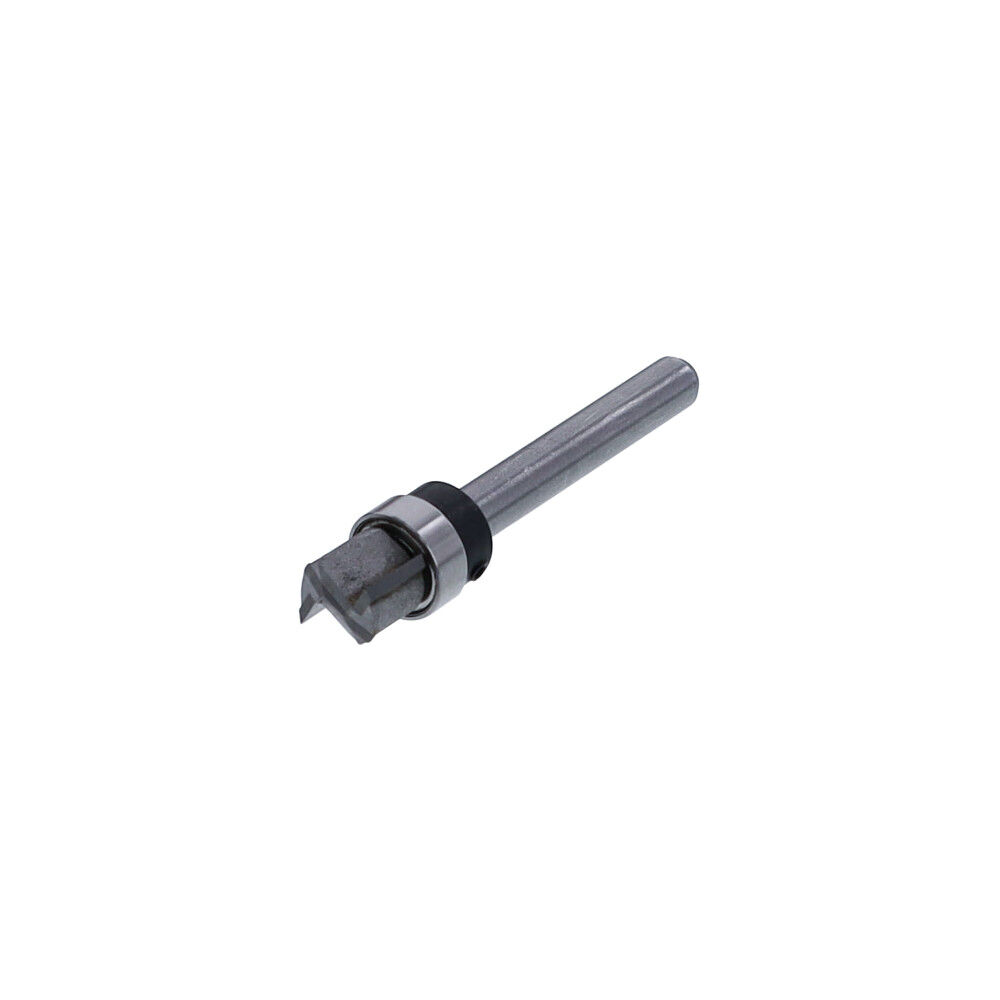

Self-Guided Router Bit: Includes custom router bit with ball bearing to cut clean and smooth door hinge mortises.

Specifications

Brand Name

Milescraft

Assembled Weight (lbs)

2.16

Compatibility

Door Thickness: 1-3/8 In. and 1-3/4 In. Doors

Country of Origin

China

MFG Part # (OEM)

1229

Package Contents

(1) Jig Main Body, (2) Built-in Clamps, (1) Bonus PinDoctor™, (1) Adjustable Hinge Spacer, (1) 12 mm Router bit with Bearing, (2) Corner Radius Inserts, (2) Adjustable Backset Plugs, (2) Frame/Jamb Indexing Pins, (2) Latch Templates, (1) Strike Plate Template

Product Condition

New

Restrictions

CA Prop 65

Size

Latch: 1 In. x 2-1/4 In., 1-1/8 In. x 2-1/4 In., 1-1/8 In. x 2-3/4 In., Door Hinge: 2-1/2 In., 3 In., 3-1/2 In., 4 In., 4-1/2 In., Strike Plate: 1-1/2 In. x 2-1/4 In. and 1-1/8 In. x 2-3/4 In.
