Next Wave CNC Rotary 4th Axis System
Next Wave CNC

Please follow our Community Guidelines and be kind!

Description

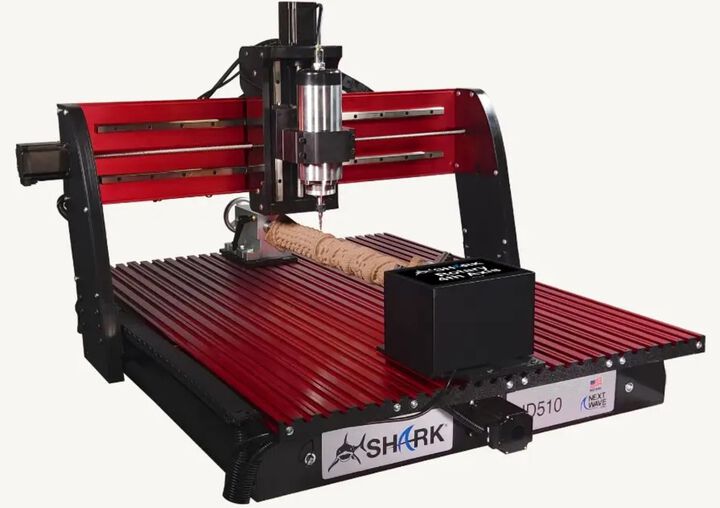

Next Wave CNC Rotary 4th Axis System

The CNC Shark 4th axis gives you the ability to create precision designs that will astonish your clients. Use it to make pens, game pieces, tools, or kitchen gadget handles from one of the many kits available from popular Woodworking Stores. With a virtually plug-and-play design, the CNC Shark Rotary 4th axis includes predrilled base plates that easily bolt to your existing shark bed. The kit includes a precision 4-jaw chuck and a fully adjustable tailstock with live center and an expansion driver card for your CNC Shark controller. Simple installation is required. Included: Precision 4 Jaw chuck. Tailstock with live center. Equipped with a data port. U.S.-based technical support. 1 Year Warranty.

California Proposition 65 Warning.

Features

1 year Warranty
U.S. Based Technical Support
Headstock is 9 1/2" long, which can be mounted on the table outside of the cut area. Tailstock is just under 8" long. When mounted, these will support a cut piece with a maximum length of 6 1/2" less than the Y axis. It is also possible to mount diagonally, increasing that a bit.
Maximum workpiece diameter is 3.25" at the standard gantry setting increasing up to 5.6" with the gantry at highest setting.
4th axis driver card compatible with HD4, HD5, HD5xx, and HD6 series Next Wave CNC machines
Software required for the 4th axis controller port to be active to facilitate the CNC Shark stepper motor drive kit.
High Precision, motorized 4th axis controller that can be mounted on the tabletop on any HD CNC Shark System.

Specifications

Brand Name
Next Wave CNC
Assembled Weight (lbs)
20
Country of Origin
China
Package Contents
(1) Rotary 4th Axis System

Product Condition
New

Warranty Type
1 Year
Weight (lbs)
25
