Powermatic 15BHH 15 Inch 3 HP 1PH 230V Planer

Name: Powermatic 15BHH 15 Inch 3 HP 1PH 230V Planer
Brand: Powermatic
SKU: PM1-477
Price: 4399.99 USD
Availability: InStock

SKU# PM1-477

Powermatic 15BHH 15 Inch 3 HP 1PH 230V Planer, large image number 0

Powermatic 15BHH 15 Inch 3 HP 1PH 230V Planer, large image number 1

Powermatic 15BHH 15 Inch 3 HP 1PH 230V Planer, large image number 2

Powermatic 15BHH 15 Inch 3 HP 1PH 230V Planer, large image number 3

Powermatic 15BHH 15 Inch 3 HP 1PH 230V Planer, large image number 4

Powermatic 15BHH 15 Inch 3 HP 1PH 230V Planer, large image number 5

Powermatic 15BHH 15 Inch 3 HP 1PH 230V Planer, large image number 6

Powermatic 15BHH 15 Inch 3 HP 1PH 230V Planer, large image number 7

+ 3 more

Acme Tools Guarantee

Qty

(Max. order of 1,000)

Secure Checkout

Product Details

Powermatic 15BHH 15 Inch 3 HP 1PH 230V Planer

Powermatic

Please follow our Community Guidelines and be kind!

Description

Powermatic 15BHH 15 Inch 3 HP 1PH 230V Planer

The Powermatic, 15BHH, PM1-477, 15-inch planer is designed for woodworking shops that require industrial durability in a versatile, stationary format. Powered by a 3 HP, 230V, 1 PH motor, this planer delivers consistent cutting performance for hardwoods and softwoods alike. Its 15-inch cutting width and 6-inch maximum thickness capacity provide the flexibility to surface a wide range of stock. A four-row helical cutterhead with 48 four-sided carbide inserts operating at 5200 RPM produces a refined surface finish with reduced noise and extended insert life, while convenient cutterhead access simplifies insert rotation and replacement. The built-in digital readout allows accurate, repeatable thickness adjustments, and two feed speeds of 16 and 28 FPM give operators the choice between efficient stock removal and finer finishing passes. Heavy cast iron tables with a full 48-inch table surface provide rigidity and vibration reduction for consistent results. A 4-inch bi-directional dust port supports effective chip evacuation with a 900 CFM requirement, while the upgraded caster locking and braking system and oversized emergency stop enhance shop mobility and operator safety.

California Proposition 65 Warning.

Features

Caster Locking and Braking System - Provides mobility when needed and stability during operation

Height Adjustment Handle - Smooth, controlled table movement for accurate depth setting.

Two Speed Feed Rate - Allows selection between faster stock removal or finer finish cuts.

Digital Read Out (DRO) - Accurate, repeatable thickness adjustments for precision planing.

4 Inch Bi-Directional Dust Port - Efficient chip evacuation with flexible dust collection setup.

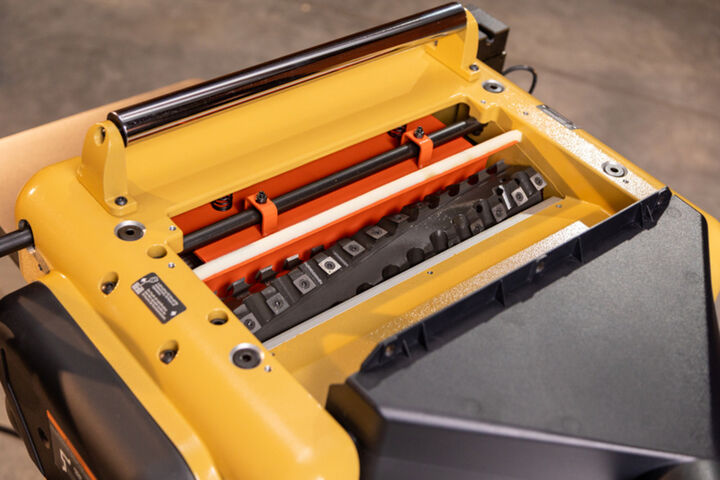

Cutterhead Access for Insert Change or Rotation - Simplifies maintenance and reduces downtime when rotating or replacing inserts.

True Helical Cutterhead - Delivers quieter operation, improved surface finish, and longer insert life.

Solid Cast Iron Infeed and Outfeed Tables - Provides stability, reduces vibration, and supports long boards for consistent results.

Improved Large E Stop - Oversized, easy access emergency stop improves operator safety and visibility.

Specifications

Brand Name

Powermatic

Assembled Weight (lbs)

411

Country of Origin

Taiwan

Package Contents

(1) Planer, (1) Dust Hood, (1) Handwheel, (1) Key, (1) Handle, (1) Hardware Bag for Dust Hood [(6) Hex Cap Screws, M6 x 1.0P x 12, (6) Flat Washers, M6] (3) Open-End Wrenches [(1) 10-13mm, (1) 12-14mm, (1) 17-19mm], (4) Hex Wrenches [(1) 3 mm, (1) 4mm, (1) 5 mm, (1) 6 mm], (1) Owner’s Manual, (1) Warranty Card, (2) Star point Screwdrivers, (10) Knife inserts, (10) Knife insert screws, (2) Cast Iron Extension Tables, (1) Hardware Bag for Extension Tables [(6) Hex Cap Screws, M8 x 1.25P x 25, (6) Socket Set Screws, M8 x 1.25P x 12, (1) Socket Set Screws, M8 x 1.25P x 25]
