Powermatic 201HH 7.5HP 3Ph 230V 22In Helical Head Planer
Powermatic

Please follow our Community Guidelines and be kind!

Description

Powermatic 201HH 7.5HP 3Ph 230V 22In Helical Head Planer

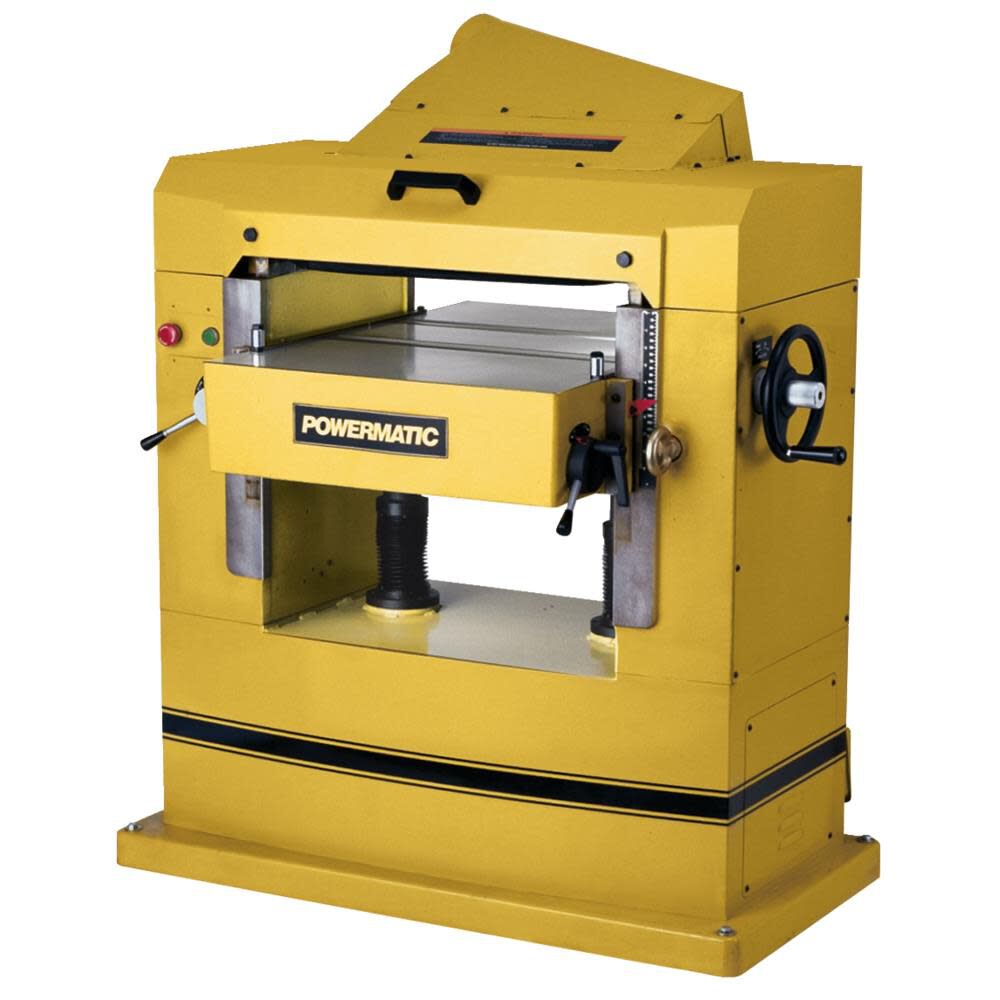

This 1300 Lb. heavy duty cast iron planer offers rock solid rigidity and accurate planing for years to come. The hinged top allows easy access to the rollers and knives, and has a 5 In. dust port for easy attachment to any dust collection system. The cutter head is a helical design with 150 four sided knife inserts – these produce a superior finish and much quieter operation compared to conventional cutter heads, and the inserts are installed without further adjustments. The anti-kickback fingers and pressure bar are located in close proximity to the cutter head for an exceptional finish. Infeed and outfeed rollers are fitted with roller bearings for long life. The sectional Infeed roller and chip breaker are specially designed to allow multiple boards to be planed at the same time. The adjustable bed rollers facilitate both rough and finish planing. The solid steel outfeed roller is machined with small serrations to insure a smooth finish yet provide positive feeding. The two-speed gearbox with machined detents is quickly changed up front when switching from rough to finish work. The massive, ribbed cast iron table is ground finished and rises smoothly via the hand wheel. With a hefty 7-1/2 HP motor, the 201HH planer is perfect for the small to medium shop with continuous planing .requirements.

California Proposition 65 Warning.
View Warning Label

Features

Standard equipment
Dust chute with 5 port for dust collection
Oversized cast iron table travels on 2 large lead screws for heavy duty support
Adjustable bed rollers allow smooth feeding of rough or finished workpieces
Roller bearing-mounted feed rollers for long life
Segmented Infeed roller with sectional chip breaker allows multiple board planing
2 feed speeds - 20/30 pm - accommodates rough and fine finish work
Cast iron 1300 lb. construction for solid performance without vibration
Helical cutter head with knife inserts provides smoother, quieter cutting and finer finish than conventional systems

Specifications

Brand Name
Powermatic
Amperage (A)
30.0
Assembled Weight (lbs)
1350.0
Bench or Stationary
Stationary
Blade Count
125
Blade Type
Four Sided Knife Inserts
California Proposition 65 Warning Required
Yes
Color
Gold
Country of Origin
Taiwan
CSA Certified
No
ETL Listed
No
Height (in)
59.0
Horsepower (hp)
7.5
Length
42 in
Maximum Cutting Depth (in)
0.187
Maximum RPM
4800.0
Maximum Width Cutting Capacity (in)
22 in
Overall Weight (lbs)
1350.0
Package Contents
201HH 7.5HP 3Ph 230V 22In Helical Head Planer

Product Condition
New

UL Listed
No
Voltage
230/460 Volts
Warranty Type
5 Years
Weight (lbs)
1430.0
