Powermatic 209BHH 20 Inch 5 HP 1PH 230V Planer

Powermatic

Please follow our Community Guidelines and be kind!

Description

Powermatic 209BHH 20 Inch 5 HP 1PH 230V Planer

The Powermatic, 209BHH, PM1-478, 20-inch planer with 230V, 1 PH, power is built for shops that need increased capacity and cutting strength. Driven by a 5 HP motor, this machine provides the power required to surface wide panels and dense hardwoods with confidence. Its 20- inch cutting width and 8-inch maximum thickness capacity allow larger stock to be processed efficiently. The four-row helical cutterhead features 68 four-sided inserts spinning at 5200 RPM to deliver a smooth finish with reduced tear-out and noise, and inserts are easily accessed for rotation or replacement to minimize downtime. A built-in digital readout ensures precise thickness control, while dual feed speeds of 16 and 28 FPM provide flexibility for both aggressive stock removal and fine finishing. Heavy-duty cast-iron tables and a full 51-1/2 inch table surface offer exceptional stability when handling larger workpieces. A 4-inch dust port supports efficient chip collection with a 900 CFM requirement, and the upgraded caster locking and braking system, along with an oversized emergency stop, reinforces mobility and safety in the shop.

California Proposition 65 Warning.

Features

Caster Locking and Braking System - Provides mobility when needed and stability during operation

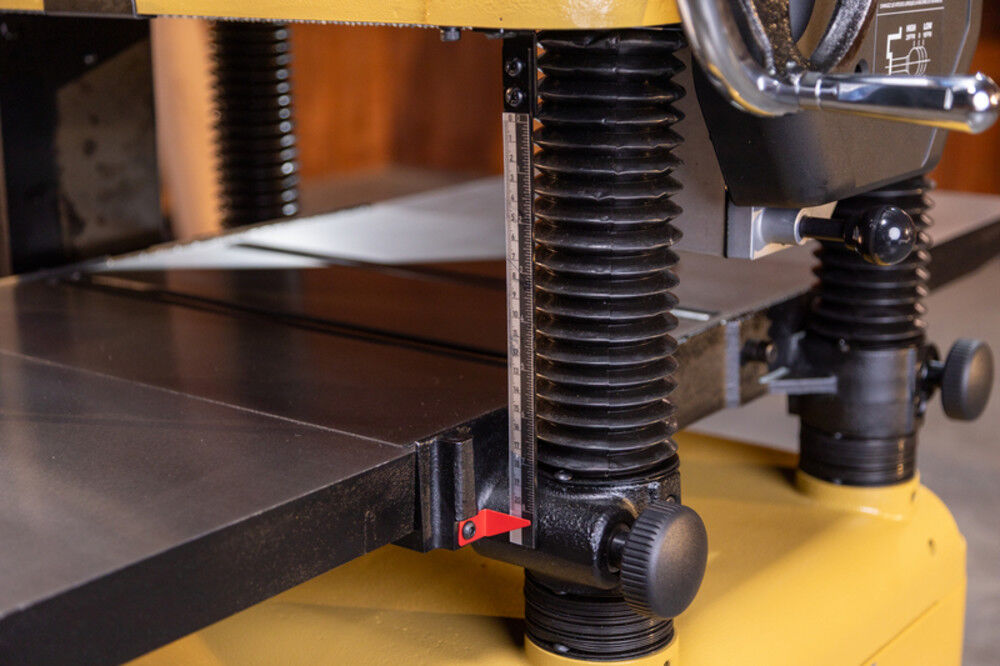

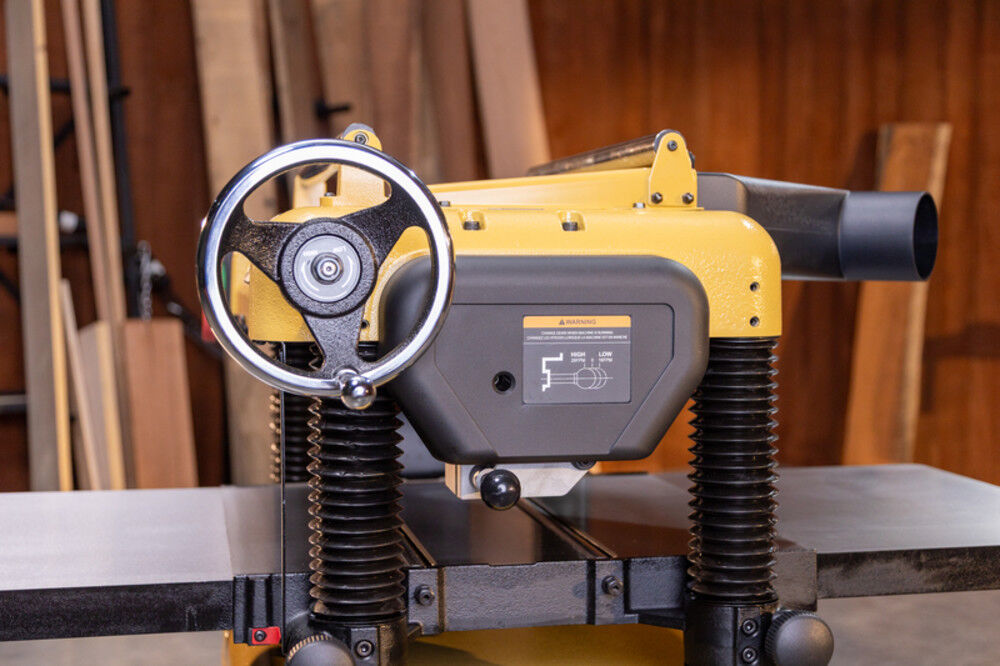

Height Adjustment Handle - Smooth, controlled table movement for accurate depth setting.

Two Speed Feed Rate - Allows selection between faster stock removal or finer finish cuts.

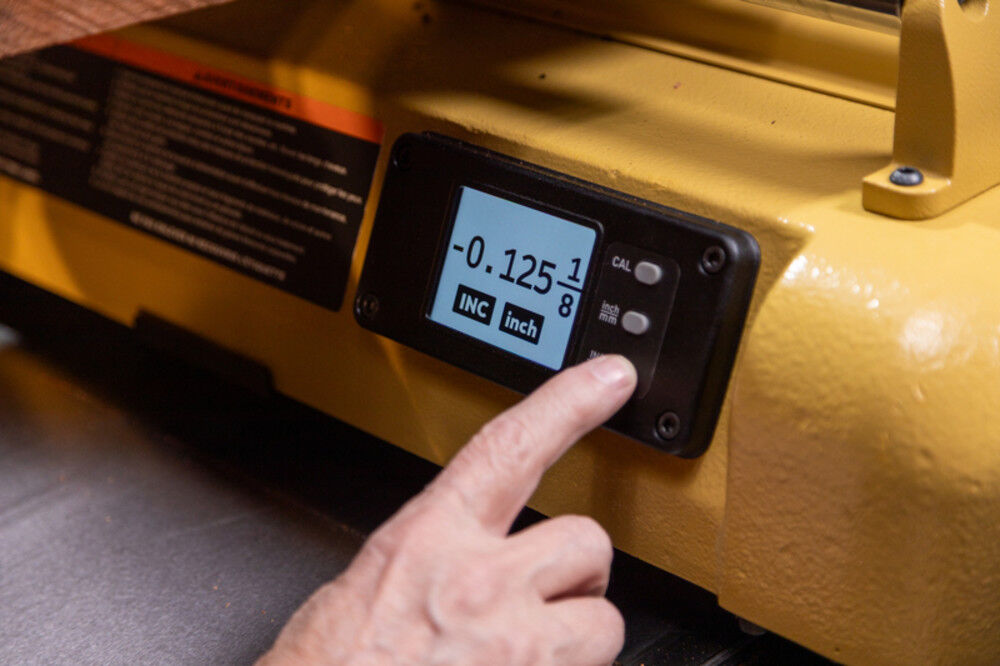

Digital Read Out (DRO) - Accurate, repeatable thickness adjustments for precision planing.

5 Inch Bi-Directional Dust Port - Efficient chip evacuation with flexible dust collection setup.

Cutterhead Access for Insert Change or Rotation - Simplifies maintenance and reduces downtime when rotating or replacing inserts.

True Helical Cutterhead - Delivers quieter operation, improved surface finish, and longer insert life.

Solid Cast Iron Infeed and Outfeed Tables - Provides stability, reduces vibration, and supports long boards for consistent results.

Improved Large E Stop - Oversized, easy access emergency stop improves operator safety and visibility.

Specifications

Brand Name

Powermatic

Assembled Weight (lbs)

606

Country of Origin

Taiwan

Package Contents

(1) Planer, (1) Dust Hood, (1) Handwheel, (1) Key, (1) Handle, (1) Hardware Bag for Dust Hood, (6) Hex Cap Screws, M6 x 1.0P x 12, (6) Flat Washers, M6, (3) Open-End Wrenches [(1) 10-13mm, (1) 12-14mm, (1) 17-19mm], (4) Hex Wrenches ((1) 3mm, (1) 4mm, (1) 5mm, 6mm), (1) Owner’s Manual, (1) Warranty Card, (2) Star point screwdrivers, (10) Knife inserts, (10) Knife insert screws, (2) Cast Iron Extension Tables, (1) Hardware Bag for Extension Tables [(6) Hex Cap Screws, M8 x 1.25P x 25, (6) Socket Set Screws, M8 x 1.25P x 12, (1) Socket Set Screws, M8 x 1.25P x 25]
