Powermatic PJ1696T Jointer 7.5HP 3PH 230V HH ARMORGLIDE

SKU# PM1-1791283T
4.1 out of 5 Customer Rating
Powermatic PJ1696T Jointer 7.5HP 3PH 230V HH ARMORGLIDE, large image number 0
Powermatic PJ1696T Jointer 7.5HP 3PH 230V HH ARMORGLIDE, large image number 1
Powermatic PJ1696T Jointer 7.5HP 3PH 230V HH ARMORGLIDE, large image number 2
Powermatic PJ1696T Jointer 7.5HP 3PH 230V HH ARMORGLIDE, large image number 3
Powermatic PJ1696T Jointer 7.5HP 3PH 230V HH ARMORGLIDE, large image number 4
Powermatic PJ1696T Jointer 7.5HP 3PH 230V HH ARMORGLIDE, large image number 5
Powermatic PJ1696T Jointer 7.5HP 3PH 230V HH ARMORGLIDE, large image number 6
Powermatic PJ1696T Jointer 7.5HP 3PH 230V HH ARMORGLIDE, large image number 7
Powermatic PJ1696T Jointer 7.5HP 3PH 230V HH ARMORGLIDE, large image number 8
Previous Next
+ 5 more
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Delivery to -
- Est. Arrival - Est. Ship - Est. Arrival - Get it as soon as {0} Edit location Add Zip Code
Pick Up at
Store Address -
Available within 4 hours
Contact Store:
Est. Email Delivery: within 24 hours
Made In USA

  Free Freight  Shipping  (Truck freight shipping to lower 48)
Powermatic PJ1696T Jointer 7.5HP 3PH 230V HH ARMORGLIDE
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Qty
Secure Checkout
Affirm
Pay as low as $582/mo.
with Affirm

Product Details

Powermatic PJ1696T Jointer 7.5HP 3PH 230V HH ARMORGLIDE
Powermatic

Please follow our Community Guidelines and be kind!

Description

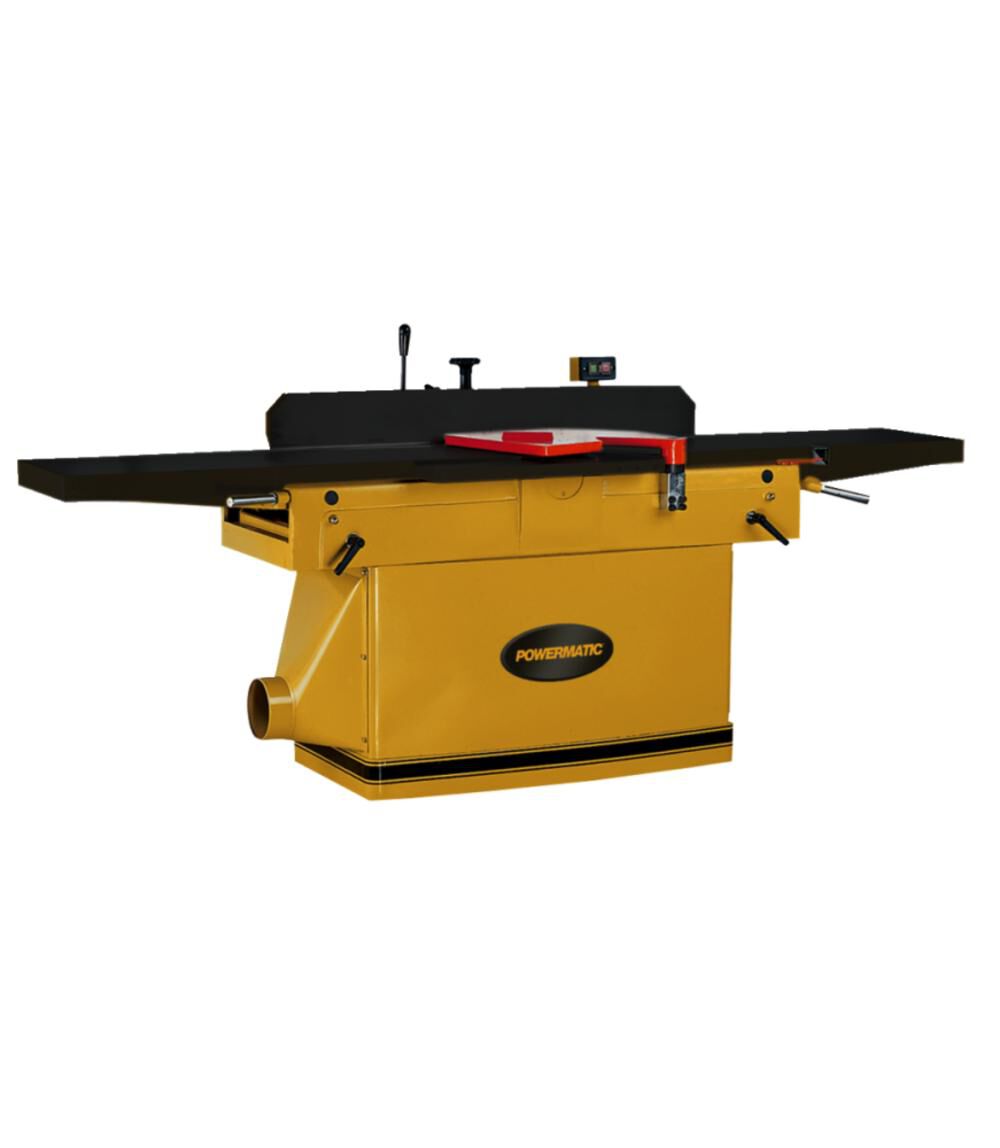

Powermatic PJ1696T Jointer 7.5HP 3PH 230V HH ARMORGLIDE

"Now featuring ArmorGlide Technology that is low-friction and rust-resistant, the Powermatic PJ1696T 16" jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily on a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutter head for an improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. The specially-designed solid steel helical cutter head consists of six rows of precision-ground staggered inserts. This system makes fast work of knife changing and never needs adjustment. The heavy-duty 7-1/2HP motor delivers all the power you need for even the biggest jobs."

California Proposition 65 Warning.
View Warning Label

Manuals

Use and Care Manual - PDF

Features

ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control.
Cast iron fence bevel controls with positive stops at 45 degrees and 90 degrees
Full size rabbeting table supports large workpieces for rabbets up to 3/4" deep
Helical cutterhead with 58 two-sided knife inserts reduces noise, eliminates adjustments, and speeds knife change

Specifications

Brand Name
Powermatic
Amperage (A)
30
Assembled Weight (lbs)
1280
Bench or Stationary
Stationary
Blade Count
0
California Proposition 65 Warning Required
Yes
Country of Origin
Taiwan
CSA Certified
No
Dust Port
Yes

MFG Part # (OEM)
PM1-1791283T

Maximum Cutting Depth (in)
.75
Maximum Speed (rpm)
5200
Package Contents
1 Jointer
Phase
Three Phase

Product Condition
New

Speeds
5200
Table Length (in)
96
Table Width (in)
16

UPC
019907108054

Voltage
230 Volts
Warranty Type
5 Years Limited
Weight (lbs)
1400
