Product Details

WEG 208-230V 7.5HP 1760 Rpm General Purpose Compressor Electric Motor

Description

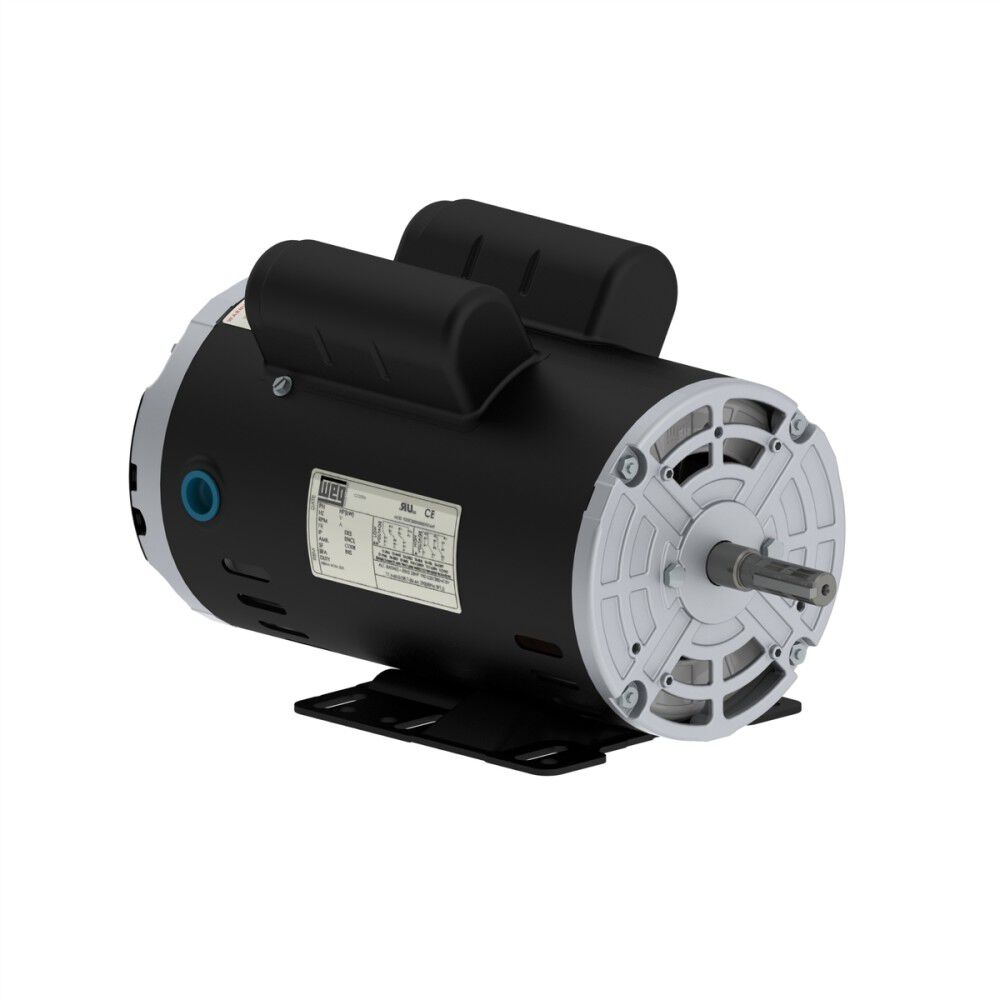

WEG 208-230V 7.5HP 1760 Rpm General Purpose Compressor Electric Motor

WEG 208-230 4 Poles 1760 Rpm open drip proof enclosure compressor motor. This electric motor is used by many other brands of air compressors and ROLAIR models H75160K30, H75180K30, H75112K30. V75180K30, V75112K30, H75160K50, H75180K50, H75112K50, V75180K50, V75112K50 compressors.

Features

Rotation: Counter clock wise
Service Factor: 1.15
Frame: 213/5T, 4 poles
Duty Cycle: Continuous (S1)
Enclosure: Open Drip Proof (ODP)
Standard: NEMA MG-1
Without flange
Mounting: F-1 Foot-mounted
Electrical Ratings: 208-230V, 33.8-32.2 A, 60 Hz

Specifications

Brand Name
WEG
Assembled Weight (lbs)
121
Country of Origin
Brazil
Horsepower (hp)
7.5
Maximum RPM
1760
Package Contents
Compressor Motor
Phase
Single Phase

Product Condition
New

Restrictions
CA Prop 65
Voltage
208/230
Warranty Type
No Manufacturer's Warranty
Weight (lbs)
121
