Simpson Strong-Tie 10 Gauge 3-1/2 x 16 In. Joist Gray Coating DGF Fire Wall Hanger

SKU# DGHF3.62/18
5 out of 5 Customer Rating
Simpson Strong-Tie 10 Gauge 3-1/2 x 16 In. Joist Gray Coating DGF Fire Wall Hanger, large image number 0

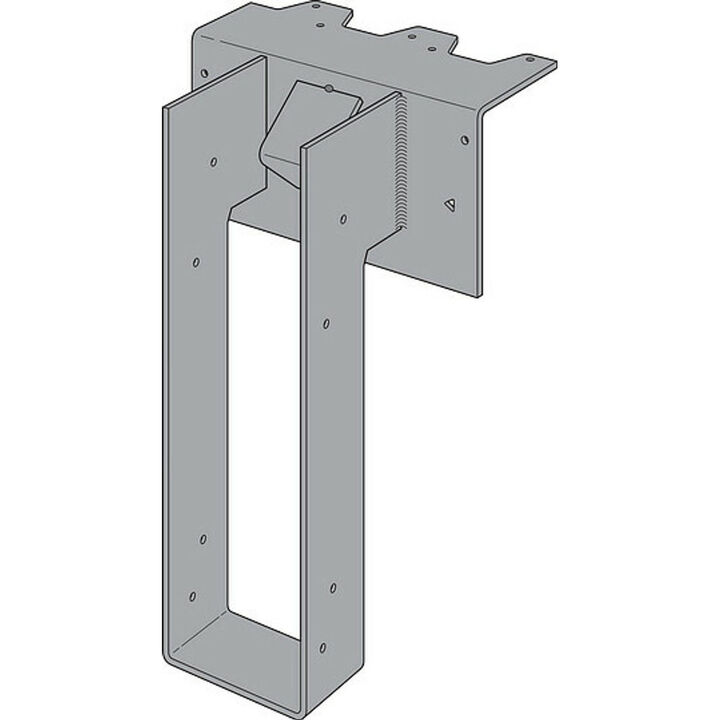

Simpson Strong-Tie 10 Gauge 3-1/2 x 16 In. Joist Gray Coating DGF Fire Wall Hanger, large image number 1
Previous Next
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Delivery to -
- Est. Arrival - Est. Ship - Est. Arrival - Get it as soon as {0} Edit location Add Zip Code
Pick Up at
Store Address -
Available within 4 hours
Contact Store:
Est. Email Delivery: within 24 hours
Made In USA

Simpson Strong-Tie 10 Gauge 3-1/2 x 16 In. Joist Gray Coating DGF Fire Wall Hanger
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Selected Delivery Method: Shipping
Shipping
Get it as soon as {0}
Pick up in Store
Available within 4 hours
Not Available for Pick Up
Qty
Secure Checkout
Affirm
Pay over time
with Affirm on orders over $150

Product Details

Simpson Strong-Tie 10 Gauge 3-1/2 x 16 In. Joist Gray Coating DGF Fire Wall Hanger
Simpson Strong-Tie

Please follow our Community Guidelines and be kind!

Description

Simpson Strong-Tie 10 Gauge 3-1/2 x 16 In. Joist Gray Coating DGF Fire Wall Hanger

The DGF fire wall hanger is ideal for multi-family, multilevel building construction and easily installs on a two-hour wood stud fire wall (e.g., Type III construction) during framing. The new series features three models of top-flange hangers that connect floor trusses and joists to wood stud walls. The hangers feature enough space for two layers of 5/8 In. gypsum board (drywall) to be slipped into place after the framing is complete. They have been tested according to ASTM E814 and received F (flame) and T (temperature) ratings for use on one or both sides of the wall. These ratings verify that the DGF/DGHF/DGBF hangers do not reduce the two-hour fire wall assembly rating.

California Proposition 65 Warning.

Features

Fire-resistant F (flame) and T (temperature) rated in Intertek Design No. SST/WPCF 120-01
No need for additional restraint against rotation of the wall top plates
All models can be used on both sides of a 2x6 wall
DGHF and DGBF welded to steel header with two 2 In. fillet weld and (8) 0.148 x 1-1/2 In. joist nails achieve a download of 3,000 lb

Specifications

Brand Name
Simpson Strong-Tie
Assembled Weight (lbs)
1.5
Country of Origin
China
Package Contents
Fire Wall Hanger

Product Condition
New

Restrictions
CA Prop 65
Warranty Type
No Manufacturer's Warranty
Weight (lbs)
3
