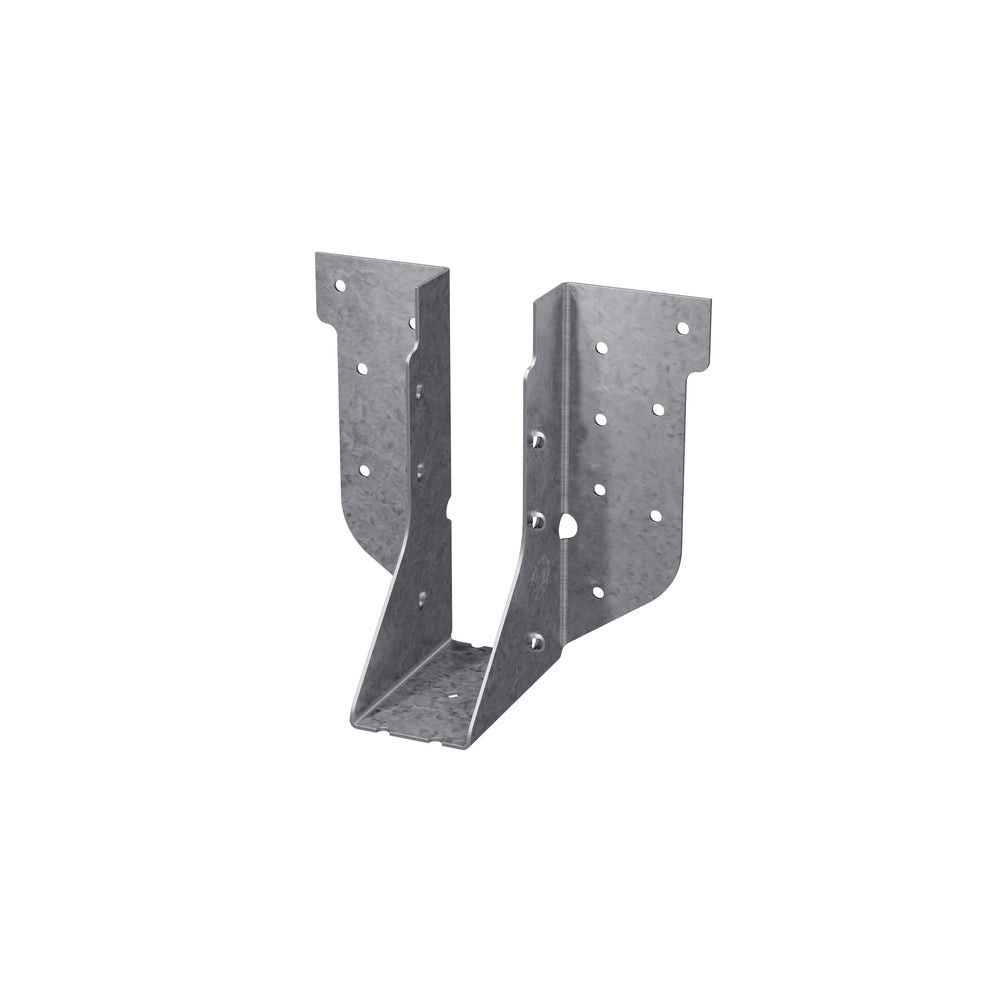

Simpson Strong-Tie 16 Gauge 2x6 Zinc Galvanized G90 Heavy U-Shaped Hanger, large image number 0
Simpson Strong-Tie 16 Gauge 2x6 Zinc Galvanized G90 Heavy U-Shaped Hanger, large image number 1
Previous Next
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Delivery to -
- Est. Arrival - Est. Ship - Est. Arrival - Get it as soon as {0} Edit location Add Zip Code
Pick Up at
Store Address -
Available within 4 hours
Contact Store:
Est. Email Delivery: within 24 hours
Made In USA

Simpson Strong-Tie 16 Gauge 2x6 Zinc Galvanized G90 Heavy U-Shaped Hanger
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Selected Delivery Method: Shipping
Shipping
Get it as soon as {0}
Pick up in Store
Available within 4 hours
Not Available for Pick Up
Qty
Secure Checkout
Affirm
Pay over time
with Affirm on orders over $150

Product Details

Simpson Strong-Tie 16 Gauge 2x6 Zinc Galvanized G90 Heavy U-Shaped Hanger
Simpson Strong-Tie

Please follow our Community Guidelines and be kind!

Description

Simpson Strong-Tie 16 Gauge 2x6 Zinc Galvanized G90 Heavy U-Shaped Hanger

The HUS is designed for applications where higher loads are needed. This hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This feature allows for fewer nails, faster installation and the use of all common nails for the same connection.

California Proposition 65 Warning.

Features

Can be installed after the beam is secured in place
Cannot be modified
HUS-series hangers are tested, load rated and code compliant
Joist nails must be driven at an angle through the joist or truss into the header to achieve the table loads
Not designed for welded or nailer applications
Do not use double-shear hangers with I-joists
With 2x carrying members: when 0.162 In. x 3-1/2 In. nails are specified, use 0.148 In. x 1-1/2 In. nails into the header and 0.148 In. x 3 In. nails into the joist and reduce the load to 0.64 of the table values. When 0.148 In. x 3 In. nails are specified, use 0.148 In. x 1-1/2 In. nails into the header and 0.148 In. x 3 In. nails into the joist and reduce the load to 0.77 of the table values. See Fastener Design Information
With 3x carrying members: when 0.162 In. x 3-1/2 In. nails are specified, use 0.162 In. x 2-1/2 In. nails into the header and 0.162 In. x 3-1/2 In. nails into the joist with no load reduction. When 0.148 In. x 3 In. nails are specified, use 0.148 In. x 2-1/2 In. nails into the header and 0.148 In. x 3 In. nails into the joist with no load reduction

Specifications

Brand Name
Simpson Strong-Tie
Assembled Weight (lbs)
0.6
Country of Origin
China
Finish
Galvanized
Package Contents
U-Shaped Hanger with Double-Shear Nailing

Product Condition
New

Restrictions
CA Prop 65
Size
1-5/8 Width x 5-3/8 Height x 3 In. Breadth
Warranty Type
No Manufacturer's Warranty
Weight (lbs)
0.6
