Simpson Strong-Tie 18 Gauge 2 x 4 ZMAX Light-Capacity U-Shaped Hanger
Simpson Strong-Tie

Please follow our Community Guidelines and be kind!

Description

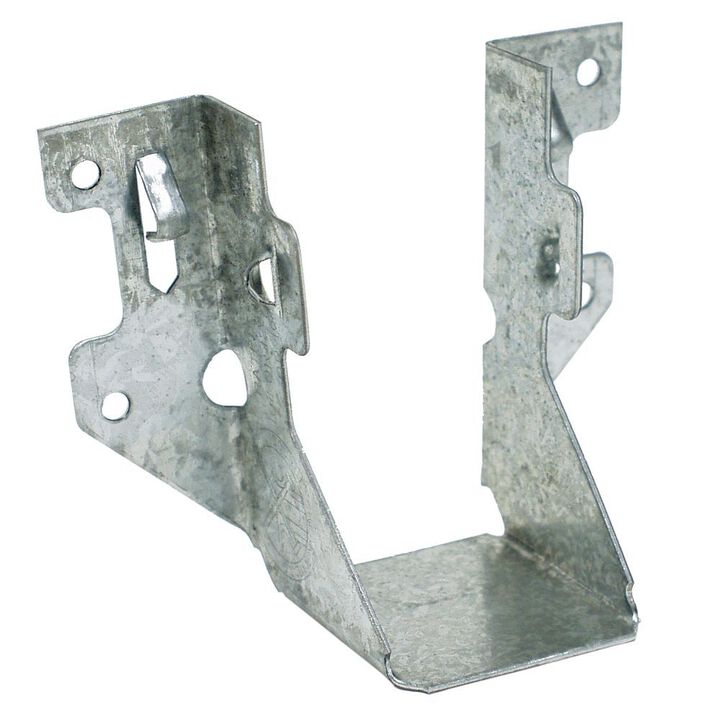

Simpson Strong-Tie 18 Gauge 2 x 4 ZMAX Light-Capacity U-Shaped Hanger

The LUS is an easy-to-install, economical hanger designed for common lumber sizes. This widely used hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This allows for fewer nails, faster installation and the use of all common nails for the same connection.

California Proposition 65 Warning.

Features

Cannot be modified
Works for a wide range of applications
Features speed prongs used to temporarily position and secure the connector for easier and faster installation
LUS-series hangers are tested, load rated and code compliant
Joist nails must be driven at an angle through the joist or truss into the header to achieve the table loads
Joist nails must be driven at an angle through the joist or truss into the header to achieve the table loads.
With 3x carrying members: when 0.162 In. x 3-1/2 In. nails are specified, use 0.162 In. x 2-1/2 In. nails into the header and 0.162 In. x 3-1/2 In. nails into the joist with no load reduction. When 0.148 In. x 3 In. nails are specified, use 0.148 In. x 2-1/2 In. nails into the header and 0.148 In. x 3 In. nails into the joist with no load reduction
With 2x carrying members: when 0.162 In. x 3-1/2 In. nails are specified, use 0.148 In. x 1-1/2 In. nails into the header and 0.148 In. x 3 In. nails into the joist and reduce the load to 0.64 of the table values. When 0.148 In. x 3 In. nails are specified, use 0.148 In. x 1-1/2 In. nails into the header and 0.148 In. x 3 In. nails into the joist and reduce the load to 0.77 of the table values

Specifications

Brand Name
Simpson Strong-Tie
Assembled Weight (lbs)
0.19
Country of Origin
China
Package Contents
U-Shaped Hanger with Double-Shear Nailing

Product Condition
New

Restrictions
CA Prop 65
Size
1-9/16 Width x 3-1/8 Height x 1-3/4 In. Breadth
Warranty Type
No Manufacturer's Warranty
Weight (lbs)
0.19
