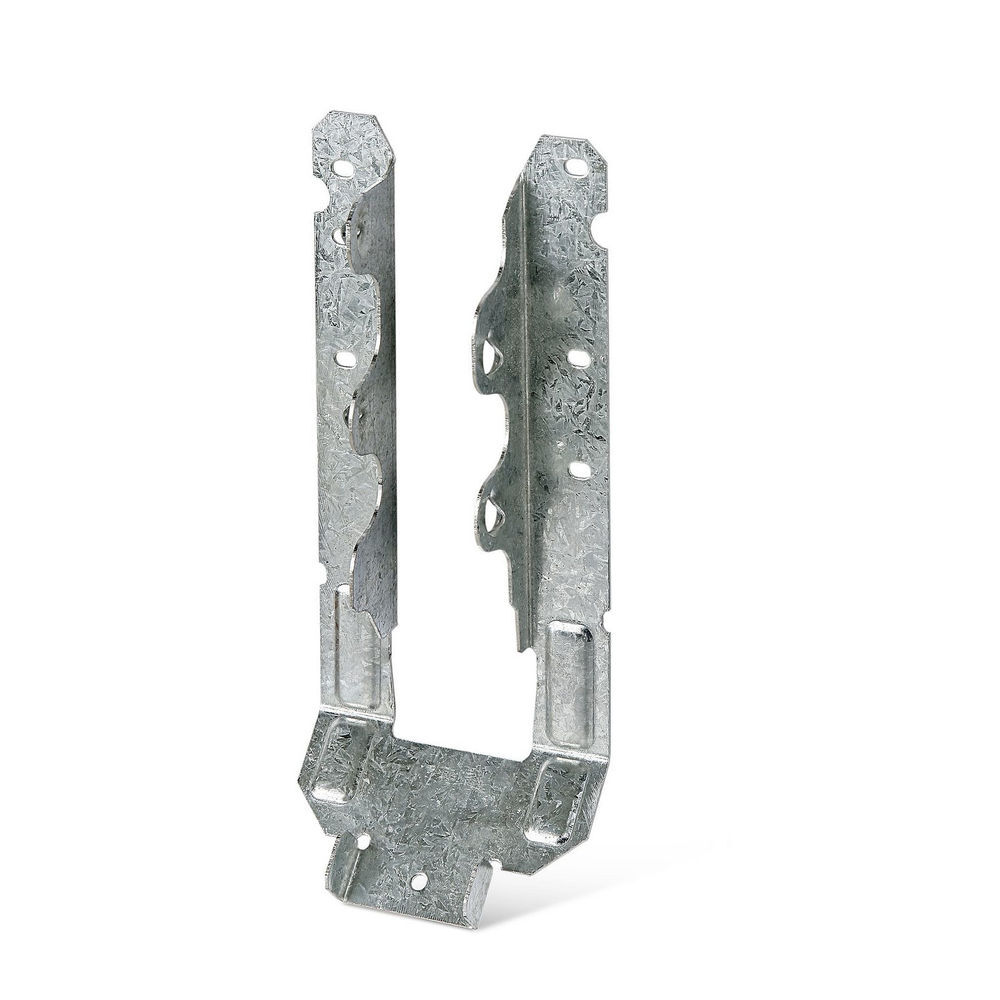

Simpson Strong-Tie 18 Gauge 2 x 8 ZMAX G185 Face-Mount Rafter Hanger, large image number 1
Simpson Strong-Tie 18 Gauge 2 x 8 ZMAX G185 Face-Mount Rafter Hanger, large image number 2
Previous Next
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Delivery to -
- Est. Arrival - Est. Ship - Est. Arrival - Get it as soon as {0} Edit location Add Zip Code
Pick Up at
Store Address -
Available within 4 hours
Contact Store:
Est. Email Delivery: within 24 hours
Made In USA

Simpson Strong-Tie 18 Gauge 2 x 8 ZMAX G185 Face-Mount Rafter Hanger
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Selected Delivery Method: Shipping
Shipping
Get it as soon as {0}
Pick up in Store
Available within 4 hours
Not Available for Pick Up
Qty
Secure Checkout
Affirm
Pay over time
with Affirm on orders over $150

Product Details

Simpson Strong-Tie 18 Gauge 2 x 8 ZMAX G185 Face-Mount Rafter Hanger
Simpson Strong-Tie

Please follow our Community Guidelines and be kind!

Description

Simpson Strong-Tie 18 Gauge 2 x 8 ZMAX G185 Face-Mount Rafter Hanger

The LRUZ offers an economic alternative for those applications requiring a sloped hanger for rafter-to-ridge connections. Used with solid sawn rafters, the LRUZ's unique design enables the hanger to be installed either before or after the rafter is in place. The field-adjustable seat helps improve job efficiency by eliminating mismatched angles in the field and lead times associated with special orders. The LRUZ offers comparable or better load capacity to other rafter hangers at a reduced cost while using fewer fasteners.

California Proposition 65 Warning.

Features

The open design and ability to field-adjust the slope make the LRUZ ideal for both retrofit or new applications
May be sloped down from 0 Deg (0:12 pitch) to 49 Deg (14:12). For slopes greater than 45 Deg, allowable downloads are 0.85 of table loads
May be sloped up from 0 Deg to 45 Deg
For added versatility, the fasteners on the face of the hanger are placed high, enabling the bottom of the rafter to hang below the ridge beam (see "Max. C1" dimension in Standard Installation table)
Can be installed using nails or Strong-Drive® SD Connector screws
Joist fasteners must be installed at an angle through the rafter or joist into the header to achieve the table loads
See Alternate Installation table for retrofit applications
US Patent 10,370,842

Specifications

Brand Name
Simpson Strong-Tie
Assembled Weight (lbs)
0.38
Country of Origin
China
Package Contents
Face-Mount Rafter Hanger

Product Condition
New

Restrictions
CA Prop 65
Size
1-9/16 Width x 6-15/16 Height x 1-15/16 In. Breadth
Warranty Type
No Manufacturer's Warranty
Weight (lbs)
0.38
