Spectra Precision 630-640 nm Class 2 Battery-Powered Dual Grade Laser with Receiver

Name: Spectra Precision 630-640 nm Class 2 Battery-Powered Dual Grade Laser with Receiver
Brand: Spectra Precision
SKU: GL1425C
Price: 2680.00 USD
Availability: InStock

SKU# GL1425C

Spectra Precision 630-640 nm Class 2 Battery-Powered Dual Grade Laser with Receiver, large image number 0

Spectra Precision 630-640 nm Class 2 Battery-Powered Dual Grade Laser with Receiver, large image number 1

Spectra Precision 630-640 nm Class 2 Battery-Powered Dual Grade Laser with Receiver, large image number 2

Spectra Precision 630-640 nm Class 2 Battery-Powered Dual Grade Laser with Receiver, large image number 3

Spectra Precision 630-640 nm Class 2 Battery-Powered Dual Grade Laser with Receiver, large image number 4

Spectra Precision 630-640 nm Class 2 Battery-Powered Dual Grade Laser with Receiver, large image number 5

Spectra Precision 630-640 nm Class 2 Battery-Powered Dual Grade Laser with Receiver, large image number 6

Spectra Precision 630-640 nm Class 2 Battery-Powered Dual Grade Laser with Receiver, large image number 7

Spectra Precision 630-640 nm Class 2 Battery-Powered Dual Grade Laser with Receiver, large image number 8

+ 5 more

Acme Tools Guarantee

Qty

(Max. order of 1,000)

Secure Checkout

Product Details

Spectra Precision 630-640 nm Class 2 Battery-Powered Dual Grade Laser with Receiver

Spectra Precision

Please follow our Community Guidelines and be kind!

Description

Spectra Precision 630-640 nm Class 2 Battery-Powered Dual Grade Laser with Receiver

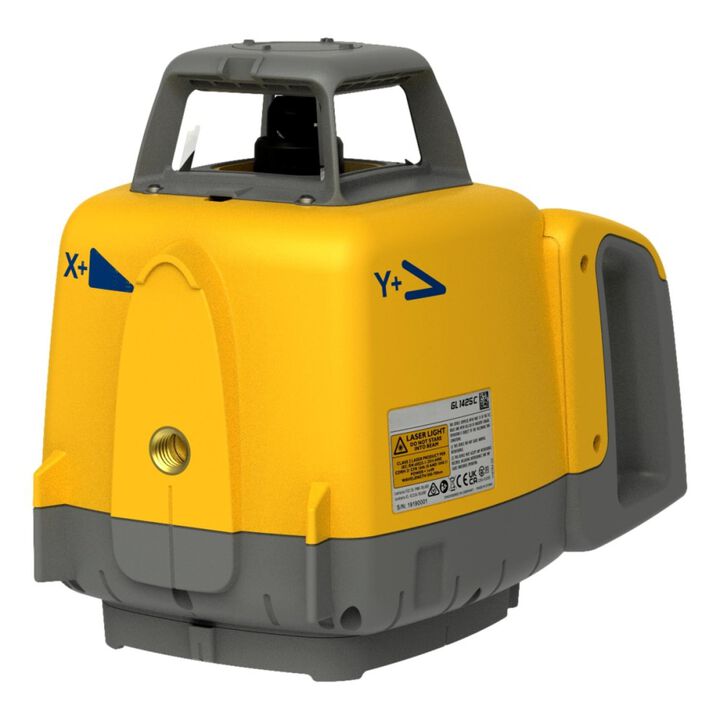

The automatic self-leveling GL1425C dual grade laser is the most rugged, cost-effective laser that does three jobs - level, grade, and vertical alignment. Even in harsh job site conditions, the GL1425C delivers consistently reliable and accurate performance, enabling you to work faster (up to 900 Rpm) and smarter. The GL1425C comes with Bluetooth built-in and has a dedicated Laser Remote App. The GL1425C has Bluetooth built in so it can work with the Spectra Precision laser remote app and eliminate the cost of the remote control. The laser can be controlled with your smartphone. The rugged GL1425C laser can withstand drops of up to 1 m (3 Ft.) onto concrete and tripod tip overs up to 1.5 m (5 Ft.). This strength, combined with full weatherproofing and dustproofing, reduces downtime and lowers repair costs over the life of the product. The GL1425C has options for receivers. The advanced HL760 digital readout receiver provides automatic Grade Match which allows measurement of unknown grade values between two points over unknown ground and eliminates time consuming slope calculations.

California Proposition 65 Warning.

Manuals

Use and Care Manual - PDF

Specification - PDF

Features

Self-Leveling - Automatic horizontal and vertical leveling

Power Source - 10000 mAh NiMH battery back or 4 x 1.5V D alkaline batteries, Battery life time - Typically 45 hours, Battery charging time - < 10 hours

Working range of 800 m (2600 Ft.) diameter, Grade Range, No tilt adjustment - typically ± 9 %, Grade Range, with tilt adjustment - typically ± 15 %, Accuracy - 1.5 mm at 30 m (1/16 In. @ 100 Ft.)

Rotation selection of 300, 600 or 900 Rpm, Tripod attachments - 5/8 x 11 In. horizontally and vertically, Dust and waterproof (IP) - IP66

Automatic Grade Matching - Radio communication between the HL760 DRO receiver and the laser provides automatic Grade Matching and PlaneLok

Height of Instrument Alert - Unit stops rotating when jarred to avoid erroneous readings

Rugged - Extremely durable and portable

Simplifies level, grade and vertical alignment setups, increases reliability, accuracy and durability

Easy to transport, easy to carry, easy to store, energy-efficient design offers long battery life, highly durable design enables the GL1425C to survive a drop up to 1 m (3 Ft.) onto concrete

Remote control or remote control app allows operation of all laser functions from anywhere on the job-site, multiple configuration options

Specifications

Accuracy

1.5 mm at 30 m (1/16 In. @ 100 Ft.)

Brand Name

Spectra Precision

Assembled Weight (lbs)

7.7

Country of Origin

China

MFG Part # (OEM)

GL1425C

Number of Batteries Included

Package Contents

(1) GL1425C Dual Grade Laser, (1) HL760 Laser Receiver with Adapter C70, (1) Vertical Adapter for HL Receiver, (1) RC1402 Radio Remote Control, (1) B10 NiMH Rechargeable Battery Pack & Charger, (1) Hard Carrying Case
