Wera Tools Kompakt VDE 24 Kraftform Allrounder Set 1, 25 Pieces
Wera Tools

Please follow our Community Guidelines and be kind!

Description

Wera Tools Kompakt VDE 24 Kraftform Allrounder Set 1, 25 Pieces

The all-rounder is set for VDE applications. Two bitholding screwdrivers 837 i RA and 817 VDE for Kraftform Kompakt VDE blades (837 i RA with ratchet functionality for accelerated screwdriving). 11 Kraftform Kompakt blades for slotted screws, Phillips-head screws (Phillips and Pozidriv), and TORX® screws. Even low-lying screw and spring elements can be reached thanks to the reduced blade diameter. The Take it easy tool finder (color coding by profile as well as laser-engraved size indication) makes it easy to reach for the required blade. One T-handle with ratchet functionality for 1/4 in. sockets. The recesses in the fast-rotating sleeve on the blade allow resistance to be generated by finger force, which allows the ratchet mechanism to be used even at low resistance of the screw. Nine sockets offer increased safety thanks to the 2-component insulation with a yellow insulation core under an outer red insulation layer. The inner yellow insulation layer becomes visible if the outer red VDE insulation layer is damaged. All tools are individually tested at 10000 V as per IEC 60900. Space-saving and safe storage in a textile box. The textile box can be docked directly onto the Wera 2go transport system or attached to the workshop trolley, tool wall, etc, with the included hook and loop fastener strip.

California Proposition 65 Warning.

Manuals

Specification - PDF

Features

Individually tested tools as per IEC 60900

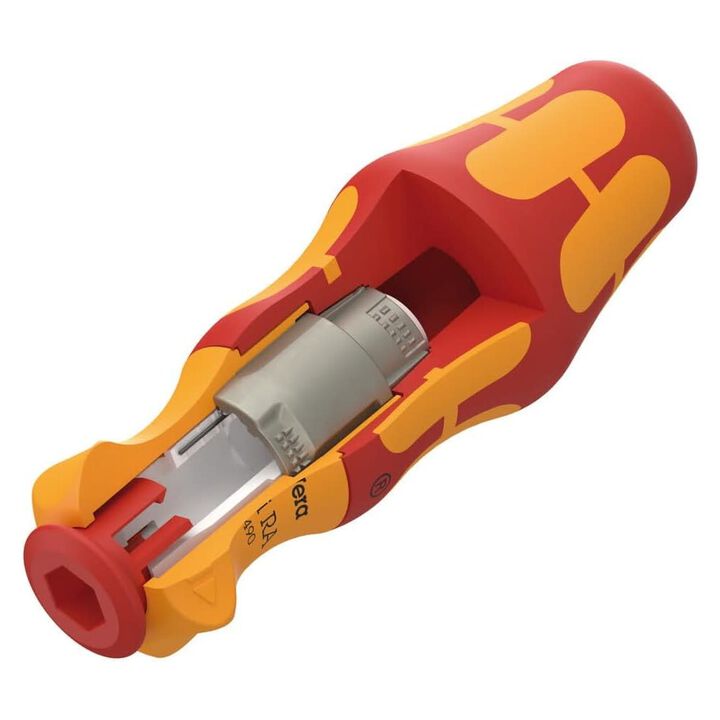

One Kraftform Kompakt VDE 837 i RA bladeholding screwdriver with ratchet functionality (40 teeth, 9 deg return angle) for interchangeable blades, one 817 VDE bladeholding screwdriver for interchangeable blades

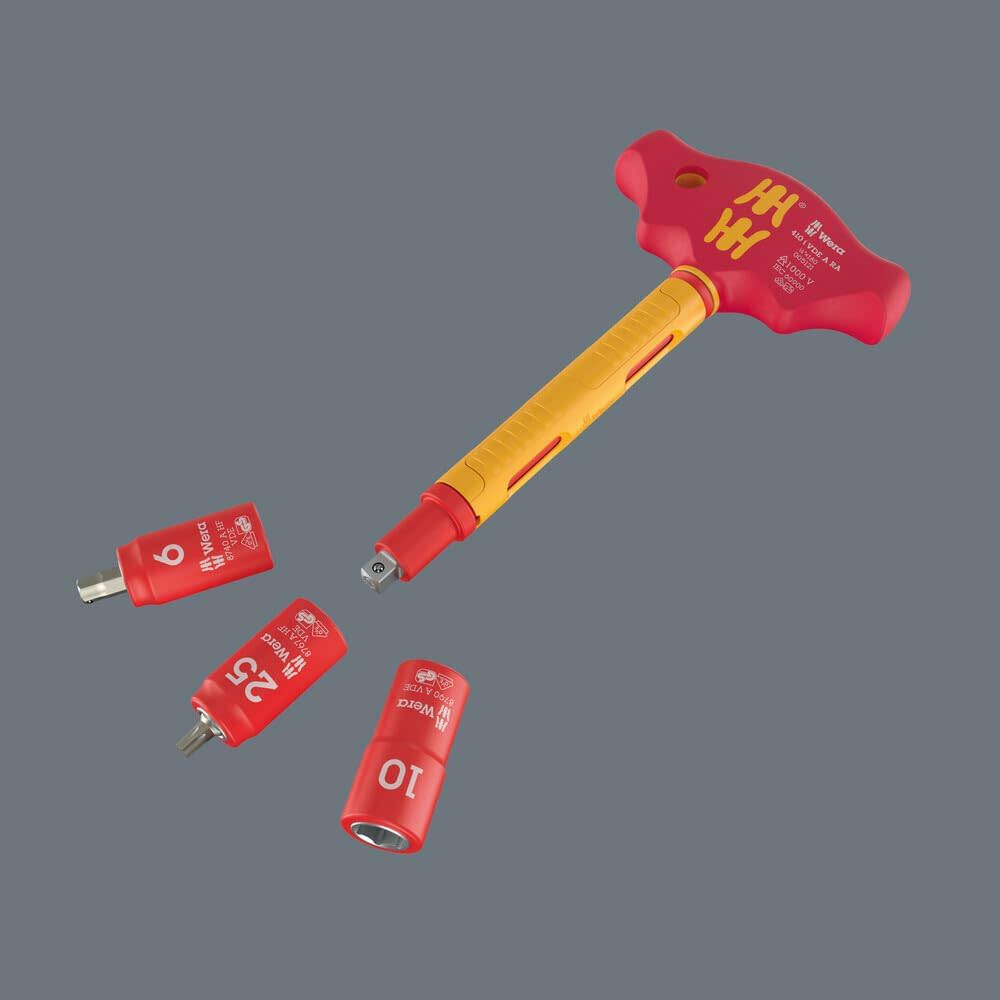

One 410 i VDE A RA T-handle adapter screwdriver with ratchet functionality for 1/4 in sockets and 1/4 in bit sockets
One Kraftform Kompakt A VDE 712 i adapter blade (1/4 in external hexagon to 9 mm external hexagon) for 1/4 in sockets and bit sockets
VDE blades (157 mm length) with practical spinning function, anti-roll protection and Take it easy tool finder: color coding by profile and laser-engraved size indication
9 Zyklop sockets with 2-component insulation (yellow insulation core, which becomes visible if the outer red VDE insulation layer is damaged)
Space-saving and safe storage in a textile box, which can also be docked onto the Wera 2go system
Includes (1) 9 x 115 mm 837 i RA Kraftform Blade-Holding Handle with Ratchet Functionality, (1) 9 x 98 mm 817 VDE Kraftform Blade-Holding Handle, (1) 1/4 In. x 130 mm 410 i VDE A RA VDE-Insulated T-Handle Adapter ScrewDriver with Ratchet functionality for 1/4 In. Sockets, (1) 0.4 x 2.5 x 157 mm Kraftform Kompakt VDE 60 i Take It Easy (05006500001), (1) 1.2 x 6.5 x 157 mm Kraftform Kompakt VDE 60 i Take It Easy (05006505001), (1) 0.6 x 3.5 x 157 mm Kraftform Kompakt VDE 60 iS Take It Easy (05006506001), (1) 0.8 x 4 x 157 mm Kraftform Kompakt VDE 60 iS Take It Easy (05006507001), (1) PH 1 x 157 mm Kraftform Kompakt VDE 62 iS Take It Easy (05006512001), (1) PH 2 x 157 mm Kraftform Kompakt VDE 62 iS Take It Easy (05006513001), (1) PZ 1 x 157 mm Kraftform Kompakt VDE 65 iS Take It Easy (05006526001), (1) PZ 2 x 157 mm Kraftform Kompakt VDE 65 iS Take It Easy (05006527001), (1) TX 15 x 157 mm Kraftform Kompakt VDE 67 iS TORX® Take It Easy (05006540001), (1) TX 20 x 157 mm Kraftform Kompakt VDE 67 iS TORX® Take It Easy (05006541001), (1) TX 25 x 157 mm Kraftform Kompakt VDE 67 iS TORX® Take It Easy (05006542001), (1) 1/4 In. x 154 mm Kraftform Kompakt A VDE 712 i Adapter Blade, Insulated, for 1/4 In. Sockets (05006642001), (1) 5 x 41 mm 8790 A VDE Zyklop Socket, Insulated, with 1/4 In. Drive (05005931001), (1) 5.5 x 41 mm 8790 A VDE Zyklop Socket, Insulated, with 1/4 In. Drive (05005932001), (1) 6 x 41 mm 8790 A VDE Zyklop Socket, Insulated, with 1/4 In. Drive (05005933001), (1) 7 x 41 mm 8790 A VDE Zyklop Socket, Insulated, with 1/4 In. Drive (05005934001), (1) 8 x 41 mm 8790 A VDE Zyklop Socket, Insulated, with 1/4 In. Drive (05005935001), (1) 10 x 41 mm 8790 A VDE Zyklop Socket, Insulated, with 1/4 In. Drive (05005936001), (1) 11 x 41 mm 8790 A VDE Zyklop Socket, Insulated, with 1/4 In. Drive (05005938001), (1) 13 x 41 mm 8790 A VDE Zyklop Socket, Insulated, with 1/4 In. Drive (05005939001), (1) 230 x 105 x 50 mm 9575 Textile box Kraftform Kompakt VDE 24 Allrounder 1, without tools (05136551001)

Specifications

Brand Name
Wera Tools
Assembled Weight (lbs)
2.58
Country of Origin
Czech Republic
Handle Type
Kraftform

MFG Part # (OEM)
05006632001

Package Contents
(1) Kraftform Blade-Holding Handle (1) 817 VDE Kraftform Blade-Holding Handle, (1) 410 i VDE A RA VDE-Insulated T-Handle Adapter Screwdriver, (1) Kraftform Kompakt VDE 60 i, (1) Kraftform Kompakt VDE 60 i, (1) Kraftform Kompakt VDE 60 iS, (1) Kraftform Kompakt VDE 60 iS, (1) Kraftform Kompakt VDE 62 iS, (1) Kraftform Kompakt VDE 62 iS, (1) Kraftform Kompakt VDE 65 iS, (1) Kraftform Kompakt VDE 65 iS, (1) Kraftform Kompakt VDE 67 iS TORX®, (1) Kraftform Kompakt VDE 67 iS TORX®, (1) Kraftform Kompakt VDE 67 iS TORX®, (1) Kraftform Kompakt A VDE 712 i Adapter Blade, (1) 8790 A VDE Zyklop Socket, (1) 8790 A VDE Zyklop Socket, insulated, with 1/4 In. Drive, (1) 8790 A VDE Zyklop Socket, insulated, with 1/4 In. Drive, (1) 8790 A VDE Zyklop Socket, insulated, with 1/4 In. drive, (1) 8790 A VDE Zyklop Socket, (1) 8790 A VDE Zyklop Socket, (1) 11 8790 A VDE Zyklop Socket, (1) 8790 A VDE Zyklop Socket, (1) 9575 Textile box Kraftform Kompakt VDE 24 Allrounder 1, Without tools

Product Condition
New

Restrictions
CA Prop 65

UPC
4013288234148

Warranty Type
No Manufacturer's Warranty
Weight (lbs)
2.58
